N10086302 Screw
€0.40 excl. VAT
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

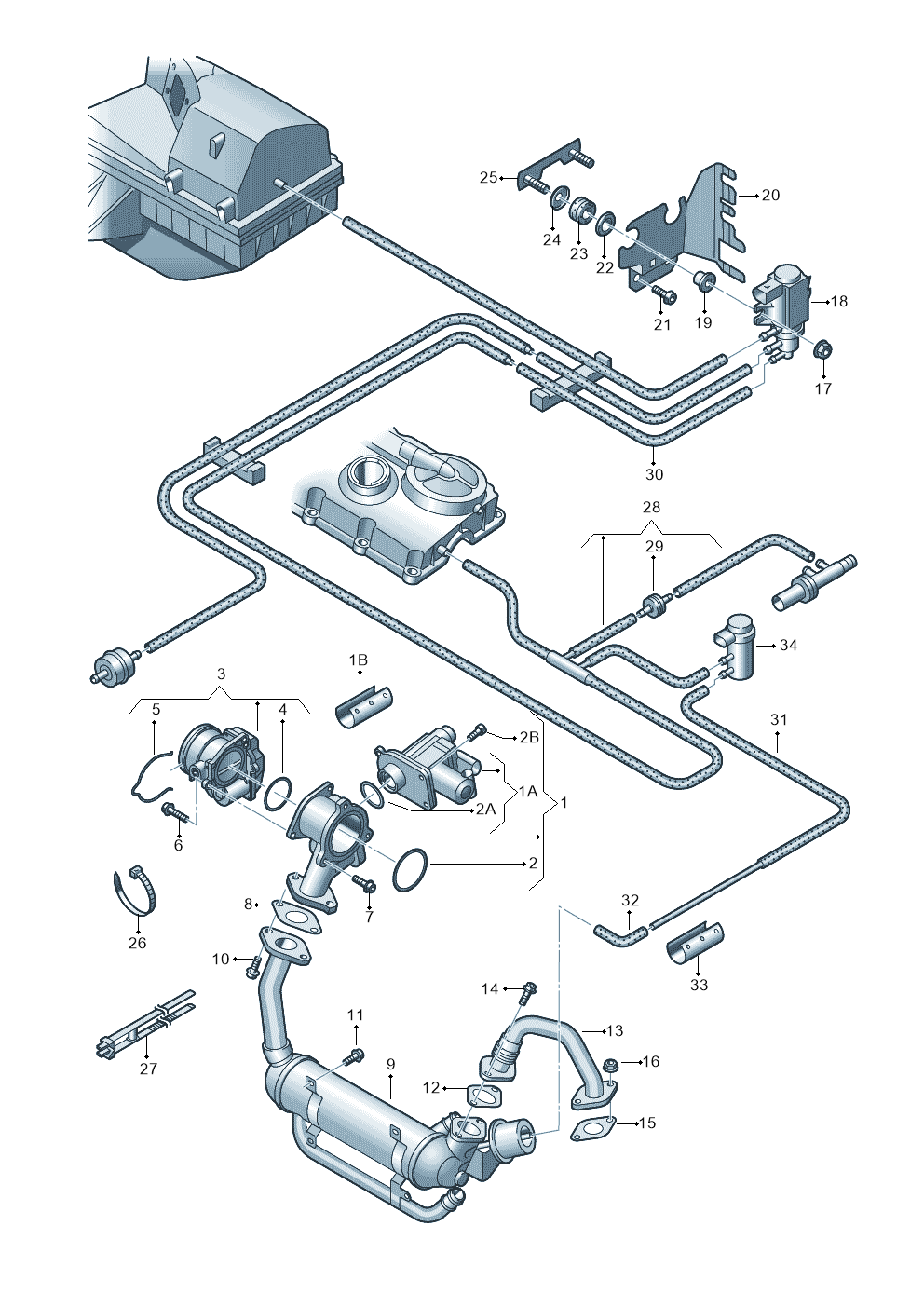

38 vehiclesScrew — locate Screw in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly36
- 1Valve 03G131501D
- 1AValve 03G131502
- 1BCover 03G131531B
- 2Seal Ring N90927302
- 2ASeal Ring N90062702
- 2BScrew N91084801
- 3Thr Flap 03G128063M
- 4Seal Ring N90521604
- 5Clip 1K0145769C
- 7Screw N10613601
- 8Seal 069131547D
- 9Cooler 03G131512AA
- 10Screw N91048802
- 11Screw N10114802
- 13Pipe 03G131521R
- 15Seal 03G131550
- 16Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 17Collar Nut N0150829
- 18Converter 1K0906627A
- 19Spacer 1K0906435
- 20Retaining 1K0906215S
- 21Screw N10650701
- 22Thrustring 1K0906139A
- 23Grommet 046131887
- 24Thrustring 1K0906139
- 25Plate 046130405
- 26Cable Tie 3W0971838
- 26Cable Tie 3D0971838N
- 27Binder 4A0820199
- 28Hose 03G131055G
- 29Valve 046905291B
- 30Hose 03G131055C
- 31Hose 03G131055Q
- 32Hose 03G131055J
- 33Heat Insul 03G131531F
- 34Valve 1K0906283A
Vehicle fitment table39
Europe (32)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALTEA 07> | 2006- | 7, 24 | 3 | ||
| Audi A4/S4/Av./qu. 05> | 2005- | 35, 15 | 4 | T1K | |
| JETTA 06> | 2005- | 24, 7 | 2 | ||
| LEON 06> | 2005- | 7, 24 | 3 | ||
| Touareg | 2005-2006 | 8 | 3 | TF7 | |
| TOLEDO 05> | 2004- | 7, 24 | 3 | ||
| ALTEA | 2004-2006 | 7, 24 | 3 | ||
| Phaeton (lang) | 2003-2006 | 5, 8 | 27 | MW4 | |
| Touareg | 2003-2005 | 8 | 3 | TF7 | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 35 | 4 | T5T | |
| PASSAT/4MOTION/W8 | 2002-2005 | 5, 35 | 29 | ||
| SUPERB 02> | 2001- | 13, 7 | 1 | T7F | |
| Audi A4/S4/Av./qu. | 2001-2004 | 35 | 4 | T5T | |
| Audi A6/Wagon/quattro | 2001-2004 | 35 | 4 | T1K | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 12 | 3 | ||
| Passat/4Motion/W8 | 2000-2002 | 5 | 29 | ||
| Audi A8 quattro | 1999-2002 | 15, 35 | 6 | ||
| Audi A4/Avant | 1999-2001 | 35 | 4 | ||
| Audi A4/Av.qu. | 1999-2001 | 35 | 4 | ||
| AUDI A8 | 1998-2002 | 35 | 4 | ||
| Audi A6/Avant | 1997-2001 | 35 | 4 | ||
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 35 | 4 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 35 | 4 | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 35 | 4 | ||
| OCTAVIA/COMBI/4X4 | 1996-2000 | 11, 12 | 7 | ||
| CADDY PICKUP | 1996-2000 | 9, 6 | X | ||
| Audi A8 | 1996-1998 | 35 | 4 | ||
| Audi A8 qu. | 1996-1998 | 35 | 4 | ||
| PICK UP | 1995-2001 | 9, 6, 2 | X | ||
| FELICIA | 1994-2001 | 9, 2 | X | ||
| Favorit/Forman/Pickup | 1987-1995 | 15 | X | ||
| Skoda 105/.. | 1976-1989 | 12, 26 | 18 | 16 |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 24 | 2 | ||
| AUDI A4 "CN."06> | 2005- | 25, 24 | 2 | ||
| Jetta "USA"05> | 2005- | 7, 24 | 3 | ||
| Golf 'R32' n. "USA" | 2004-2004 | 25 | 2 | ||
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 25 | 2 | BKB | |
| AUDI A6L CHINA | 1999-2005 | 35 | 4 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| JETTA (FAW) 91> | 1991- | 1 | BJG,BJT |
Diagrams & fitment data powered by oemdiagrams.com
Screw is fitted on: ALTEA 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Touareg 2005-2006; TOLEDO 05> 2004-; ALTEA 2004-2006; Phaeton (lang) 2003-2006; Touareg 2003-2005; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; OCTAVIA/COMBI/4X4 01> 2000-; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; AUDI A8 1998-2002; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; OCTAVIA/COMBI/4X4 1996-2000; CADDY PICKUP 1996-2000; Audi A8 1996-1998; Audi A8 qu. 1996-1998; PICK UP 1995-2001; FELICIA 1994-2001; Favorit/Forman/Pickup 1987-1995; Skoda 105/.. 1976-1989; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; Jetta "USA"05> 2005-; Golf 'R32' n. "USA" 2004-2004; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005.
