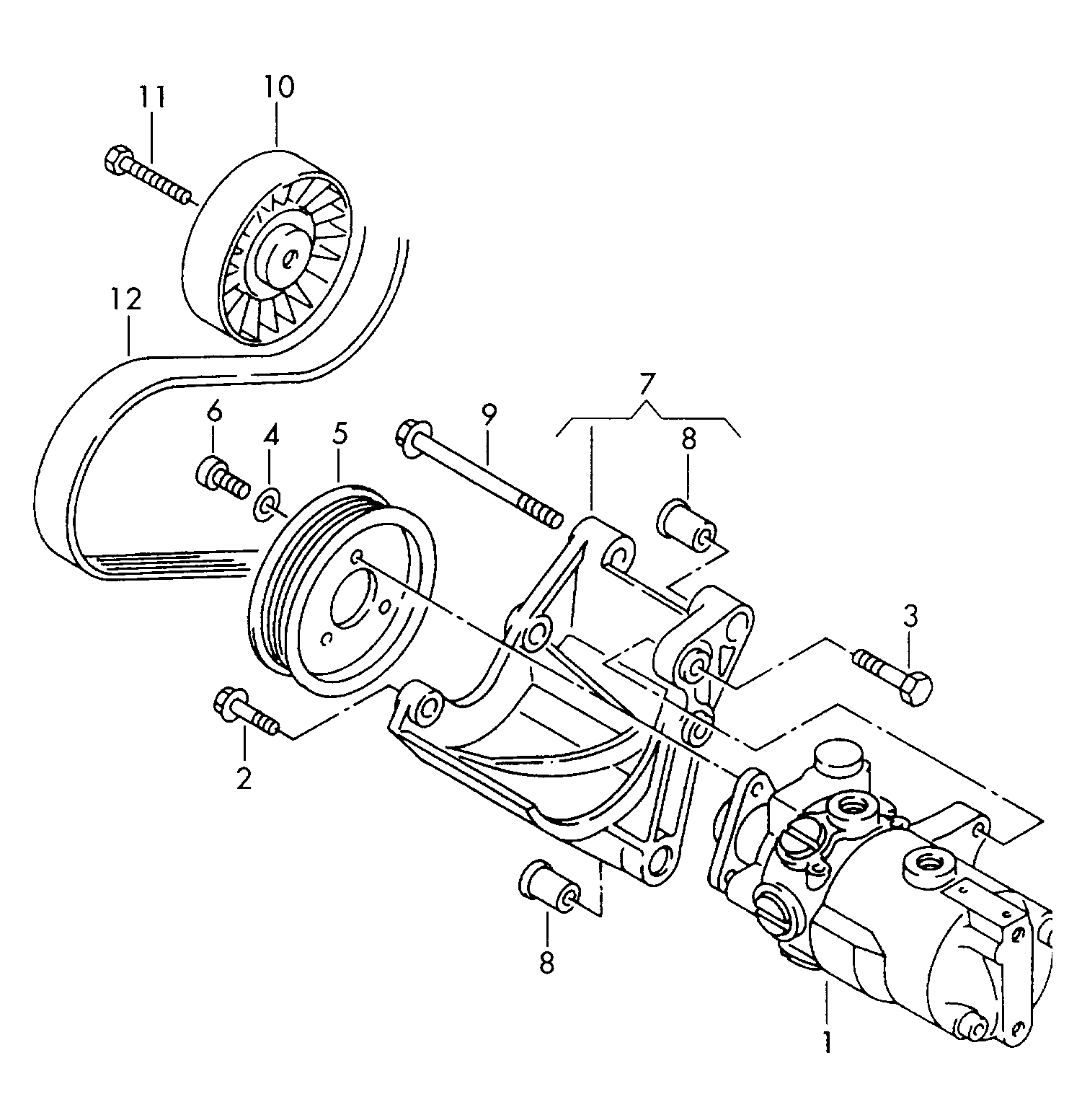

Hexagon Bolt exploded parts diagram — LT, LT 4X4 · 2003-2006, position 9 — LT, LT 4X4 · 2003-2006 · position 9Full diagram ↓

N10102803

N10102803 Hexagon Bolt

Name: N10102803 Hexagon Bolt
Brand: SEAT
SKU: N10102803
Price: 2.78 EUR
Availability: InStock

€2.78

incl. 21% VAT

€2.30 excl. VAT

This is a catalog item (special order). Delivery time may vary.

Availability: Available to order

Quantity:

Special order item. Delivery time may vary.

About This Part

Available for Purchase

This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

59 vehicles

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly8

Vehicle fitment table59

Europe (41)

Vehicle	Years	Pos.	Qty	Remark	PR
LT, LT 4X4	2003-2006	9	2		MP8,MU6,MU9
GOLF CABRIO	2002-2002	27	3		M60
Jetta Wagon	2001-2001	25	2
AUDI A2	2000-2005	12
CORDOBA/VARIO	1999-2002	28	X
IBIZA	1999-2002	28	X
POLO CLASSIC/VARIANT	1999-2001	28	X
GOLF CABRIO	1998-2001	27	3		G0B,G0C,G0E,MR3,MV9,M11,M59,M60,M66,M67,M8M,M91
Golf	1998-2000	25	2
LT, LT 4X4	1996-2003	9	2
TRANSPORTER SYNCRO	1996-2003	17	2
AUDI A3/S3/QUATTRO	1996-2000	25	2
OCTAVIA/COMBI/4X4	1996-2000	25	2
GOLF VAR./VENTO	1996-1999	28	3	AFT,1Y,AAZ,
POLO CLASSIC/VARIANT	1996-1999	28	3	AFT,1F,AEY,
TOLEDO SEAT MOD.97>99	1996-1999	4	3
Golf	1996-1997	28	3	AFT,1Y,AEX,
Transporter 96	1996-1996	17	2
CADDY-KOMBI/KASTEN	1995-2003	9, 28	3	1F,1Y,AEY,
INCA (SEAT-VAN)	1995-2003	9, 28	3	1F,1Y,AEY,
Polo Classic 96	1995-1996	28	3	AFT,1F,AEY
Golf 96	1995-1996	28	3	AEK,AFT,1Y,
Golf Var./Vento 96	1995-1996	28	3	AEK,AFT,1Y,
TRANSPORTER SYNCRO	1995-1995	17	2
Derby (MEX)	1994-1996	28	1
Golf Cabrio	1994-1996	27	3
Golf/Ecomatic 95	1994-1995	28	3	AAM,ABS,1Y,
Golf Var./Vento 95	1994-1995	28	3	AAM,ABS,ADY,
Jetta GLX 94	1993-1994	28	3	AAM,ABS,2E,
Ibiza/Cordoba (SEAT)	1992-1996	28	1	ABS,2E,ADZ,
Transporter syncro	1992-1995	17, 16	2
TOLEDO SEAT	1991-1996	4		M8X98
GOLF/Ecomatic	1991-1994	28	3	AAM,ABS,2E,
Jetta	1989-1991	7	3
Jetta 89	1988-1989	7	3
GOLF,JETTA (MEX)	1987-1992	7	1
Jetta 88	1987-1988	7	3
Jetta 87	1986-1987	7	3
Golf/Jetta syn, Rallye	1985-1991	4	3
Jetta 86	1985-1986	7	1
Jetta 85	1984-1985	7	3

Other markets (17)

Vehicle	Years	Pos.	Qty	Remark
Golf BR/US	1999-2001	25	2
Eurovan	1998-2003	17	2
Golf Cabrio "USA","Mex"99>02	1998-2002	27	3
Eurovan 98	1997-1998	17	2
POLO CLASS./PL. "ZA"	1996-2003	28	3	AFX,AGY
Golf/Jetta "USA","Mex"97>99	1996-1998	27	1	ADC,ADD,AAZ,
Eurovan	1996-1997	17	2
Golf Cabrio "USA","MEX"96>99	1995-1998	27	3
Eurovan F>>70-T 96	1995-1995	17	2
Eurovan 95	1994-1995	17, 16	2
Golf/Jetta "USA","MEX"93>96	1992-1996	27	1	AAZ,ABA,ACC
JETTA (FAW) 91>	1991-	7	3
Eurovan	1991-1994	17, 16	2
Golf/Jetta "USA","MEX"89>92	1988-1992	7	1
Vanagon	1987-1992	12	1
Vanagon syncro	1985-1992	12	1
Vanagon	1985-1987	12	1

Platform / generic diagrams (1)

Vehicle	Years	Pos.	Qty	Remark	PR
6K0 platform		28	X	AKL,AGR,AGP
