N10246603 Hex Collared Bolt
€1.00 excl. VAT
- N10246603This pageNot stocked
Aug 2008 - N10246610Discontinued
Mar 2026
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

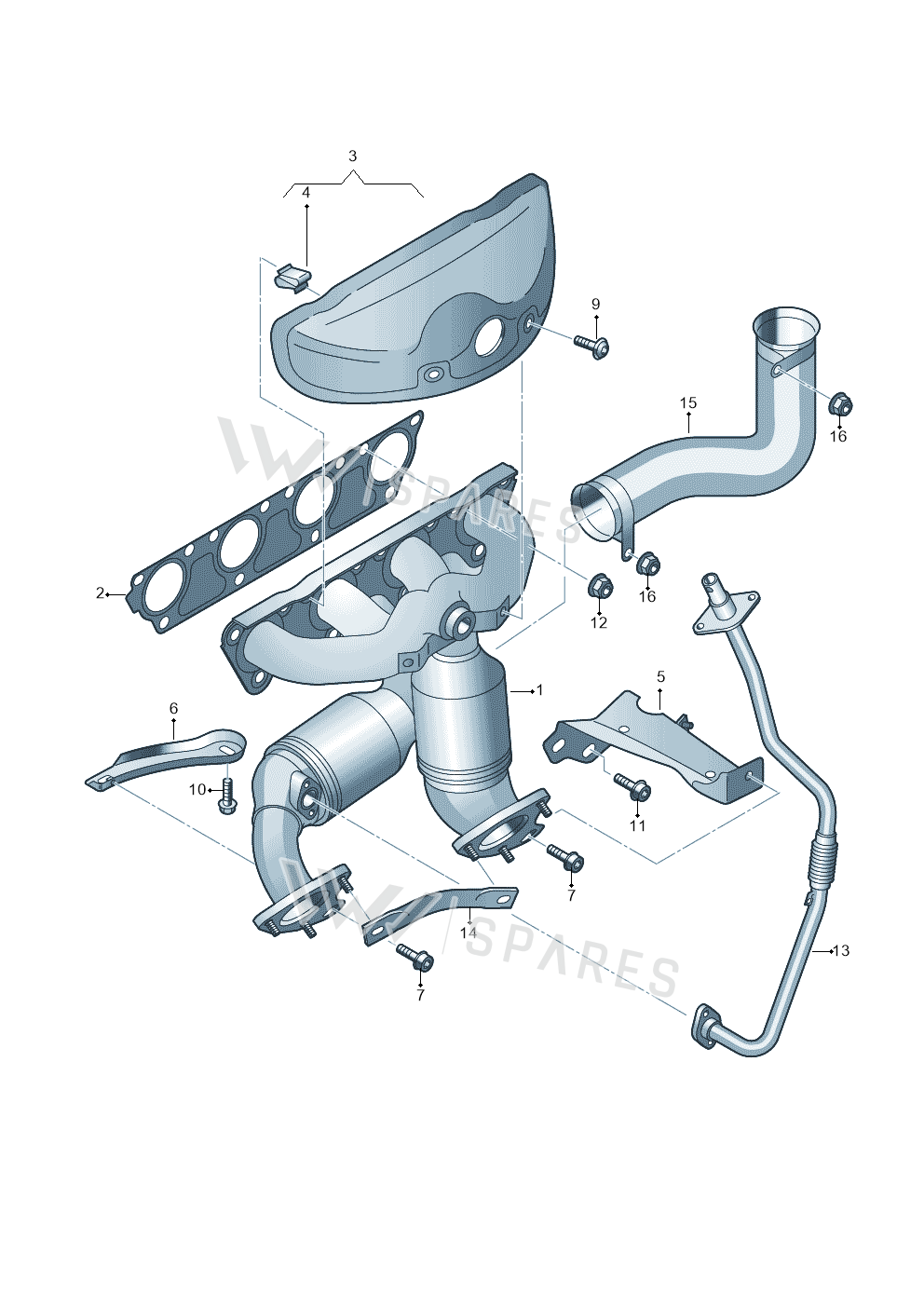

19 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Manifold 06F253052X
- 1Manifold 06F253031RX
- 2Seal 06B253039E
- 3Heat Sh 06F253042A
- 3Heat Sh 06F253042B
- 4Clip 06F253080
- 5BracketRight06F253197D
- 6BracketLeft06F253197B
- 6BracketLeft06F253197A
- 7Screw N10225401
- 9Screw N10248001
- 10Bolt N10268503
- 11Screw N10412001
- 12Collar Nut N90200201
- 14Bracket 06F253197E
- 15Air Channel 06F119362B
- 16Collar Nut N01508213
Vehicle fitment table19
Europe (16)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TOURAN | 2003-2005 | 10 | 1 | |
| AROSA | 2003-2004 | 16 | 3 | G0C |
| Jetta/Wagon | 2002-2006 | 27 | 1 | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 27 | 1 | |
| Jetta Wagon 02 | 2001-2002 | 27 | 1 | |
| Jetta Wagon | 2001-2001 | 27 | 1 | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 27 | 1 | G0C |
| AUDI A2 | 2000-2005 | 8 | X | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 27 | 1 | |
| POLO | 1999-2001 | 16 | 3 | |
| LUPO/3L TDI | 1998-2003 | 16 | 3 | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 27 | 1 | |
| Golf | 1998-2000 | 27 | 1 | |
| AROSA | 1997-2003 | 16 | 3 | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 27 | 1 | |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 27 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| BORA-GP-FAW 07> | 2006- | 4 | 7 | |
| BORA (FAW) | 2001-2006 | 4 | 7 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 1J0 platform | 4, 27 | 7 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: TOURAN 2003-2005; AROSA 2003-2004; Jetta/Wagon 2002-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A2 2000-2005; AUDI A3/S3/QUATTRO 2000-2003; POLO 1999-2001; LUPO/3L TDI 1998-2003; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AROSA 1997-2003; AUDI A3/S3/QUATTRO 1996-2000; OCTAVIA/COMBI/4X4 1996-2000; BORA-GP-FAW 07> 2006-; BORA (FAW) 2001-2006; 1J0 platform.
