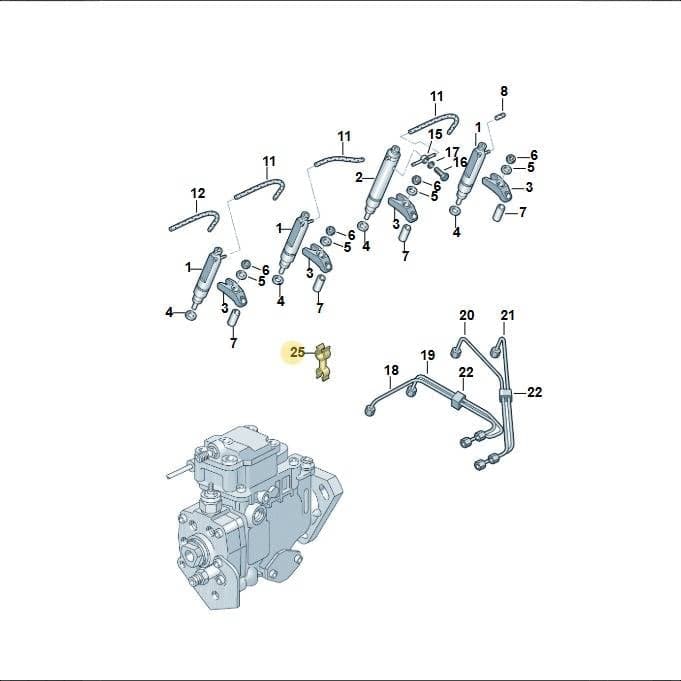

Number 25 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N10255301. This bolt is designed with a cylindrical head and an internal hexagonal drive, ensuring secure fastening in various automotive applications. It measures 0.033m in length, 0.01m in width, and 0.008m in height. Genuine OEM socket head bolts are manufactured with precise tolerances for reliable torque and long-lasting performance.
Technical details
- Category
- Fuel System
- Country of origin
- Czech Republic
- Customs (HS) code
- 73269098
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.3 × 1 × 0.8 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
32 vehiclesDouble Clip — locate N10255301 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
