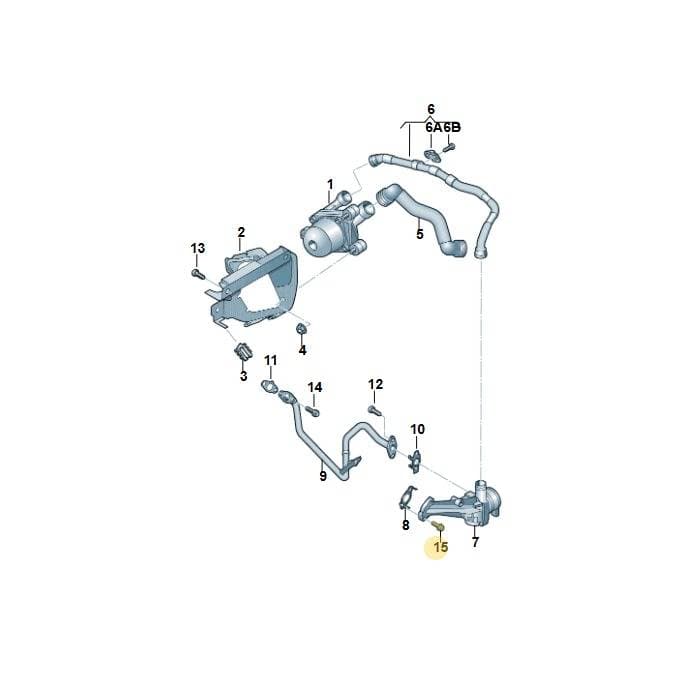

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Head Bolt, part number N10285602. This bolt fastens components securely using its hexagonal head, which is designed to be turned with a wrench. It is located in the engine cooling system assembly. Genuine OEM bolts provide the correct thread pitch and material strength for reliable and safe component attachment.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.2 × 1.5 × 1.5 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
45 vehiclesHexagon Head Bolt (combi) — locate N10285602 Volkswagen Hexagon Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Oil Pump 06E115105G
- 2Seal Ring 079103121AD
- 3Seal Ring N90039603
- 4Screw N10612801
- 7Bracket 06E115405C
- 8Seal 06E115446
- 9Filterelem 06E115562A
- 10Cover 06E115433
- 11Collar Nut WHT000404
- 11Screw N91052802
- 13Oil Cooler 06E117021G
- 14Seal 06E117070D
- 15Bolt N10347103
- 15Screw N90684701
- 15Screw N90684707
- 16Tube 06E115630A
- 17Seal Ring 034115427B
- 18Oil Dipsti 06E115611E
- 19Seal Ring N90813802
- 20Bolt N10405604
- 20Bolt N10405602
