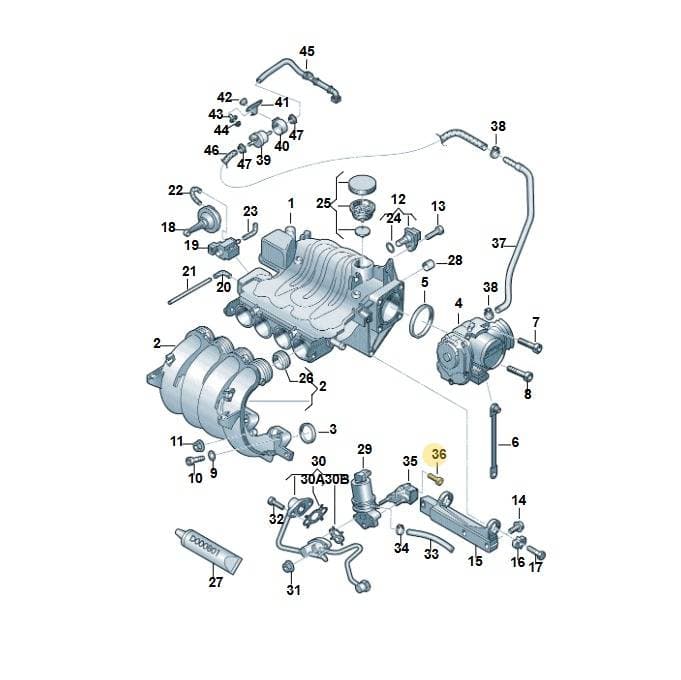

Number 36 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bracket, part number N10323102. This bracket is used to mount, support, or attach other parts within the vehicle. It is located at position 36 in the diagram. The bracket is made of metal. Genuine OEM brackets ensure precise alignment and secure mounting, critical for the proper function of attached components.
Technical details
- Category
- Fuel System
- Country of origin
- Spain
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.6 × 1.3 × 1.3 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
36 vehiclesScrew — locate N10323102 Volkswagen Bracket | 36 in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(24)
- 1Housing 06A121111
- 1Housing 06A121111A
- 2Screw N10126603
- 2Screw N10158202
- 3Connection 06A121114
- 7Seal Ring 06A121149
- 8Seal RingRight037121688
- 10Spring 032121142
- 12Seal Ring N90316802
- 14Adapter 1J0121619G
- 15Part 1J0121253AD
- 15Radiator 1J0121253N
- 16Part 1J0806155E
- 16Bracket 1J0806155D
- 17Bracket 1J0806157F
- 18Screw N90542603
- 19Part 8L0805596A
- 20Container 1J0121403B
- 21Cover 1J0121321B
- 22Seal Ring 1H0121687A
- 23Part 1J0121422
- 24Screw N10003203
- 26Cool Add G012A8FM8
- 26Cool Add G012A8FM1
Diagrams & fitment data powered by oemdiagrams.com
N10323102 Volkswagen Bracket | 36 is fitted on: AUDI A3/S3/QUATTRO 1996-2000; AUDI A3/S3/QUATTRO 2000-2003; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A4/S4 Cabrio./qu. 2002-2006; Audi A8/S8/qu. lang 2003-2007; Audi A3/S3/quattro 2005-2007; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; TOLEDO/LEON/LEON-4 1998-2001; CORDOBA/VARIO 1999-2002; IBIZA 2001-2005; TOLEDO/LEON/LEON-4 2001-2006; CORDOBA/SE241 2002-2005; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; ALTEA 07> 2006-; Golf 1998-2000; Jetta Wagon 2001-2001; Passat/4Motion/W8 2000-2002; POLO CLASSIC/VARIANT 1999-2001; New Beetle 2001-2005; POLO "CN"02>06 2002-2006; New Beetle Cabrio. 2003-2005; POLO CLASSIC "CN"03>06 2003-2006; TOURAN (SVW) "CN"04> 2004-; POLO CLASSIC (AUS) "CN"03>06 2003-2006; Lavida 2008-2013; FABIA/COMBI 1999-2004; OCTAVIA/COMBI/4X4 01> 2000-; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; OCTAVIA "CN."07> 2007-.
