N10489903 Hex Collared Bolt
€1.40 excl. VAT
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

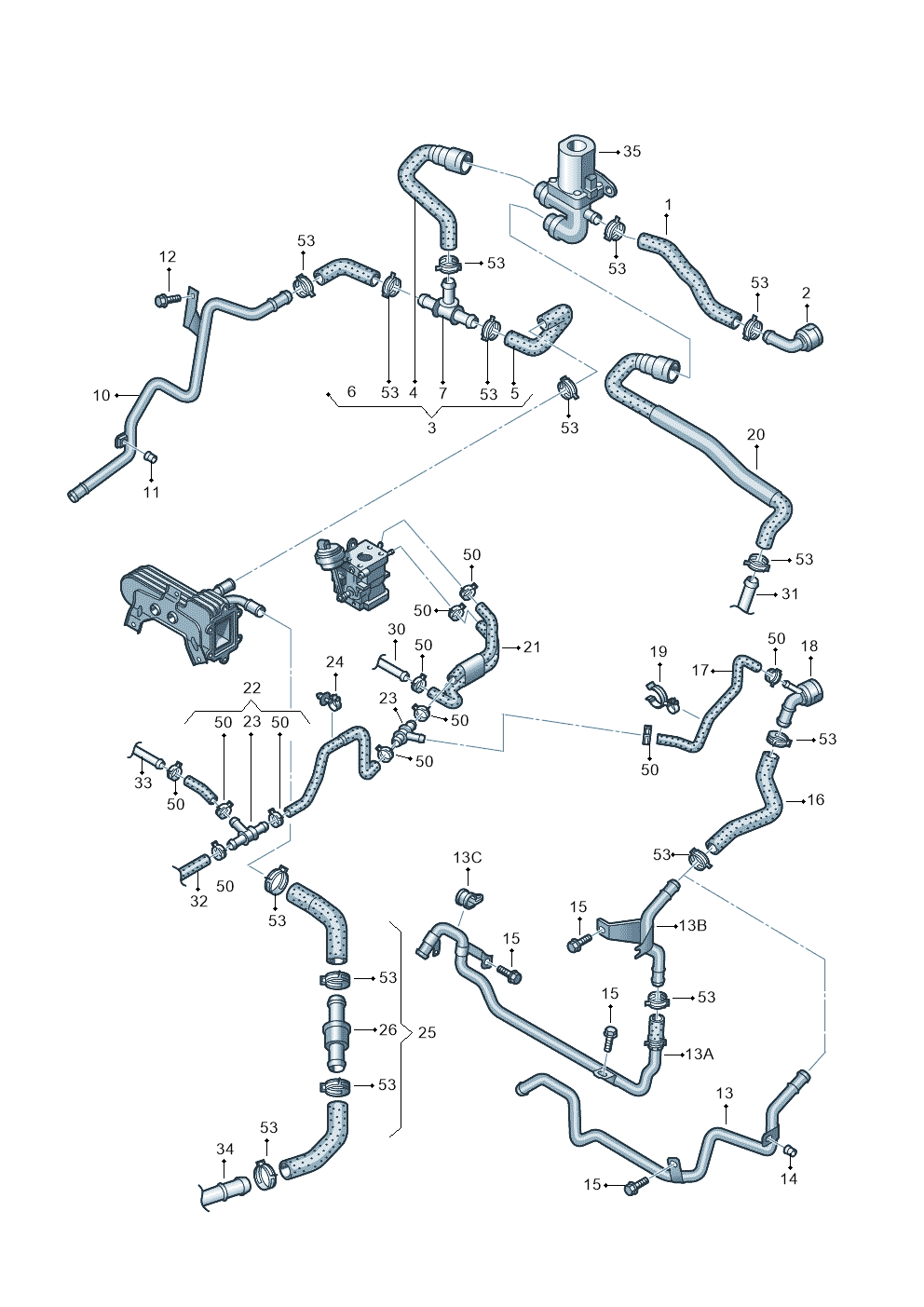

41 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly36
- 1Hose 1K0121073AQ
- 1Hose 1K0121073R
- 2Coupl Piece 1K0122291H
- 2Coupl Piece 1J0122291C
- 3Hose 1K0122157BQ
- 4Part 1K0122449E
- 4Hose 1K0122449H
- 5Hose 1K0122449F
- 5Hose 1K0122449J
- 7Tpiece N90760601
- 10Water Pipe 038121151C
- 10Water Pipe 038121151A
- 11Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 12Bolt N10009104
- 13Water Pipe 03G121151AB
- 13AWater Pipe 03G121151G
- 13BWater Pipe 03G121151H
- 13CClamp N0206254
- 14Collar Nut N90761102
- 16Hose 1K0121157DF
- 17Hose 1K0121447BP
- 18Coupl Piece 1K0122291R
- 18Coupl Piece 1K0122291AL
- 19Retainer 701971787T
- 20Hose 1K0122073DN
- 20Hose 1K0122073CG
- 21Hose 1K0122447CN
- 22Hose 1K0122447CK
- 23Tpiece N90693001
- 24Clip N10436201
- 25Hose 1K0122157EF
- 26Valve 1J0122351
- 50Clamp N90686701
- 52Clamp N90686901
- 53Clamp N90687001
- 54Clamp N90687101
Vehicle fitment table41
Europe (39)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta Vagon 08> | 2008- | 15 | X | D3W | |
| Audi A3 Sportback | 2008-2013 | 15 | 1 | 9M9,T36,9M1,G0R | |
| superb comfort | 2008-2013 | 15 | X | D3W | |
| octavia ambiente | 2008-2013 | 15 | X | D3W | |
| passat estate | 2008-2011 | 37A | 2 | ||
| jetta | 2008-2011 | 15 | X | ||
| EOS 2.0 | 2008-2010 | 9 | 1 | T36 | |
| Touran 1.9 | 2008-2010 | 8 | 1 | ||
| transp. caravelle | 2008-2009 | 7, 19 | 1 | T85 | |
| transp. dropside | 2008-2009 | 7, 19 | 1 | T85 | |
| California Camper | 2008-2009 | 7 | 1 | T85 | |
| GOLF VARIANT 07> | 2007- | 15, 12 | X | D3W | |
| GOLF PLUS 08> | 2007- | 8 | 1 | ||
| Passat/4Motion 08 | 2007- | 37A | 2 | ||
| TRANSPORTER GESCHL. 08 | 2007- | 7, 19 | 1 | ||
| TRANSPORTER OFFEN 08 | 2007- | 7, 19 | 1 | ||
| CAMPMOBIL-T5 08 | 2007- | 7 | 1 | ||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 7 | 1 | ||
| EOS-Cabriolet-Coupe | 2006- | 9 | 1 | T36 | |
| JETTA 06> | 2006- | 15, 12 | X | D3W | |
| TOURAN | 2006- | 8 | 1 | ||
| TRANSPORTER/4MOTION 07 | 2006-2007 | 7, 19 | 1 | ||
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 7, 19 | 1 | ||
| CAMPMOBIL (T5) 07 | 2006-2007 | 7 | 1 | ||
| GOLF PLUS 05> | 2005- | 8 | 1 | ||
| JETTA 06> | 2005- | 15, 12 | X | ||
| Passat/4Motion | 2005-2007 | 37A | 2 | ||
| Audi A3/S3/quattro | 2005-2007 | 7 | 1 | ||
| TOURAN | 2005-2006 | 37A, 12 | 2 | ||
| Touareg | 2005-2006 | 7 | 1 | BAC,BLK | T03 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 7, 19 | 1 | ||
| TRANSPORTER 06 | 2005-2006 | 7, 19 | 1 | ||
| CADDY | 2004- | 15 | 1 | ||
| OCTAVIA/COMBI/4X4 04> | 2004- | 15 | X | D3W | |
| CAMPMOBILE(T5) | 2004-2006 | 7 | 1 | ||
| Touareg | 2003-2005 | 7 | 1 | T03 | |
| TOURAN | 2003-2005 | 37A, 38A | 2 | T71 | |
| TRANSPORTER | 2003-2005 | 7, 19 | 1 | ||
| GOLF | 2003-2005 | 15, 19 | X |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 9, 15 | 1 | T36 | |
| Golf/Rabbit | 2005-2007 | 9, 15 | 1 | T36 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Jetta Vagon 08> 2008-; Audi A3 Sportback 2008-2013; superb comfort 2008-2013; octavia ambiente 2008-2013; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; Touran 1.9 2008-2010; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; TOURAN 2006-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; GOLF PLUS 05> 2005-; JETTA 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CADDY 2004-; OCTAVIA/COMBI/4X4 04> 2004-; CAMPMOBILE(T5) 2004-2006; Touareg 2003-2005; TOURAN 2003-2005; TRANSPORTER 2003-2005; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
