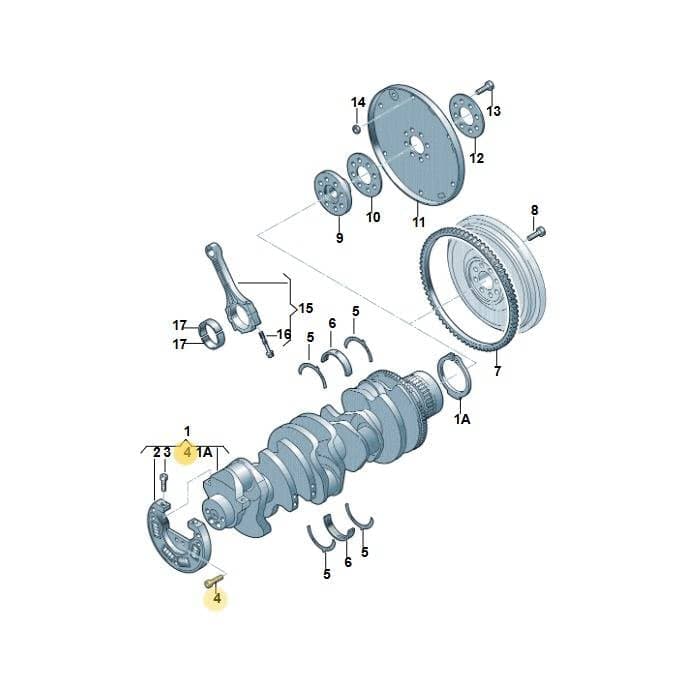

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N10566601. This bolt is used for securing components in the intake system, ensuring a tight seal. It is a socket head bolt with a hexagonal socket drive. Genuine OEM parts are manufactured to exact specifications for reliable performance.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.2 × 1.3 × 1.3 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment

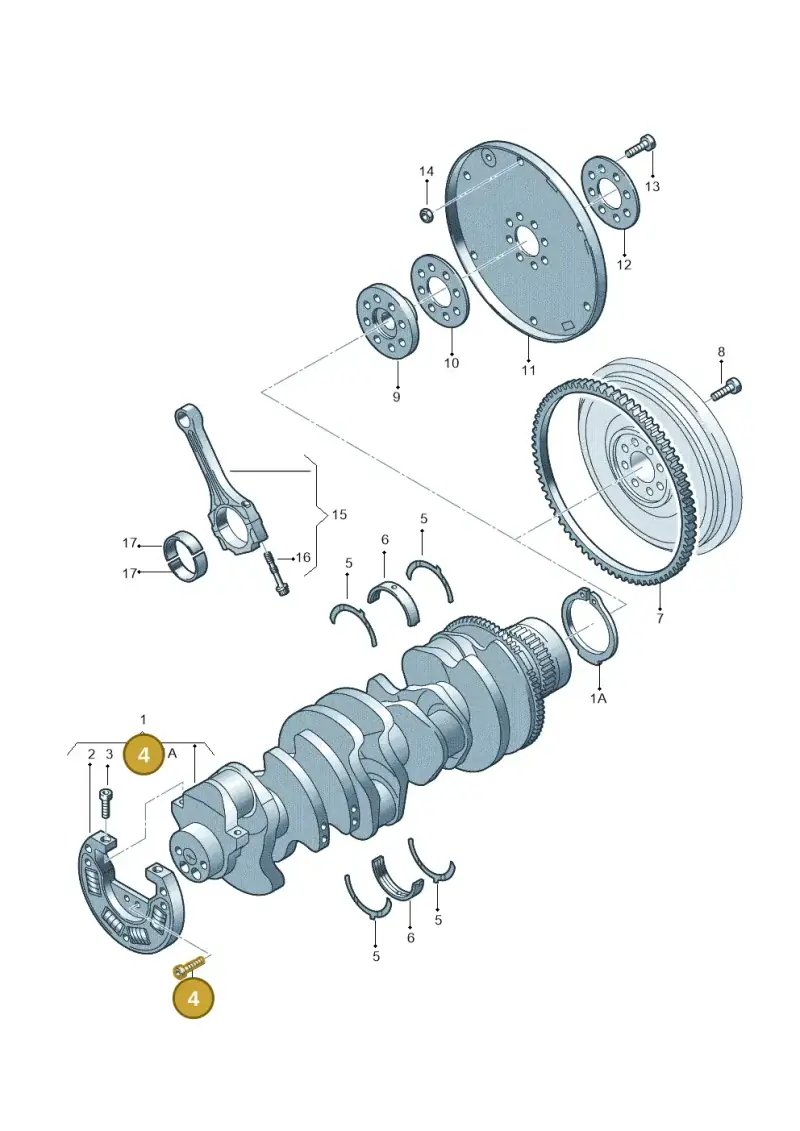

17 vehiclesScrew — locate N10566601 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(18)
- 1Crankshaft 070105019F
- 1ARing N90997701
- 2Damper 070105251C
- 3Screw N10521001
- 5Thrust Pla 070198421
- 6Brg Shell 070105591C
- 6Brg Shell 070105561C
- 7Flywheel 070105266L
- 8Screw N90975601
- 9Bush 070105329A
- 10Shim 035105303A
- 11Clutch Pla 070105323A
- 12Washer 023105301
- 13Bolt N90946201
- 15Con Rod 038105401J
- 16Bolt 045105425
- 17Bearing 038105701B
- 17Bearing 038105701A
Diagrams & fitment data powered by oemdiagrams.com

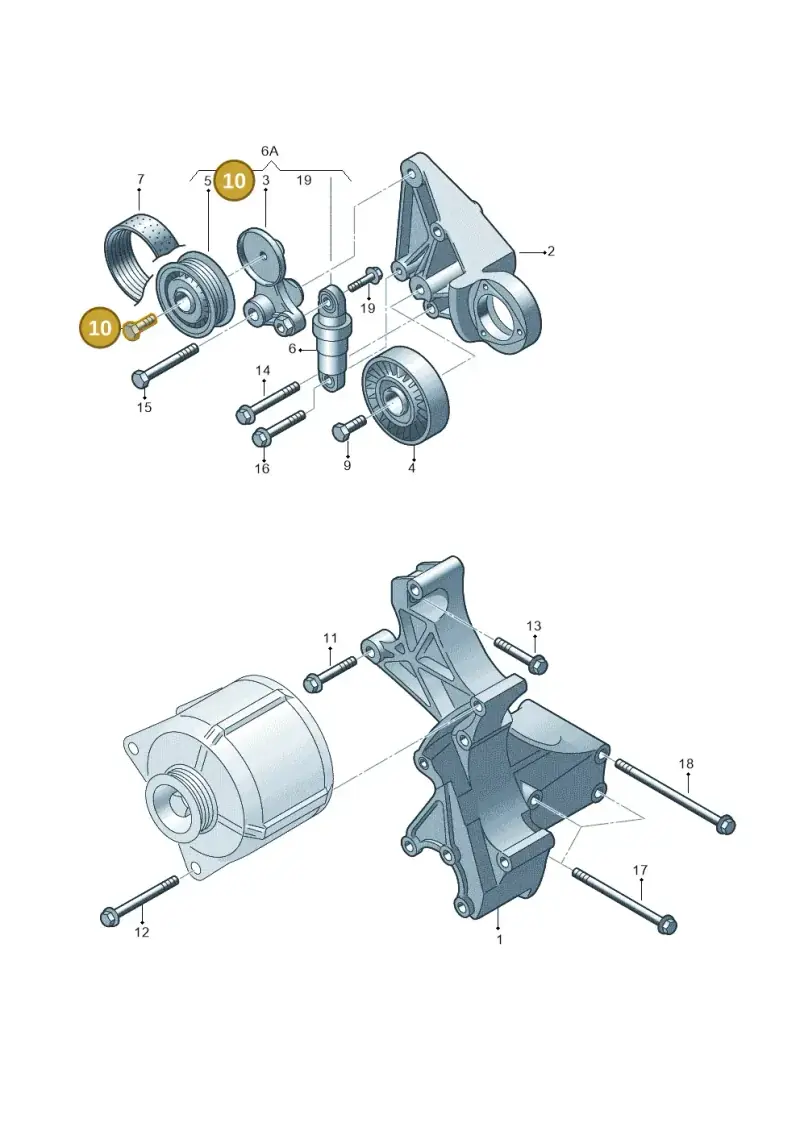

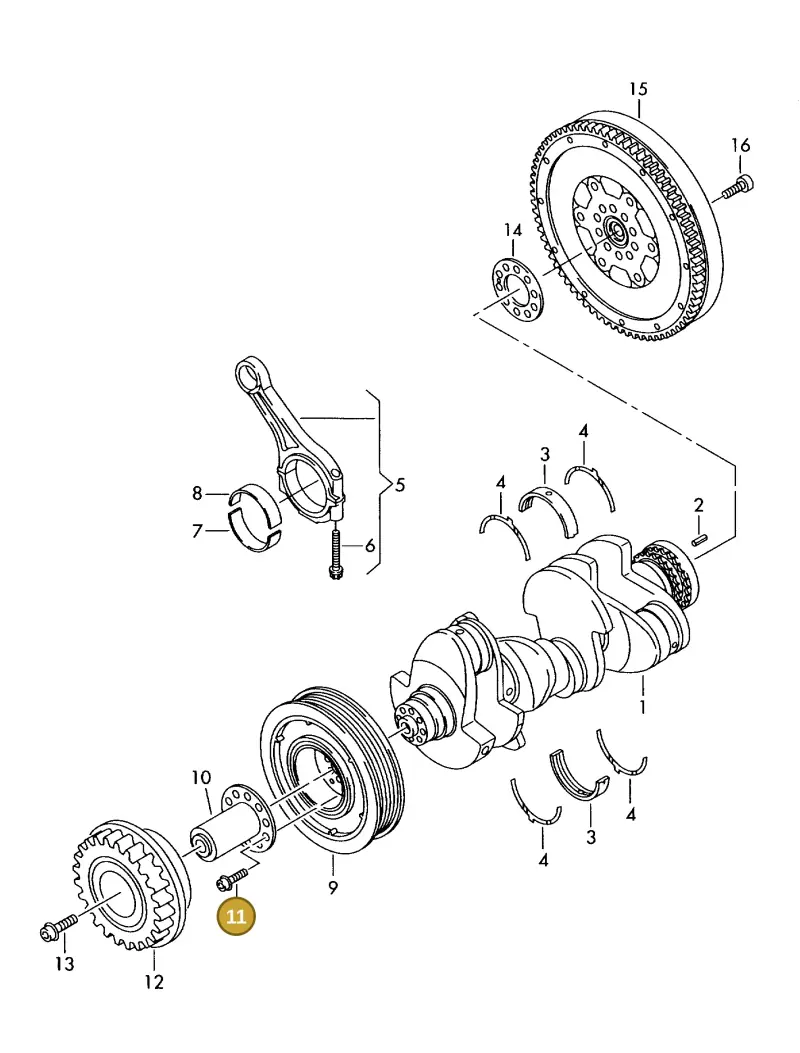

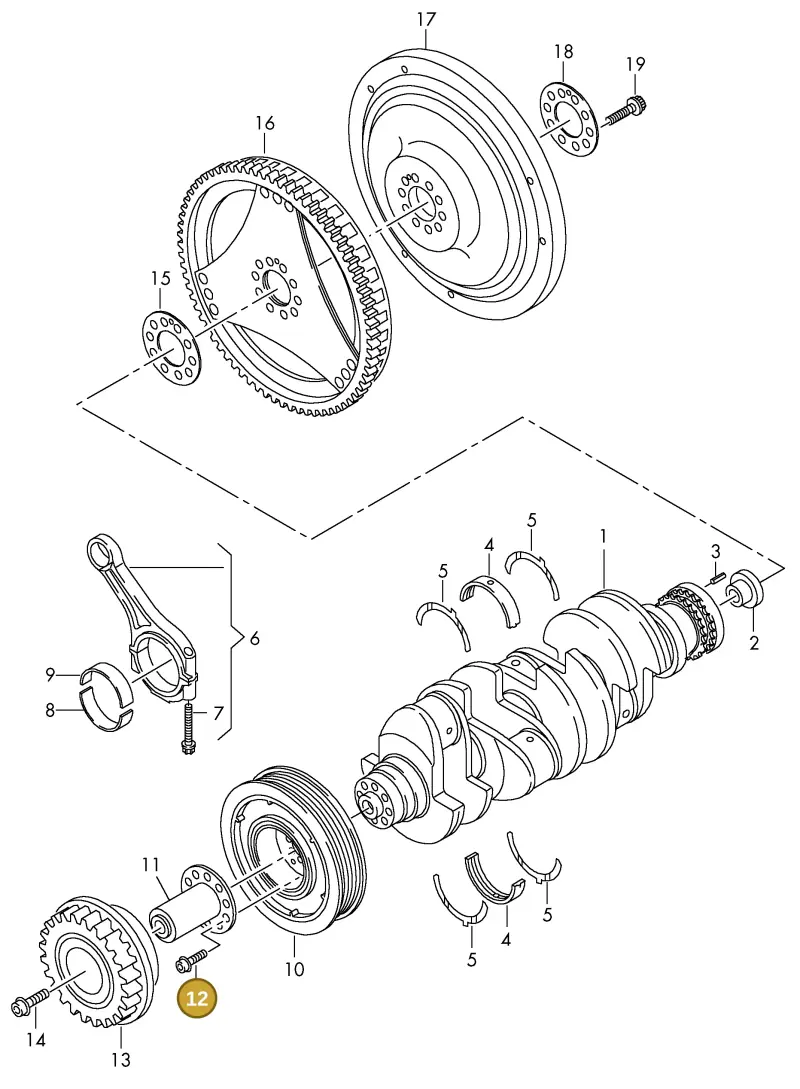

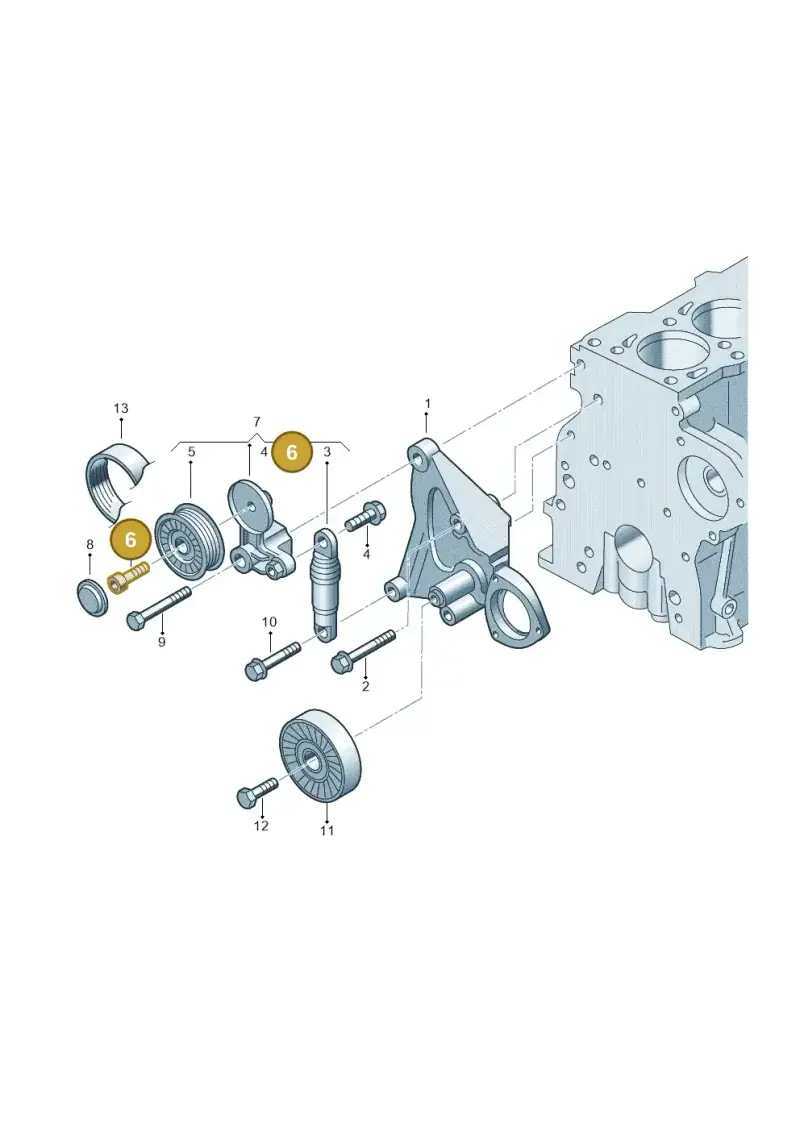

N10566601 Volkswagen Socket Head Bolt | Genuine OEM is fitted on: Touareg 2003-2005; MARINE-MOTOR 02> 2002-; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CRAFTER 06> 2006-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; Touareg 08> 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; Crafter 35 panel 2011-2016.
