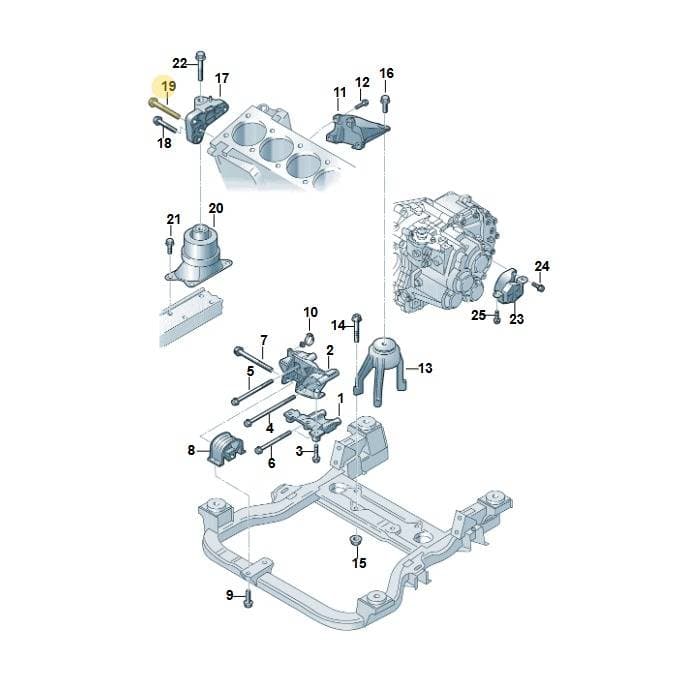

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Head Shoulder Bolt, part number N10570202. This bolt is distinguished by its hexagonal head and an unthreaded shoulder section. The shoulder provides precise alignment and distributes load evenly, making it critical for applications such as engine mounts and subframe connections. The hex head allows for secure tightening. Genuine OEM shoulder bolts ensure exact tolerances for proper component seating and vibration damping.
Technical details
- Category
- Engine
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11 × 2.3 × 2.3 cm
- Shipping weight
- 0.06 kg
Parts diagram & fitment
16 vehiclesBolt Hex Hd With Shoul (combi) — locate N10570202 Volkswagen Hex Head Shoulder Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 5Rubber Bush 191199233
- 6Bolt N10640801
- 7Bolt N91031702
- 7Bolt N10141701
- 8Bolt N90258902
- 10Bolt N10070403
- 10Bolt N10230201
- 10Bolt N10234204
- 11Collar Nut N10261310
- 13AConsole 1GD199273
- 16Screw N0447601
- 20Carrier 1H0199315AA
- 21Bolt N10209603
- 22Bolt N10257501
- 24Rubber Bush 357199381C
- 25Bolt N0195265
- 25Bolt N10045502
- 27Bolt N10195301
- 28Bolt N90553202
- 30Mounting 535199262
Diagrams & fitment data powered by oemdiagrams.com
N10570202 Volkswagen Hex Head Shoulder Bolt | Genuine OEM is fitted on: JETTA (FAW) 91> 1991-; MARINE-MOTOR 02> 2002-; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; Audi A6/S6/Avant/qu. 05> 2004-; AUDI A6L "CN"05> 2005-; AUDI A6 QU.ALLROAD 07> 2006-; Audi R8 08> 2007-; Audi R8 qu. 5.2 2012-2015.
