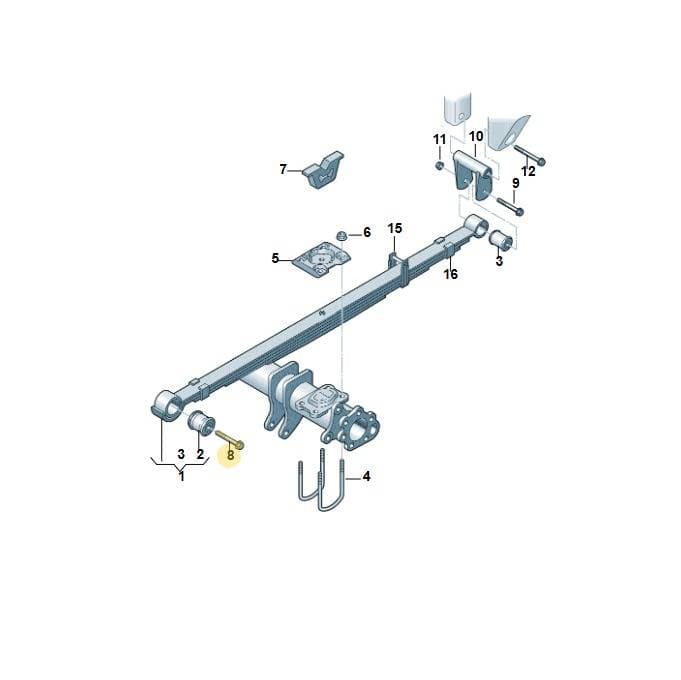

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Collared Bolt, part number N10629501. This collared bolt secures the fan ring on the rear axle, contributing to the cooling system's efficiency. It is located on the rear axle assembly. Made from high-strength steel for reliable fastening.
Technical details
- Category
- Suspension
- Country of origin
- Czech Republic
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 13.8 × 2.7 × 2.7 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
5 vehiclesHex Collared Bolt — locate N10629501 Volkswagen Collared Bolt | Rear Axle in the official exploded view and explore the surrounding assembly.
Parts in this assembly(35)
- 1PartRight420407506E
- 1PartLeft420407505E
- 2Rubber Bush 8E0505185P
- 3Bolt N10428002
- 4Collar Nut N10106402
- 5BracketRight420407458B
- 5BracketLeft420407457B
- 6BracketRight420407458F
- 6BracketLeft420407457F
- 7BracketRight420407458H
- 7BracketLeft420407457H
- 8Bracket 420407457M
- 9Screw N10689301
- 10PartRight420407152L
- 10PartLeft420407151L
- 11Part WHT004898
- 11Ut"hex Nut Self-locking With Washer Hex Nut N90848404
- 12Bolt WHT002262
- 13Washer WHT001676
- 15PartRight420407246G
- 15PartLeft420407245G
- 16Anti-roll 420411309
- 17Bracket 420411031A
- 18Rubber Bush 4D0411327J
- 19Clamp 4D0411336G
- 20Part N10682501
- 20Part N10544903
- 21Coupl Rod 420407465
- 22Bolt N10699901
- 23Bolt N10314506
- 25Wheel Hub 4D0407613E
- 26Seal 4D0407623B
- 27Ball Screw WHT000237A
- 28Bolt 4B0407643A
- 29Wheel Bear 4F0498625B
Diagrams & fitment data powered by oemdiagrams.com

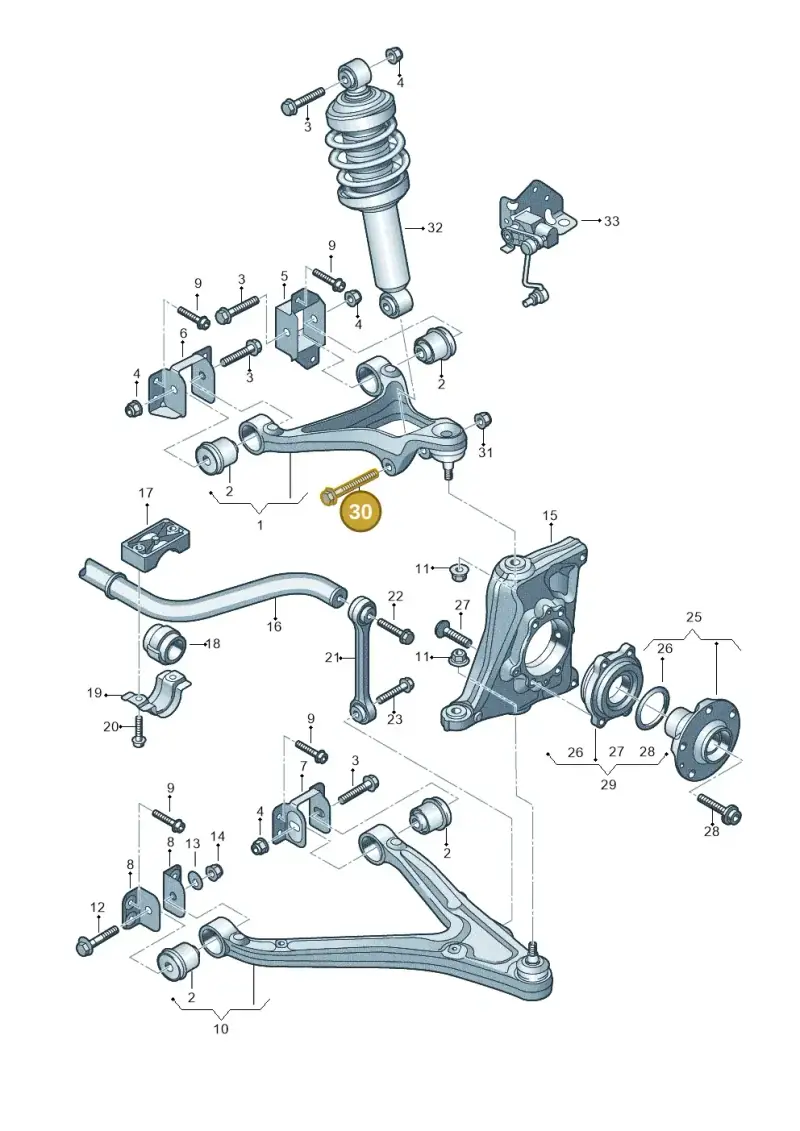

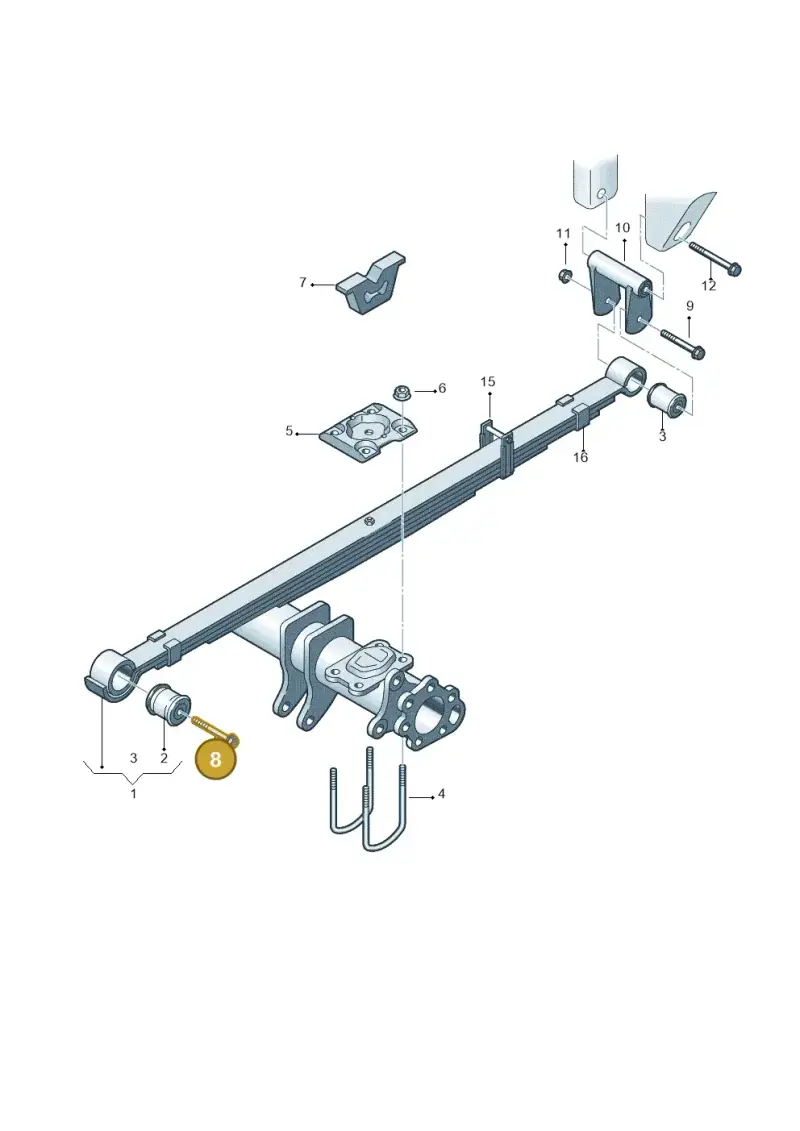

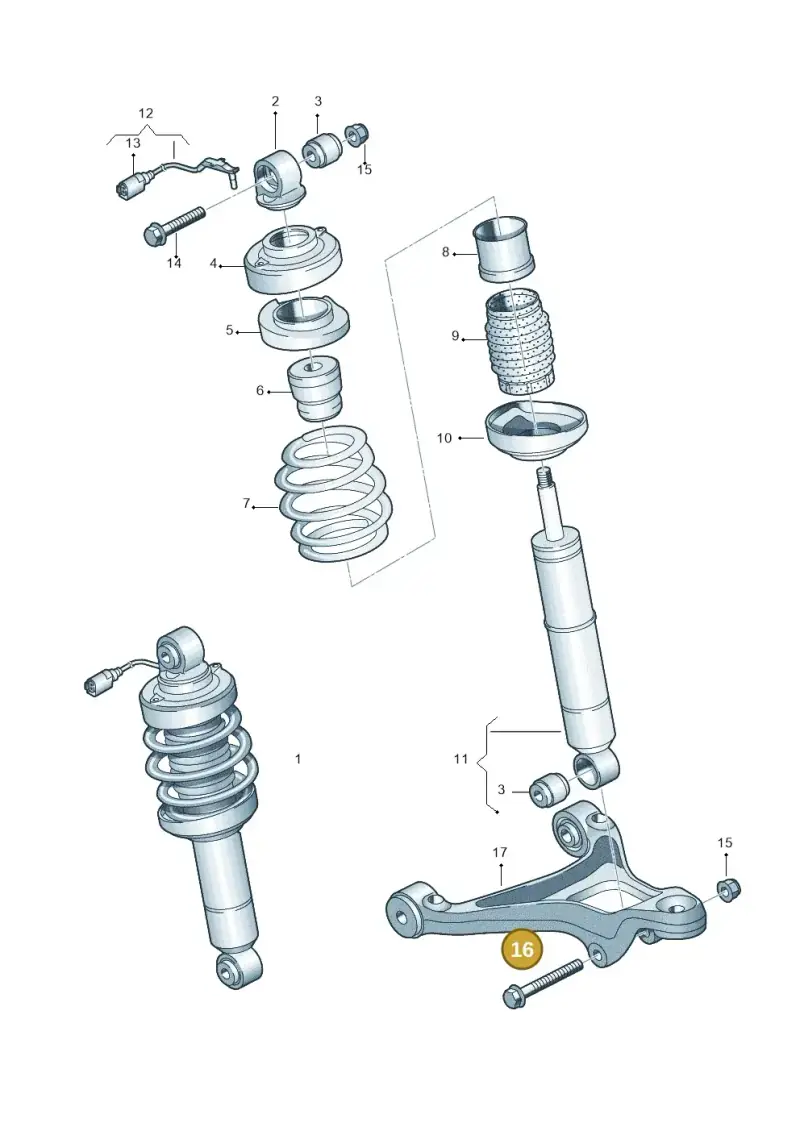

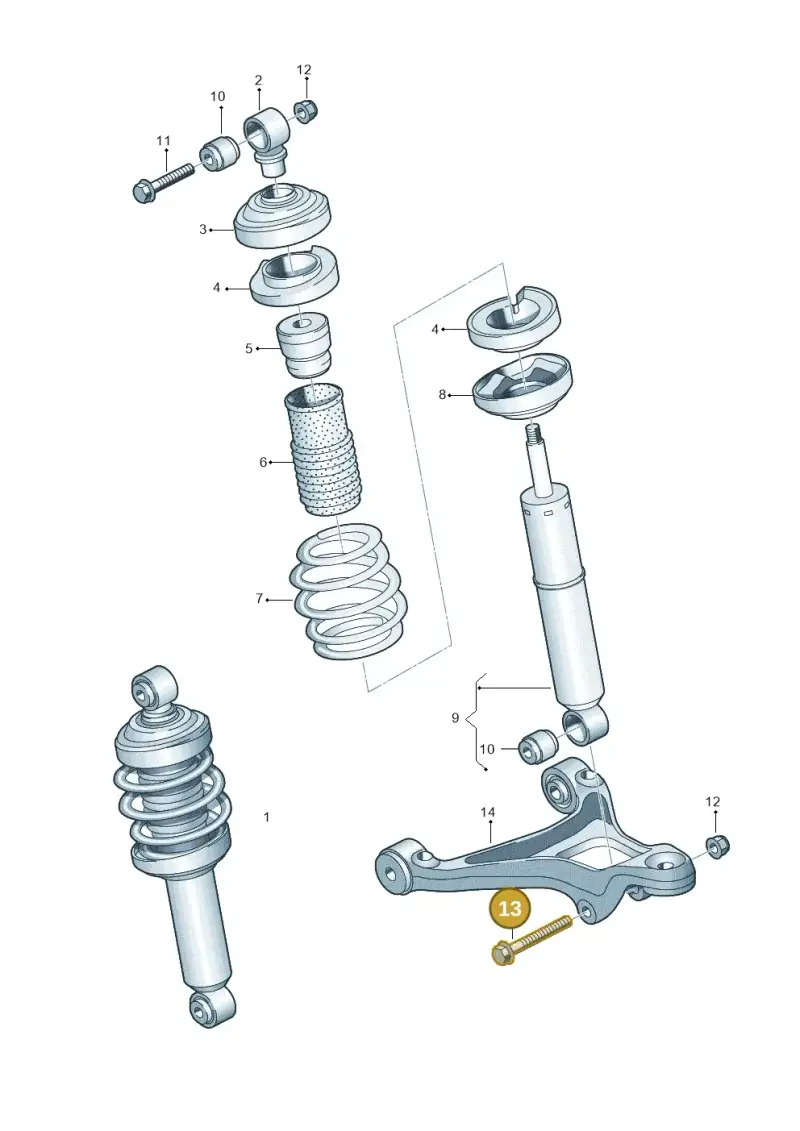

N10629501 Volkswagen Collared Bolt | Rear Axle is fitted on: Audi R8 08> 2007-; Audi R8 qu. 5.2 2012-2015; Amarok twin cab 2009-2012; Amarok twin cab 2012-2016; Amarok twin cab 2016-2022.
