Target · Diagram
Find this reference above

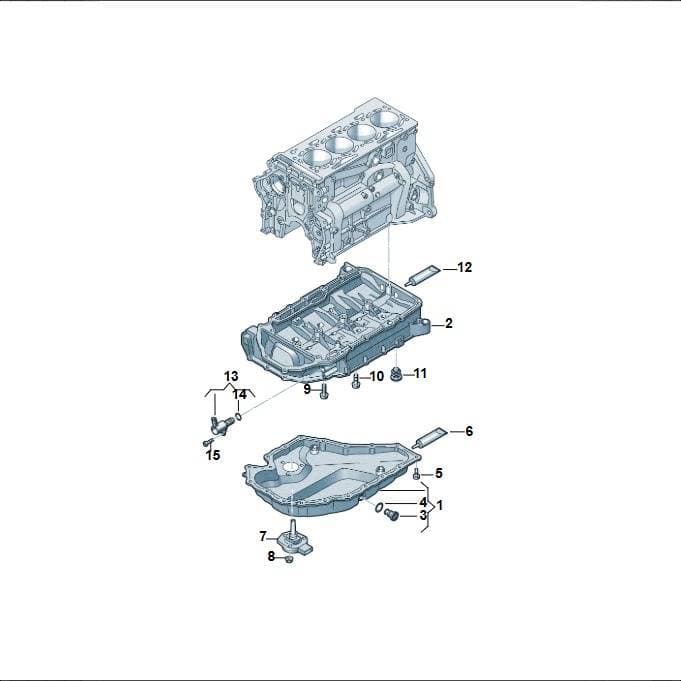

Number 11 marks the part’s position in this exploded view (Skoda Kodiaq (2024-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Hexagon Socket Headbolt, part number N10765501. This bolt secures the oil sump and ventilation components for the engine. It is positioned as item 16 in the diagram. Genuine OEM bolts ensure proper torque and sealing for the oil sump, preventing leaks.
Catalogue entry: SCREW M8X85 ×2.
Fitted with: 06K103603BC OIL SUMP, 06K103138Q INSERT, N10839701 BOLT, N91173601 Screw, N0282222 seal ring, N01508210 COLLAR NUT, N91211201 BOLT, N10766301 SCREW, D174003M2 SEAL, N91168701 Screw.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9.2 × 1.8 × 1.8 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M8x85 mm
- Engine codes
- CNC, CNCC
