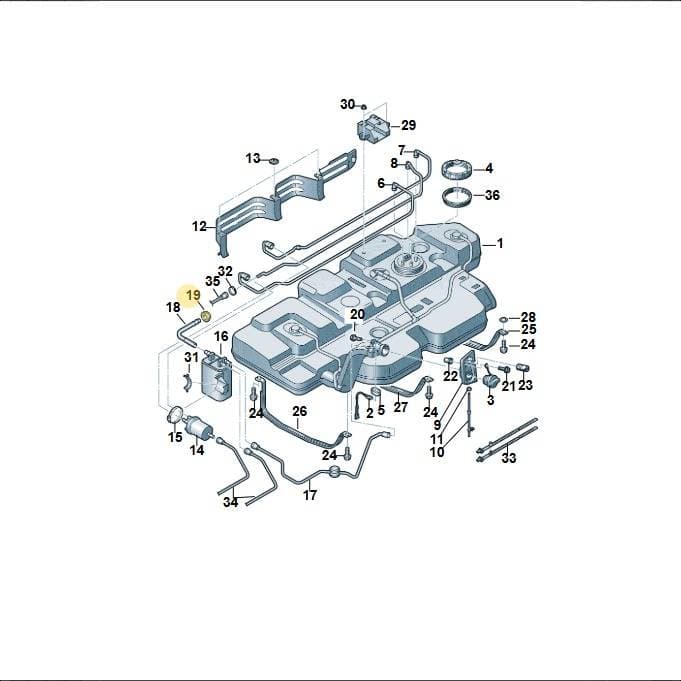

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Grommet, part number N90100401. This is a ring or seal inserted into a hole to protect or insulate a wire or tube passing through it. The diagram shows this part as item 19 in the assembly. Genuine OEM grommets protect wiring and hoses from abrasion and vibration, ensuring system integrity.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3 × 3 × 0.9 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
26 vehiclesGrommet — locate N90100401 Volkswagen Grommet | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(17)
- 1Part 251201075AE
- 1Container 251201075AH
- 2Bracket 251201117
- 4Fuelfiller 251201121D
- 5Clamp N0245223
- 6Retainer 251201131
- 6Retainer 251201131B
- 7Seal 251201139
- 7CFuelfilter 251201129A
- 8CClamp N90561801
- 8DPipe 251201166
- 11Screw N0139649
- 11AUnderlay 251201525
- 13Part 111837219A
- 14Seal 251201557
- 15Rail 251201651A
- 16Bolt N01023820
Diagrams & fitment data powered by oemdiagrams.com
N90100401 Volkswagen Grommet | Genuine OEM is fitted on: Vanagon 1979-1985; Vanagon 1985-1987; Vanagon 1987-1992; LT, LT 4x4 (28-55) 1989-1995; 1J0 platform; TYPE 2 "ZA" 1995-2003; TRANSPORTER 2003-2005; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; Superb Combi 2023-.
