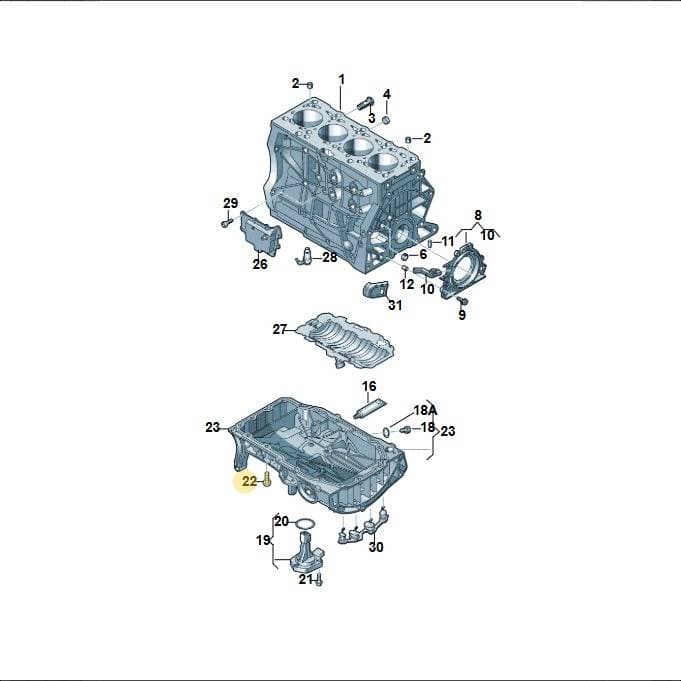

Number 22 marks the part’s position in this exploded view (Skoda Kodiaq (2024-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N90500605. This bolt fastens critical engine components, ensuring secure assembly and reliable operation of the engine. It is located at position 22 in the engine block diagram. Genuine OEM bolts ensure exact fitment and material strength for critical engine applications.
Catalogue entry: SCREW M6X22 ×19.
Fitted with: D176501A1 SEAL, N90288901 PLUG, N10748001 BOLT, 04E103601L OIL SUMP, 04E103601AC OIL SUMP, N90813202 BOLT, N0138158 seal ring, 04E103623D LOCK, 04E103623S LOCK, 04C103161E SEAL, 04E103153B FLANGE, N10672001 SCREW.
Technical details
- Category
- Engine
- Country of origin
- Taiwan
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.8 × 1.2 × 1.2 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x22 mm
- Engine codes
- DBYA
