N90696701 Hexagon Head Bolt (Combi)
€6.67 excl. VAT
- N90696701This pageNot stocked
Feb 2018 - N90696702Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

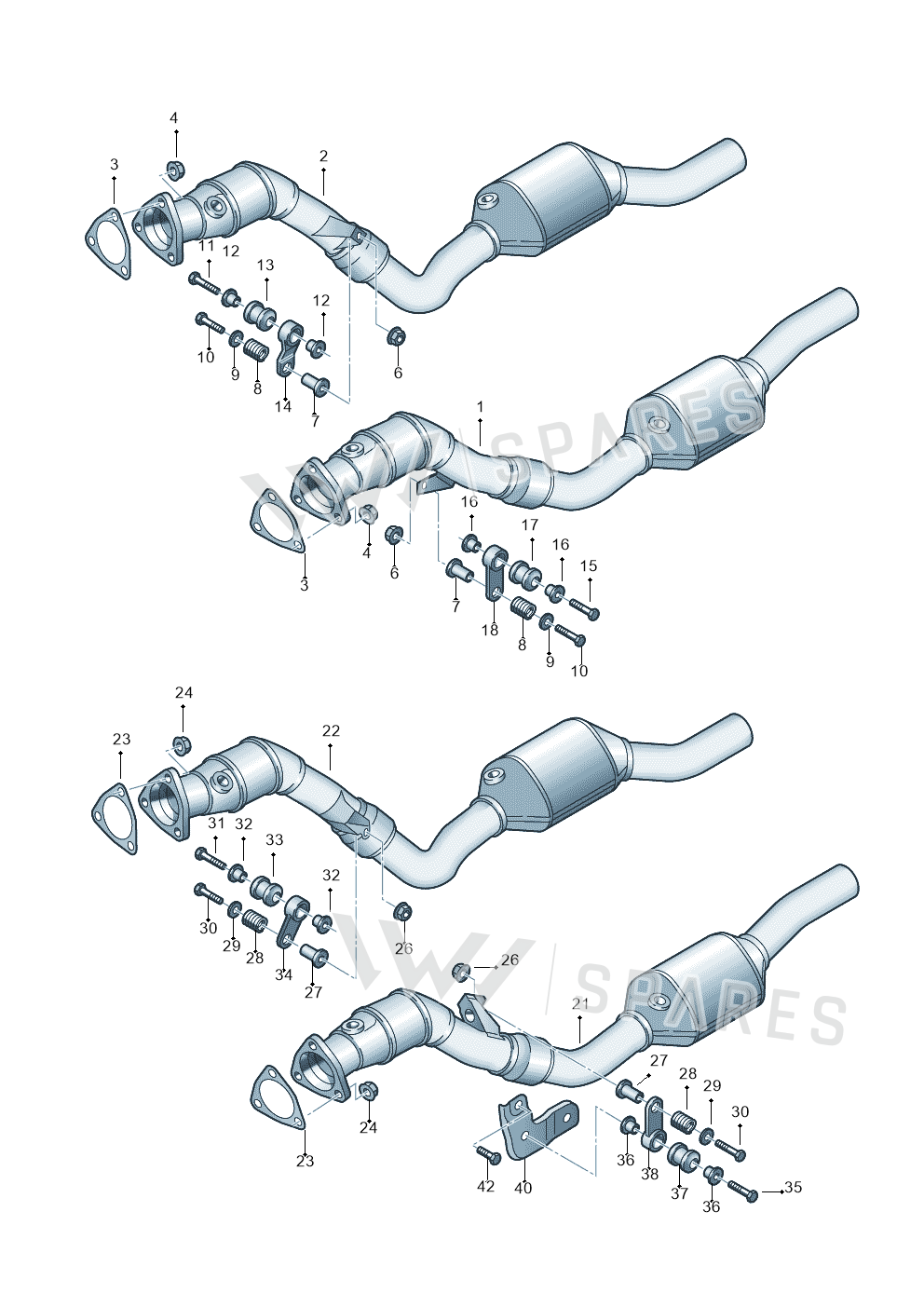

23 vehiclesHexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Exhaust PiLeft8E0254505SX
- 1Exhaust PiLeft8E0254505GX
- 1Exhaust PiLeft8E0254505JX
- 2Exhaust PiRight8E0254554QX
- 2Exhaust PiRight8E0254554JX
- 2Exhaust PiRight8E0254554LX
- 3Seal 8D0253115C
- 4Collar Nut N91130801
- 4Collar Nut N90200201
- 6Uthexagon Nut Self-lockinghexagon Nut N90289105
- 7Sleeve 4B0253205C
- 8Press Spring 893253353
- 9Washer N01167026
- 10Bolt N0403016
- 10Bolt N0403015
- 11Bolt N10307603
- 11Bolt N10308103
- 12Pipe 4B0253205D
- 12Pipe 4B0253205G
- 13Bush 4A0253149B
- 14Strap 8E0253295F
- 14Strap 4B0253295J
- 14Strap 8D0253295C
- 15Bolt N10344302
- 18Strap 4A0253295D
- 18Strap 4A0253295P
- 21Exhaust PiLeft8E0254505RX
- 21Exhaust PiLeft8E0254505HX
- 21Exhaust PiLeft8E0254505LX
- 22Exhaust PiRight8E0254554PX
- 22Exhaust PiRight8E0254554KX
- 22Exhaust PiRight8E0254554NX
- 23Seal 8E0253115C
- 34Strap 4D0253295G
- 34Strap 4D0253295J
- 35Bolt N10197212
- 40ConsoleLeft8E0253376L
- 41Washer N0116974
- 41Washer N0116973
- 42Bolt N03490111
- 42Bolt N01025414
Vehicle fitment table24
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 11 | 1 | G0R | |
| Audi A4/S4/Av./qu. 05> | 2005- | 13, 11 | |||
| LT, LT 4X4 | 2003-2006 | 5, 4, 16 | 2 | MZ2 | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 10 | 1 | G0R | |
| PASSAT/4MOTION/W8 | 2002-2005 | 7 | 2 | ||
| SUPERB 02> | 2001- | 7 | 2 | ||
| Audi A4/S4/Av./qu. | 2001-2004 | 10, 7 | 1 | G0R | |
| Passat/4Motion/W8 | 2000-2002 | 7 | 2 | ||
| Audi A4/Avant | 1999-2001 | 7 | 2 | ||
| Audi A4/Av.qu. | 1999-2001 | 7 | 2 | ||
| Passat syncro/4Motion | 1998-2000 | 7 | 2 | ||
| Passat | 1997-2000 | 7 | 2 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 7 | 2 | ||
| LT, LT 4X4 | 1996-2003 | 5, 4, 16 | 2 | ||
| TRANSPORTER SYNCRO | 1996-2003 | 9 | 3 | ||
| Transporter 96 | 1996-1996 | 9 | 3 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 7 | 2 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Eurovan | 1998-2003 | 9 | 3 | DQG,DQ | |
| Eurovan 98 | 1997-1998 | 9 | 3 | ||
| Eurovan | 1996-1997 | 9 | 3 | ||
| Eurovan F>>70-T 96 | 1995-1995 | 9 | 3 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 701 platform | 9 | ||||
| 3B0 platform | 7 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TOLEDO/LEON/LEON-4 | 1998-2001 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt (Combi) is fitted on: Audi A4/S4 Cabrio./qu. 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; LT, LT 4X4 2003-2006; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; SUPERB 02> 2001-; Audi A4/S4/Av./qu. 2001-2004; Passat/4Motion/W8 2000-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; LT, LT 4X4 1996-2003; TRANSPORTER SYNCRO 1996-2003; Transporter 96 1996-1996; Audi A4 F>8D-W-.. 1995-1997; Eurovan 1998-2003; Eurovan 98 1997-1998; Eurovan 1996-1997; Eurovan F>>70-T 96 1995-1995; 701 platform; 3B0 platform.
