N90940501 Hex Collared Bolt
€2.04 excl. VAT
- 02N300044MNot stocked
Oct 2001 - N90940501This pageNot stocked
Nov 2008 - N90940502Discontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

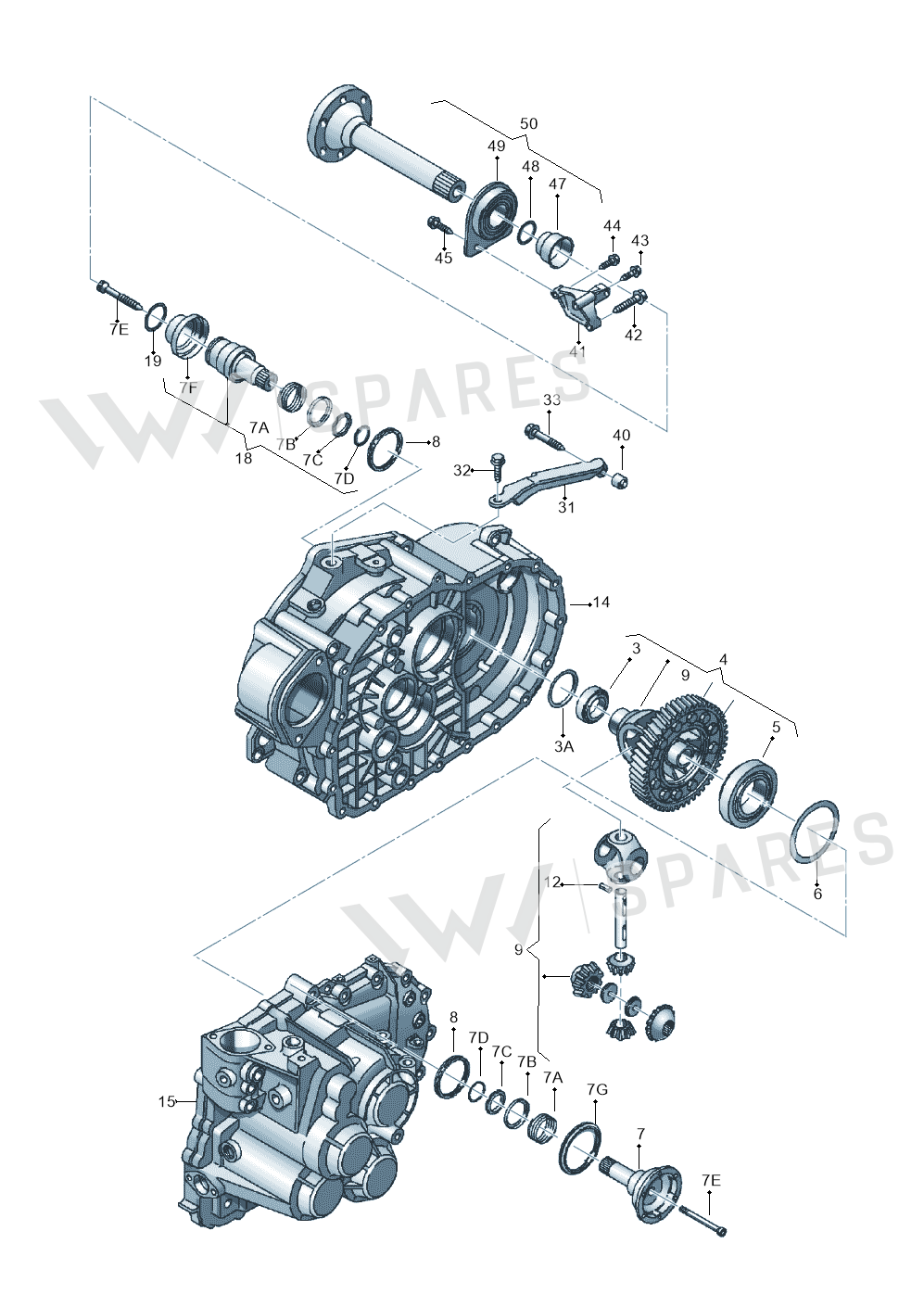

3 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 3Mounting 091517185D
- 3AWasher 02N409208
- 4Gearbox 02N409021N
- 4Gearbox 02N409021M
- 5Mounting 098409321B
- 6Shims 02G498114
- 7FlanshaftLeft02N409355D
- 7FlanshaftLeft02N409355C
- 7APress Spring 02N409379
- 7BWasher 02N409378
- 7CRing 02N409374
- 7DRing N90635301
- 7EScrew 02J409359
- 7FCover 02G409406B
- 7GRing 02M409375
- 9Diff Pinio 02N498081A
- 12Sleeve N90538701
- 18Stub Shaft 02N409345A
- 19Seal Ring 068145119
- 31Support 02N301177
- 32Bolt N90495901
- 33Bolt N90922202
- 40Sleeve 02N301194
- 41Bracket 09B409905E
- 41Bracket 09B409905D
- 42Bolt N91031702
- 43Bolt N90940502
- 43Bolt N10695701
- 44Bolt N0195315
- 45Bolt N01953310
- 47Cover 02G409319D
- 48Ring N0123761
- 49Mounting 02N409335E
- 49Mounting 02N409335C
- 50FlanshaftRight02N409344F
- 50FlanshaftRight02N409344E
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALHAMBRA/4MOTION | 2005- | 42 | 1 | FVB,JBM | |
| ALHAMBRA/4MOTION | 2002-2005 | 42 | 1 | FVB | |
| SHARAN/4MOTION | 2000-2002 | 30 | 3 | FGM | G0M |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALHAMBRA/4MOTION | 2000-2002 | 3 | FGM |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: ALHAMBRA/4MOTION 2005-; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002.
