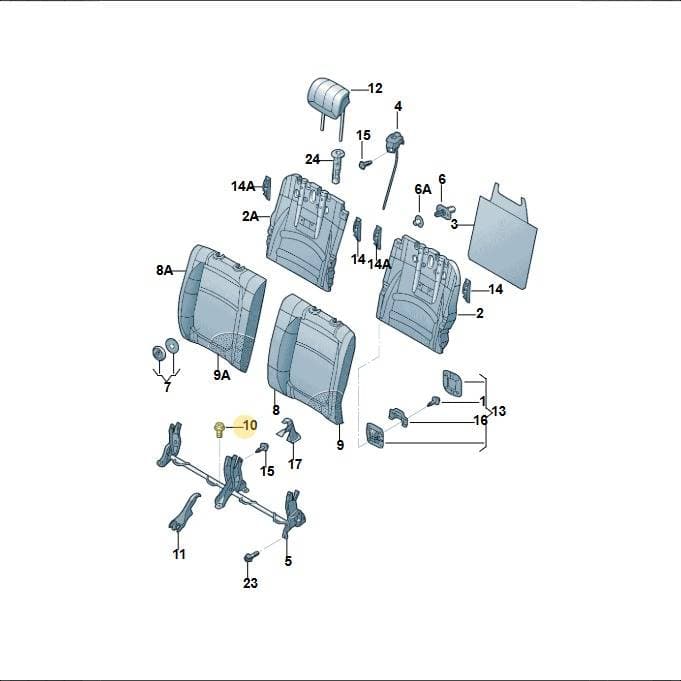

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N90951501. This bolt fastens components with a collar for precise positioning and an internal drive. It is located at position 10 in the seat assembly. This bolt is designed for secure attachment within the seat structure. Genuine OEM bolts provide the correct thread pitch and material strength for safe and durable assembly.
Technical details
- Category
- Seats
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.4 × 2 × 2 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
5 vehiclesScrew — locate N90951501 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Carrier 3D0199215N
- 2Screw N90971201
- 3Bracket 3D0199613H
- 4Screw N90990001
- 5Screw N90990101
- 7Rubber Bush 3D0199381T
- 9Grommet 3D0199713
- 10Collar Nut N10261310
- 11Support 3D0199307AB
- 12Support 3D0199308AK
- 15Bolt N90978401
- 16Press Pipe 3D0133778F
- 17Bracket N10266601
- 18Bracket N10533701
- 19Valve 037906283D
- 20Bolt N01020717
- 26Adapter 073133382
- 27Tpiece 2D0129737A
- 28Clip 3D0199442
- 29Radius Rod 3D0805489B
- 30Bolt N90648402
Diagrams & fitment data powered by oemdiagrams.com
N90951501 Volkswagen Socket Head Bolt | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; new beetle 2011-2016; new beetle cabriolet 2011-2016; Beetle 2016-2019; new beetle cabriolet 2016-2019.
