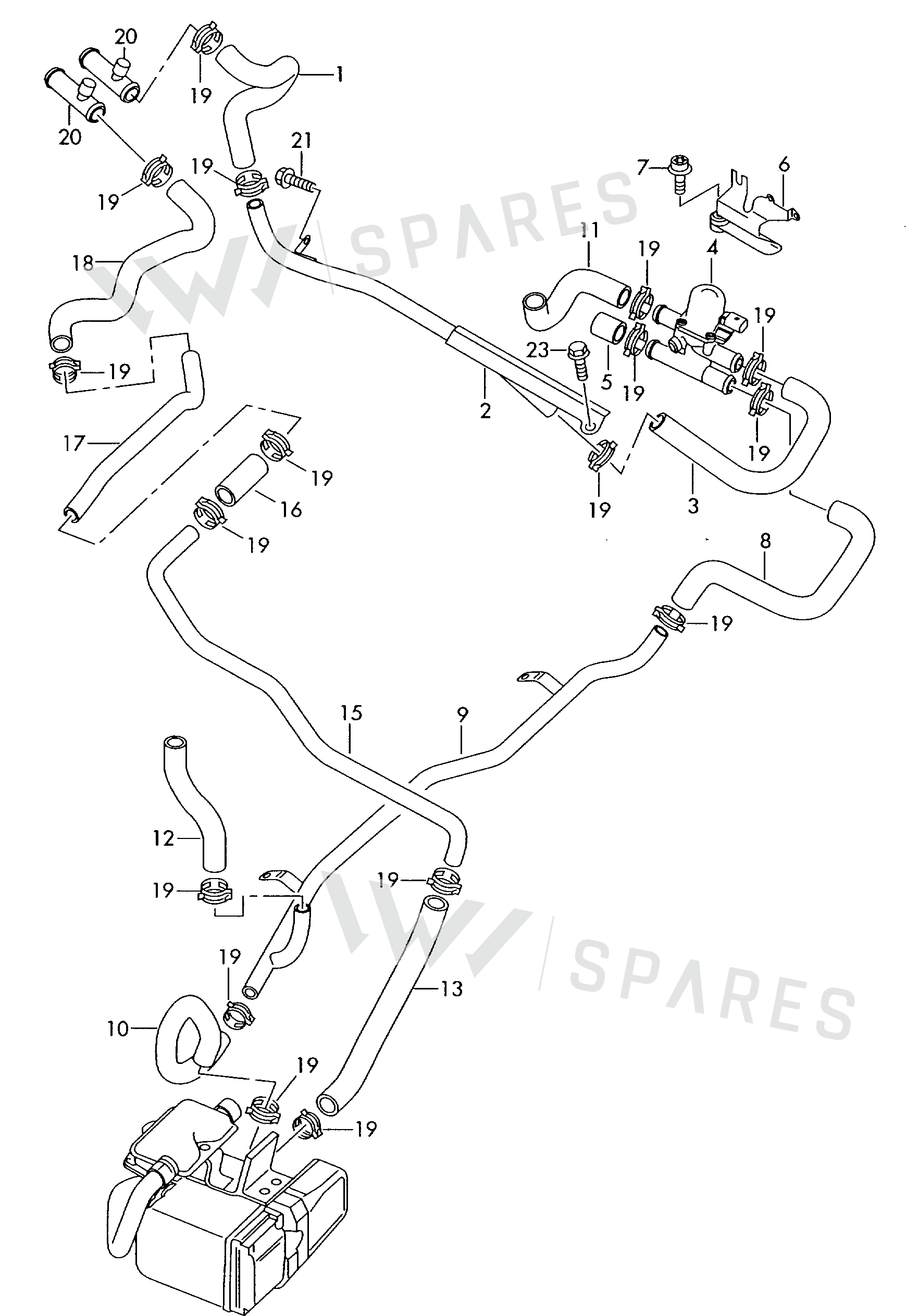

Hexagon Socket Head Bolt exploded parts diagram — Audi A8 quattro · 1999-2002, position 7
Exploded view
Audi A8 quattro · 1999-2002 · position 7Full diagram ↓
N90974301

N90974301 Hexagon Socket Head Bolt

€0.38
incl. 21% VAT

€0.31 excl. VAT

Supersession roadoldest to newest
  1. N90974301This pageNot stocked
    Jun 2007
  2. N90974302Discontinued
    Mar 2024
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

2 vehicles

Hexagon Socket Head Bolt — locate Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly22
Vehicle fitment table2

Europe (2)

VehicleYearsPos.Qty
Audi A8 quattro1999-200272
AUDI A81998-200272

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Socket Head Bolt is fitted on: Audi A8 quattro 1999-2002; AUDI A8 1998-2002.
