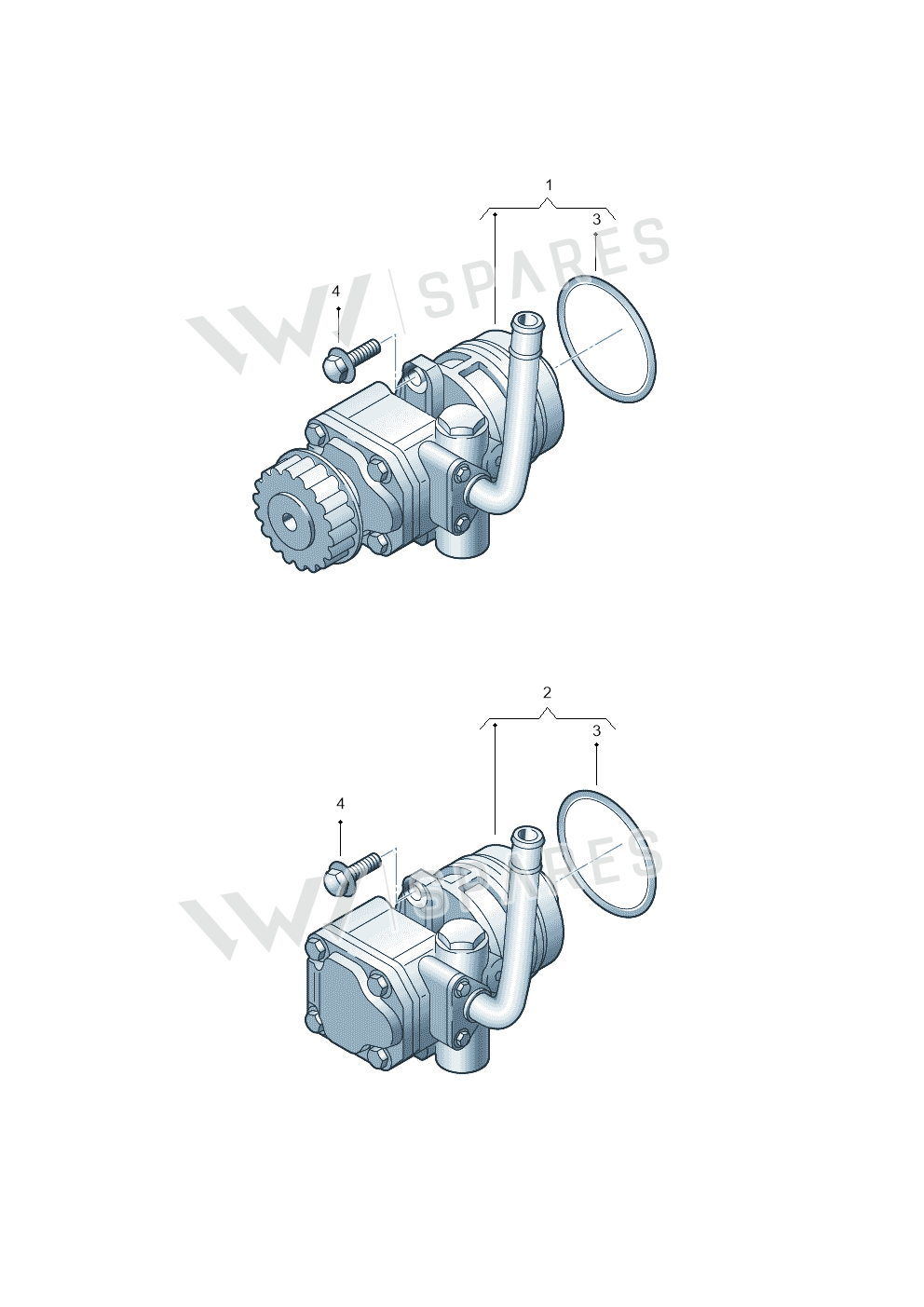

Hex Collared Bolt exploded parts diagram — TRANSPORTER/4MOTION 07 · 2006-2007, position 4
Exploded view
TRANSPORTER/4MOTION 07 · 2006-2007 · position 4Full diagram ↓
N90978401

N90978401 Hex Collared Bolt

€2.17
incl. 21% VAT

€1.79 excl. VAT

Supersession roadoldest to newest
  1. N10541001Not stocked
    Mar 2004
  2. N90978401This pageNot stocked
    Aug 2015
  3. N90978403Current number
Current part numberN90978403What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

16 vehicles

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly3
Vehicle fitment table16

Europe (13)

VehicleYearsPos.QtyRemarkPR
TRANSPORTER/4MOTION 072006-200742TM
TRANSPORTER OFFEN (7J) 072006-200742
CAMPMOBIL (T5) 072006-200742TM
TOURAN2005-2006225AZZ
Touareg2005-200632TP7
TRANSPORTER/4MOTION 062005-200642
TRANSPORTER 062005-200642TM
CAMPMOBILE(T5)2004-200642
Phaeton (lang)2003-200613, 15, 142T31
Touareg2003-2005114AZZ,BKJ,BAA,BM
TOURAN2003-2005225AZZ
TRANSPORTER2003-200542
Cayenne2002-20066

Other markets (2)

VehicleYearsPos.QtyRemarkPR
POLO-BRASIL2002-2006132G0C
POLO LIM.(SEDAN) "BR"2002-2006132

Platform / generic diagrams (1)

VehicleYearsPos.QtyRemarkPR
7L6 platform71

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TOURAN 2005-2006; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; Phaeton (lang) 2003-2006; Touareg 2003-2005; TOURAN 2003-2005; TRANSPORTER 2003-2005; Cayenne 2002-2006; POLO-BRASIL 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006; 7L6 platform.
