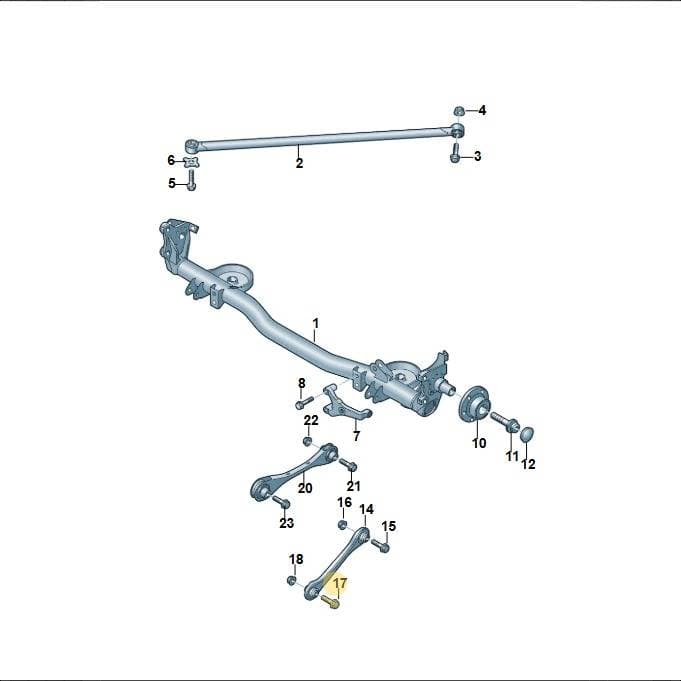

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Collared Bolt, part number N91039802. This bolt features a hexagonal head with an integrated flange, designed to distribute load and eliminate the need for a separate washer. It is used in various assemblies to ensure secure fastening. The bolt has a flange head. Genuine OEM bolts provide the correct material strength and thread pitch for safe and reliable assembly.
Catalogue entry: BOLT M12X90 ×2.
Technical details
- Category
- Other
- Country of origin
- Germany
- Customs (HS) code
- 73181588
- Manufacturer
- Cupra
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10.5 × 3 × 3 cm
- Shipping weight
- 0.1 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M12x90 mm
- Thread
- M12x1.5x90 mm
- Thread
- M12x1.50x90 mm
- Engine codes
- CBZB
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
103 vehiclesHex Collared Bolt — locate N91039802 Volkswagen Hex Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
