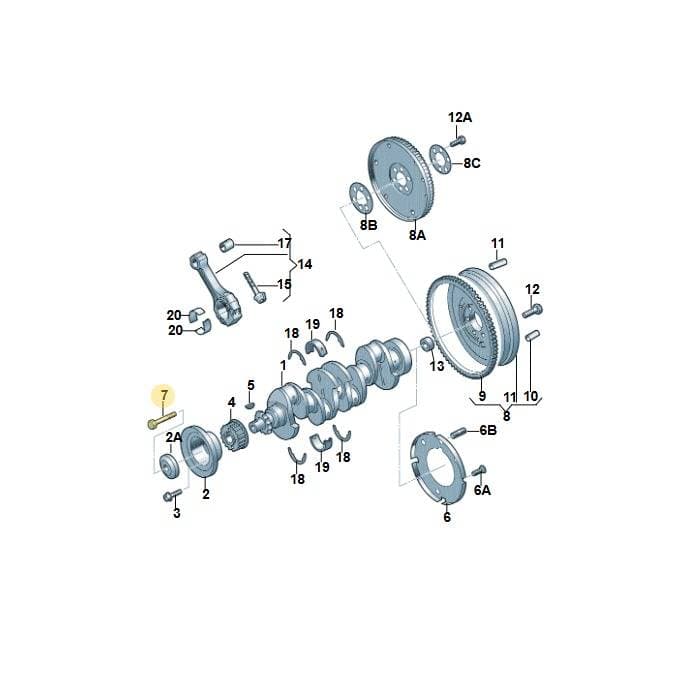

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Bolt, part number N91048701. This bolt is engineered to provide a secure and durable connection for internal engine components. It is positioned within the crankshaft assembly as shown in the technical diagram. The bolt is manufactured from high-grade steel to meet strict factory specifications for tensile strength. Using genuine OEM fasteners is critical in engine builds to ensure that clamping forces remain consistent under thermal expansion and mechanical stress.
Technical details
- Category
- Engine
- Country of origin
- Italy
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.7 × 4 × 4 cm
- Shipping weight
- 0.13 kg
Parts diagram & fitment
55 vehicles12 Point Socket (combi ) — locate N91048701 Volkswagen Hexagon Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Crankshaft 036105101C
- 2Pulley 036105243E
- 2Pulley 036105255C
- 2AWasher 036105193
- 4Pulley 036105263F
- 8Flywheel 027105271NX
- 8Flywheel 027105271P
- 8AClutch Pla 032105323
- 8BShim 056105303
- 8CWasher 051105301
- 12Bolt N90206103
- 12ABolt N90465601
- 14Con Rod 036198401C
- 14Con Rod 036198401
- 15Part 030105425
- 15Bolt 030105425N
- 15Part 045105425
- 15Bolt 030105425E
- 17Bush 030105431P
- 18Thrust Pla 026198421
- 19Bearing 036198491
- 20Bearing 036105701B
- 20Bearing 036105701C
- 20Bearing 032105701H
Diagrams & fitment data powered by oemdiagrams.com
