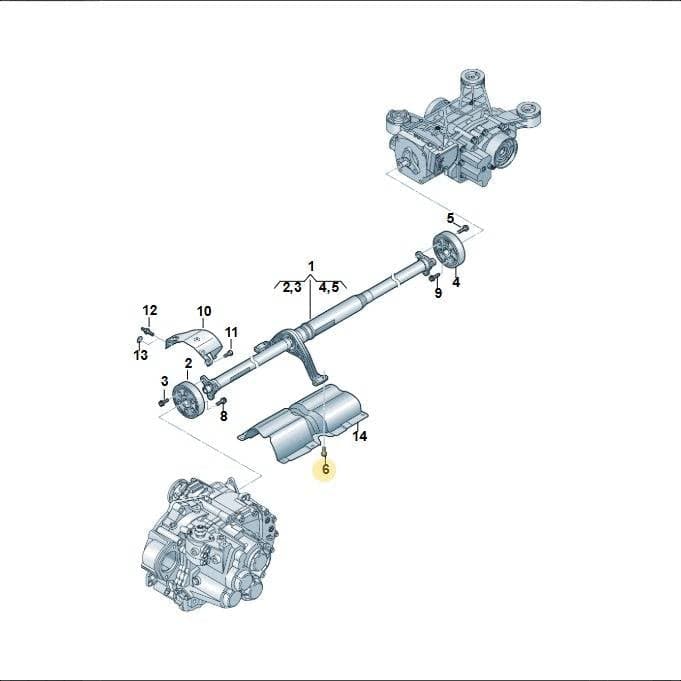

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Head Bolt With Shoulder, part number N91066901. This fastener provides controlled clamping force and precise alignment for various components within the drivetrain assembly. It is used to secure heat shielding and structural elements in the underbody. This bolt features a durable steel construction with a specific shoulder design to prevent over-tightening and ensure proper seating. Using genuine OEM hardware is essential for maintaining the correct torque specifications and vibration resistance required for critical drivetrain components.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.5 × 2.5 × 2.5 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
85 vehiclesBolt Hex Hd With Shoul (combi) — locate N91066901 Volkswagen Hex Head Bolt With Shoulder | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1Exh Pipe 1K0254702HX
- 1Exh Pipe 1K0254703FX
- 2Clamp 1K0253725
- 3Seal 1K0253115T
- 4Bracket 1K0253144BC
- 5Bolt N10240003
- 6Bracket 1K0253461AK
- 7Bolt N90786504
- 8Collar Nut N01508315
- 10Control Line 3C0131552J
- 10Control Line 3C0131552K
- 11Bolt N90993601
- 12Bracket 3C0131649A
- 13Bolt N90807301
- 14Grommet 046131887
- 23Clamp 3C0131483A
- 24Clamp 3C0131483
- 25Clamp 7L6422379
- 32Bolt N0144833
