Target · Diagram
Find this reference above

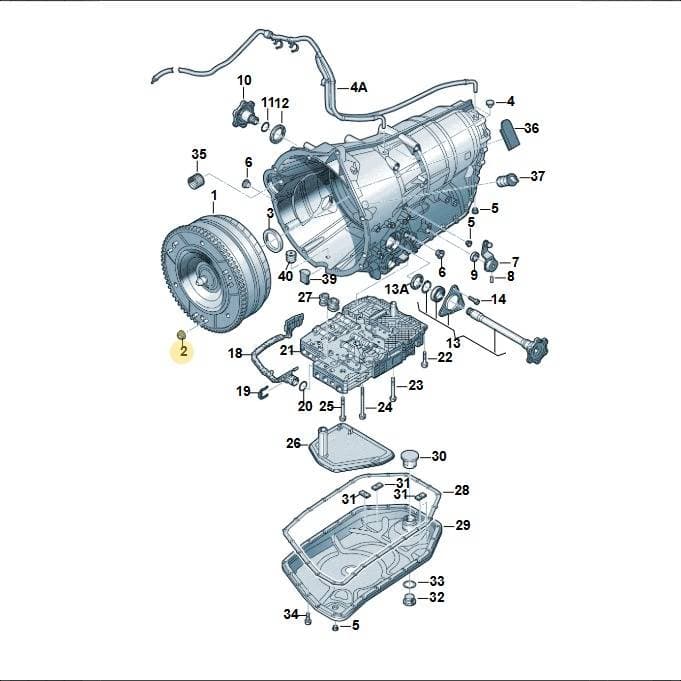

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen socket head bolt, part number N91087001. This fastener is designed with a high-strength cylindrical head and internal drive to secure critical components within the transmission housing. It is used to maintain structural integrity under the vibration and thermal loads typical of a transmission assembly. Genuine OEM bolts are engineered with the exact tensile strength and corrosion-resistant coating required to prevent fastener failure and ensure consistent clamping force.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.9 × 2.1 × 2.1 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
4 vehiclesScrew — locate N91087001 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(40)
- 1Converter 09L323571Q
- 1Converter 09L323571R
- 1Converter 09L323571S
- 1Converter 09F323571A
- 2Screw N90691601
- 2Part N10169201
- 3Seal Washer 09E321243
- 4Breather 01V409845
- 4AHose 3D0301059A
- 4AHose 3D0301059C
- 4AHose 3D0301059
- 5Bolt 018321377B
- 6Bolt 01V409057
- 7Lever 09L321171B
- 7Lever 09F321171
- 8Part 01V321546
- 9Seal Washer 09E409189
- 11Ring 09L409297
- 12Seal 09E409399A
- 13Flanshaft 09F409355A
- 13Flanshaft 09F409355
- 13ASeal 09E409400
- 14Screw 01V321375
- 26Strainer 09L325429
- 26Strainer 09E325429
- 27Seal 09L325443
- 27Seal 09E325443A
- 28Gasket 09L321371
- 28Gasket 09L321371A
- 28Gasket 09F321371
- 29Oil Sump 09L321359
- 29Oil Sump 09L321359A
- 29Oil Sump 09F321359
- 30Part 09F321432
- 31Magnet 018321367
- 31Magnet 09E321367
- 32Screw 01V321376
- 33Seal Ring 01V321379
- 34Screw WHT000747
- 35Bearing 09D311150
Diagrams & fitment data powered by oemdiagrams.com
N91087001 Volkswagen Socket Head Bolt | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
