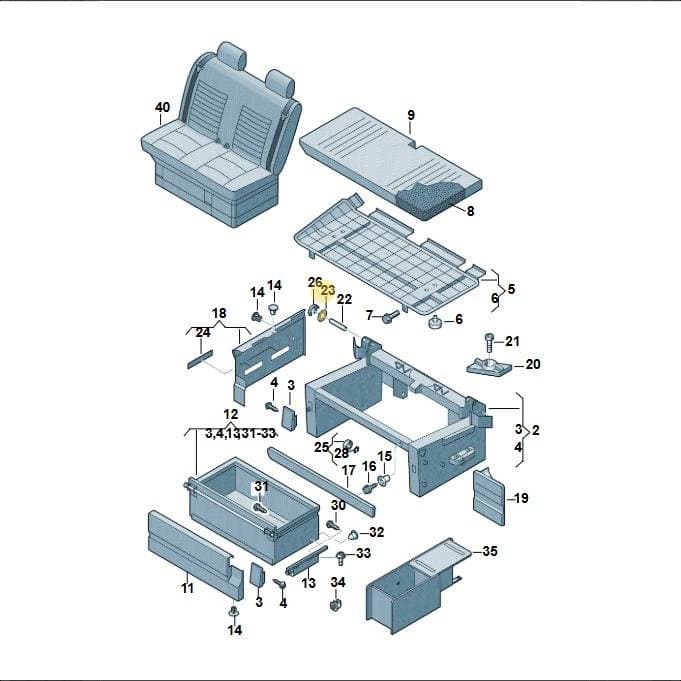

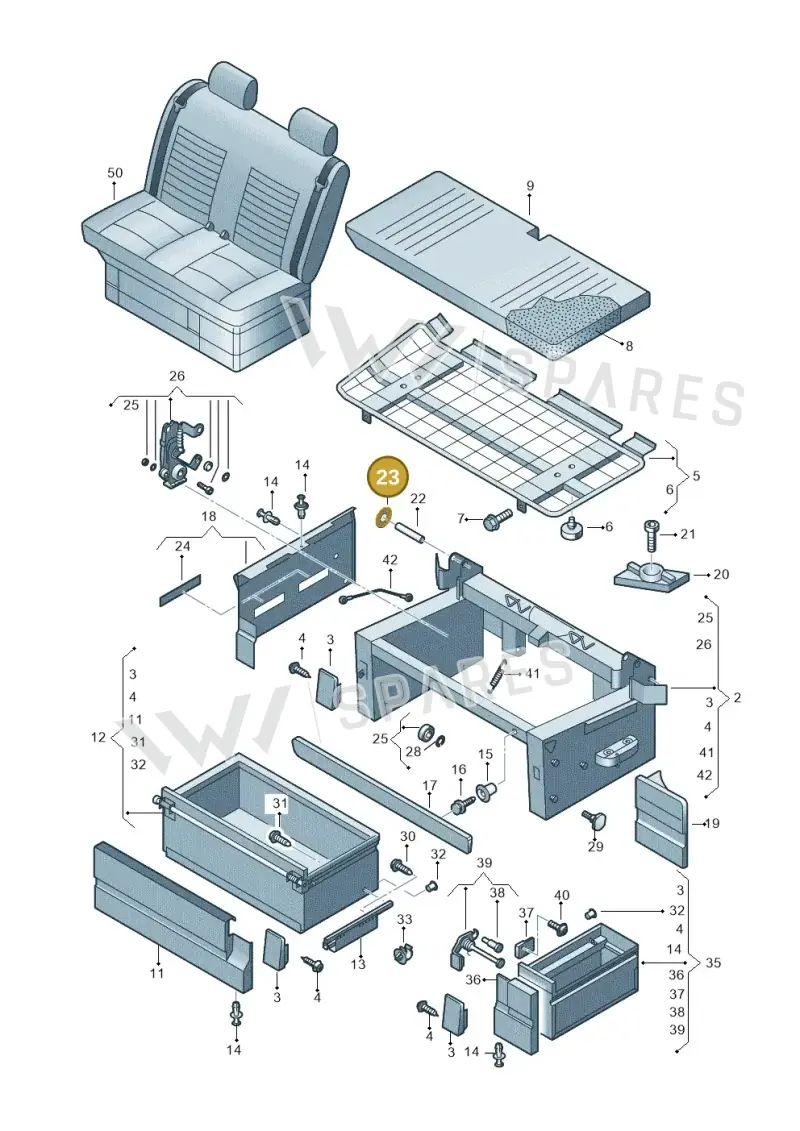

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen washer, part number N91091501. This flat washer is designed to distribute the load of a threaded fastener across a wider surface area, reducing stress on the surrounding seat assembly components. It is used to prevent damage to mounting points and ensure a secure, vibration-resistant connection. Genuine OEM washers are manufactured to exact dimensions and material specifications, ensuring they do not deform or corrode under the mechanical loads typical of seat adjustment mechanisms.
Catalogue entry: WASHER 12,4X20X4,5 ×4.
Technical details
- Category
- Seats
- Customs (HS) code
- 73182300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2 × 2 × 0.4 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 12.4x20x4.5
Equipment codes
- 3VZ
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
15 vehiclesWasher — locate N91091501 Volkswagen Washer | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 2Housing 7E7067231J
- 2Housing 7LA067231
- 2Housing 7LA067231A
- 2Housing 7LA067231B
- 3Handle 7E7885639
- 4Screw N10620801
- 5Seat Well 7E7067305
- 6Buffer 7H7067310
- 7Bolt N10156305
- 8Padding 7E7067317
- 9Cover 7LA067321A
- 9Cover 7LA067321B
- 9Cover 7LA067321
- 11Trim 7E7067465
- 12Drawer 7E7067461E
- 12Drawer 7LA067461
- 12Drawer 7E7067461A
- 13Rail 7H7067470
- 13Rail 7H7098469
- 13Rail 7H7067469
- 14Clip 7H0867299
- 15Grommet 3B0867334
- 16Clip 3B0867333
- 17Trim 7E7067297
- 18Trim 7E7067298A
- 19Trim 7E7067299
- 20Stop 7E7068030
- 21Screw N10620901
- 22Part N91091601
- 23Ret Washer N0123294
- 24Velcro 4D0863437A
- 28Ring N0124161
- 29Bolt N91208501
- 29Bolt 7H7067417
- 30Bolt N90646201
- 31Screw N90562401
- 32Bungs N90982701
- 33Bracket 7E7067813
- 35Drawer 7E7068041A
- 35Drawer 7E7068041C
- 35Drawer 7LA068041
- 35Drawer 7LA068041A
- 35Drawer 7LA068041B
- 36Cover 7E7067509
- 37Guide 7H7067523
- 38Bolt N90449701
- 39Lock Mechanism 7H7067303
- 40Part N10654902
Vehicle fitment table15
Europe (15)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| caravelle | 2019-2024 | 23 | 4 | 3VZ |
| caravelle | 2015-2019 | 23 | 4 | 3VZ |
| California Camper | 2015-2019 | 23 | 4 | 3VZ |
| transp. caravelle | 2011-2015 | 23 | 4 | |
| California Camper | 2011-2015 | 23 | 4 | 3VZ |
| transp. caravelle | 2009-2011 | 23 | 4 | |
| California Camper | 2009-2011 | 23 | 4 | 3VZ |
| transp. caravelle | 2008-2009 | 23 | 4 | |
| California Camper | 2008-2009 | 23 | 4 | 3VZ |
| TRANSPORTER GESCHL. 08 | 2007- | 23 | 4 | |
| CAMPMOBIL-T5 08 | 2007- | 23 | 4 | 3VZ |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 23 | 4 | |
| CAMPMOBIL (T5) 07 | 2006-2007 | 23 | 4 | 3VZ |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 23 | 4 | |
| CAMPMOBILE(T5) | 2004-2006 | 23 | 4 | 3VZ |
Diagrams & fitment data powered by oemdiagrams.com
N91091501 Volkswagen Washer | Genuine OEM is fitted on: caravelle 2019-2024; caravelle 2015-2019; California Camper 2015-2019; transp. caravelle 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2008-2009; California Camper 2008-2009; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; CAMPMOBILE(T5) 2004-2006.
