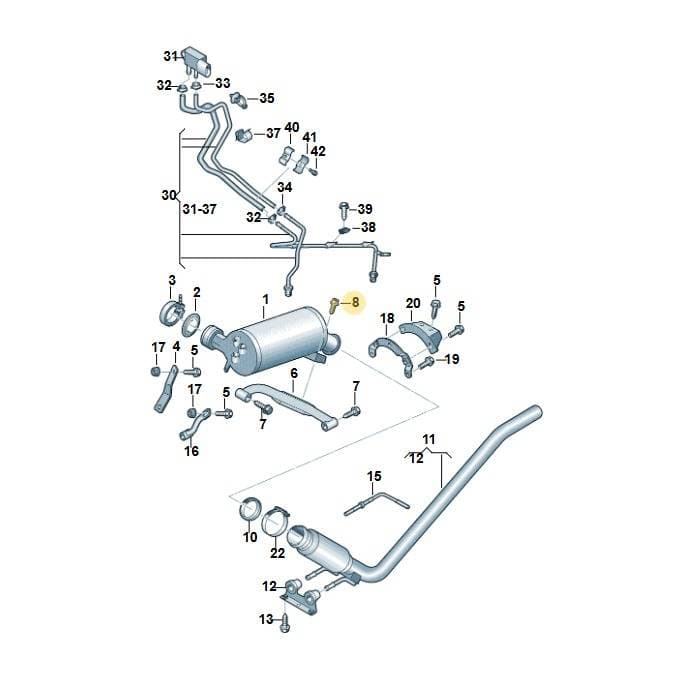

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Collared Bolt, part number N91146901. This fastener features an integrated collar that distributes pressure evenly across the mounting surface, preventing loosening under vibration. It is primarily used within the exhaust assembly to secure mufflers and related brackets. Genuine VAG hardware is manufactured from heat-resistant alloys to withstand the extreme temperature cycles of the exhaust system without corroding or seizing.
Catalogue entry: SCREW M10X30.
Fitted with: 420199307H SUPPORT, N10702701 BOLT, 420199381AA ENG.MOUNTI, N10702603 SCREW, N10689301 SCREW.
Technical details
- Category
- Exhaust
- Country of origin
- Germany
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4 × 2.6 × 2.6 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M10x30 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
22 vehiclesScrew — locate N91146901 Volkswagen Collared Bolt | Exhaust System in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly36
- 1Radiator 04B131512D
- 1Radiator 04B131512C
- 2Valve 04B131501D
- 3Seal 04L131547A
- 4Bolt N10451408
- 5Sleeve 04B971461B
- 6Bracket 04B131425A
- 7Screw N10664901
- 9Seal 04L131547
- 10Clamp 04L131455A
- 14Pipe 04B131521F
- 15Seal 04L131547T
- 16Clamp 04L131539
- 17Screw N91084801
- 20Binder 4A0820199
- 21Cable Tie 3W0971838
- 22Hose 04B129456
- 23Bracket N10507901
- 24Screw N10285505
- 25Bolt N90737803
- 27Collar Nut N01508210
- 28Hose 04B131051A
- 29Valve 046905291B
- 30Clip 1J0971939C
- 33Hose 04B131055
- 33Hose 04B131055D
- 34Converter 1K0906627B
- 35Plate 046130405
- 36Bracket 6C0906287A
- 37Thrustring 1K0906139A
- 38Grommet 046131887
- 39Thrustring 1K0906139
- 40Spacer 1K0906435
- 42Hose 04B131605A
- 42Hose 04B131605H
- 43Hose 04B131605
Vehicle fitment table22
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ibiza Stylance | 2015- | 8 | 1 | ||
| Audi R8 Spyder | 2015-2024 | 15 | 1 | ||
| Toledo Reference | 2015-2019 | 8 | 1 | ||
| fabia | 2014-2022 | 8 | 1 | ||
| Audi A1 Sportback | 2014-2018 | 8 | 1 | ||
| Polo 1.4 BlueMotion | 2014-2017 | 8 | 1 | ||
| Rapid | 2012-2022 | 8 | 1 | ||
| Toledo Reference | 2012-2015 | 8 | 1 | ||
| transp. caravelle | 2008-2009 | 8 | 2 | BRR,BRS | |
| transp. dropside | 2008-2009 | 8 | 2 | BRR,BRS | |
| California Camper | 2008-2009 | 8 | 2 | BRR,BRS | |
| TRANSPORTER GESCHL. 08 | 2007- | 8 | 2 | BRR,BRS | |
| TRANSPORTER OFFEN 08 | 2007- | 8 | 2 | BRR,BRS | |
| CAMPMOBIL-T5 08 | 2007- | 8 | 2 | BRR,BRS | G0C,T23,7GG |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 23 | 4 | PR:7GG | L0L |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 8 | 2 | BRR,BRS | G0C,T23,7GG |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 8 | 2 | BRR,BRS | G0C,T23,7GG |
| CAMPMOBIL (T5) 07 | 2006-2007 | 8 | 2 | BRR,BRS | G0C,T23,7GG |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ID.6 X | 2021- | 8 | 6 | ||
| Audi Q5 e-tron | 2021- | 23 | 6 | ||
| Audi e-tron | 2020-2023 | 23 | 18 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 2X2 platform | 2 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
N91146901 Volkswagen Collared Bolt | Exhaust System is fitted on: Ibiza Stylance 2015-; Audi R8 Spyder 2015-2024; Toledo Reference 2015-2019; fabia 2014-2022; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Rapid 2012-2022; Toledo Reference 2012-2015; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; ID.6 X 2021-; Audi Q5 e-tron 2021-; Audi e-tron 2020-2023; 2X2 platform.
