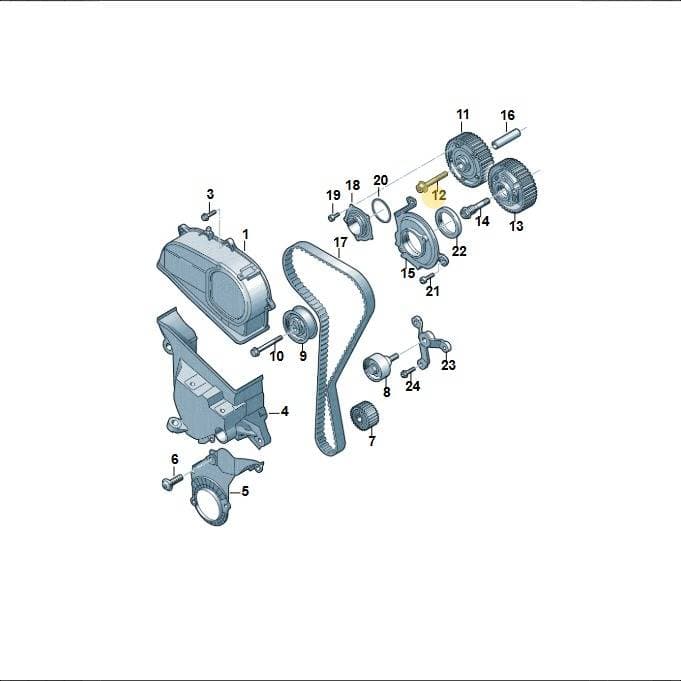

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Timing Gear Collared Bolt, part number N91197201. This specialized fastener is designed to mount timing pulleys or sprockets within the engine timing system, maintaining critical alignment. The integrated collar provides a wide bearing surface to prevent loosening under vibration. Using genuine OEM hardware ensures the bolt meets the exact hardness and thread specifications required for critical engine timing components to prevent catastrophic failure.
Catalogue entry: SCREW M10X1,25.
Fitted with: 05E109244 ROLLER, 04E109479H TENS.ROLL., N10690201 SCREW, 05E109088E ADJUSTER, 05E109088K ADJUSTER, 03C103825A SLEEVE, 04E109119F TOOTH BELT, 04E109153 COVER, N10313302 SCREW, WHT008548 SEAL. RING, 05E105263 PULLEY, 05E109479B TENS.ROLL..
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10 × 1.3 × 1.3 cm
- Shipping weight
- 0.06 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M10x1.25 mm
- Engine codes
- CHPA, CPTA, CZEA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
62 vehiclesScrew — locate N91197201 Volkswagen Timing Gear Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly25
- 1Protection 04E109108AB
- 3Bolt WHT003261
- 5Protection 04C109175F
- 6Bolt N91096801
- 7Pulley 05E105263
- 8Roller 05E109244
- 9Tens Roll 05E109479B
- 10Valve 04E906423G
- 10Screw N10690201
- 11Adjuster 05E109088K
- 13Adjuster 05E109088D
- 14Valve 04E109257A
- 15Bracket 05E109093C
- 16Sleeve 03C103825A
- 17Tooth Belt 04E109119F
- 18Cover 04E109153
- 19Screw N10313302
- 20Seal Ring WHT008548
- 21Bolt N10124309
- 22Seal 04E103085AN
- 23Bracket 05E109187
- 24Bolt N91108701
- 25Valve 04E906423C
- 26Seal Ring 04E906145
- 27Screw N10546403
