Target · Diagram
Find this reference above

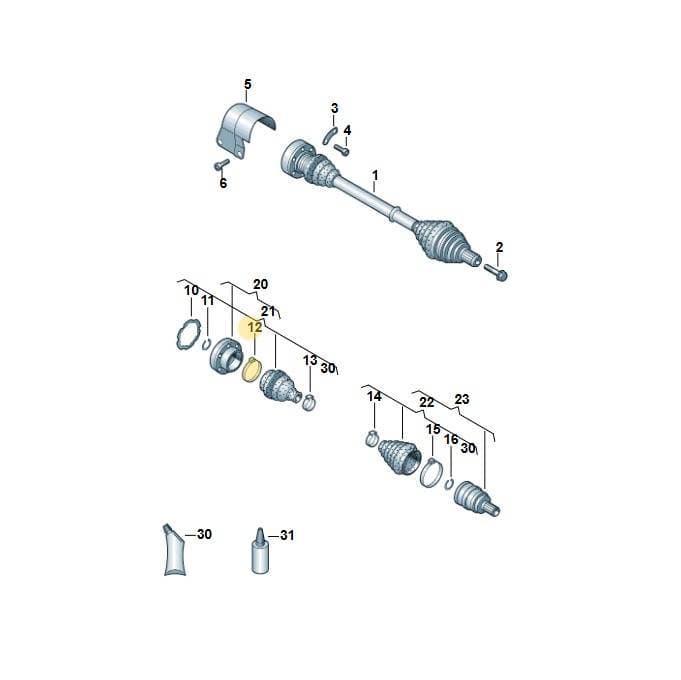

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen drive shaft boot clamp, part number N91213305. This clamp is used to secure the CV joint boot to the axle assembly, preventing grease from escaping and protecting the joint from road debris and moisture. It is positioned on the drive shaft assembly as shown in the diagram. Genuine OEM clamps are engineered to provide the exact tension required to maintain a permanent, leak-free seal under high rotational speeds and extreme temperature fluctuations.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 73269098
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.9 × 1 × 0.1 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
7 vehiclesClamp — locate N91213305 Volkswagen Drive Shaft Boot Clamp | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1DriveshaftLeft56D407271
- 1DriveshaftRight56D407272
- 2Bolt WHT002795
- 3Plate 1K0407357C
- 4Screw N91108201
- 5Heat Sh 5QD407721
- 6Bolt N10170512
- 10Seal Plate 8D0407309
- 11Circlip 113517279
- 11Ring N10753201
- 12Clip N10753601
- 13Clip N10614801
- 13Clip N10753301
- 14Clip N90442501
- 15Clip N90772401
- 15Clip N91213205
- 16Spring 321407287
- 17Press Ring 321407295A
- 18Circlip 171407297C
- 18Circlip 180407297
- 20Joint 56D498103
- 20Joint 56D498103C
- 21Boot 18D498201
- 21Boot 56D498201A
- 22Boot 1KD498203B
- 22Boot 56D498203A
- 23Wheelshaft 1KD498099C
- 23Wheelshaft 56D498099A
- 30Grease GCN052738Z4
- 31Grease GCN052133Z3
Diagrams & fitment data powered by oemdiagrams.com
N91213305 Volkswagen Drive Shaft Boot Clamp | Genuine OEM is fitted on: New Passat 2011-2019; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; golf 1.6 2015-2019; Karoq 2017-2022; Superb Combi 2015-2024; Ateca Style 2016-.
