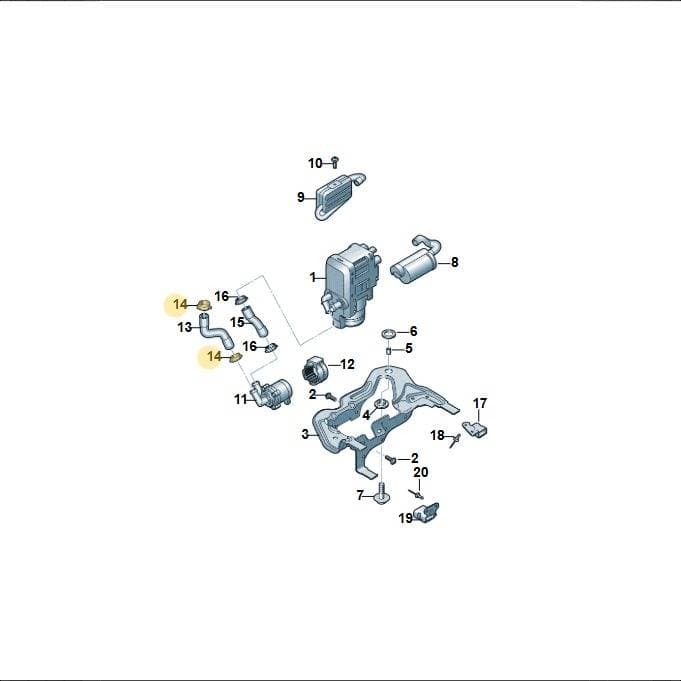

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Spring Band Clamp, part number N91225501. This clamp provides a tight and secure seal for hoses or flexible conduits. It is located in the engine cooling system. Genuine OEM clamps ensure the correct clamping force and material durability, vital for preventing leaks and maintaining optimal engine cooling.
Technical details
- Category
- Body Interior
- Customs (HS) code
- 73269098
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.2 × 4 × 1.2 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
20 vehiclesSpring Band Clamp — locate N91225501 Volkswagen Spring Band Clamp | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(25)
- 1Hose 7T0122051D
- 2Sender 05C919501
- 3Spring 032121142
- 4Seal Ring N90316801
- 5Spring 1J0121142
- 6Seal Ring N90765301
- 7Bracket 5Q0121093T
- 8Hose 7T0122058
- 9Hose 7T0122109B
- 10Hose 7T0122058A
- 11Water Pipe 5Q0121070BR
- 12Screw N10473402
- 15Clamp N90686901
- 16Hose 7T0122447D
- 17Clamp N90686701
- 18Hose 5Q0121058AC
- 19Clamp N90687001
- 20Water Pipe 5Q0121070BT
- 21Hose 5Q0121058AD
- 22Collar Nut N10609201
- 23Bolt N10737101
- 24Retainer 7T0121079B
- 25Valve 5Q0906457K
- 26Collar Nut N01508210
- 27Screw N10717701
Diagrams & fitment data powered by oemdiagrams.com
N91225501 Volkswagen Spring Band Clamp | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; ID.3 Pro 2019-2024; ID.4 Pro 2020-2023; ID.4 X 2020-; Multivan 2021-; ID.4 2020-; ID.6 X 2021-; ID.3 2021-; ID.7 Limousine Pro 2023-; ID.UNYX 2024-; Aero saloon 2023-; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; Audi Q4 Sportback 2021-2022; Audi Q5 e-tron 2021-; 578 platform; Tarraco FR 2018-2024; Enyaq 2020-.
