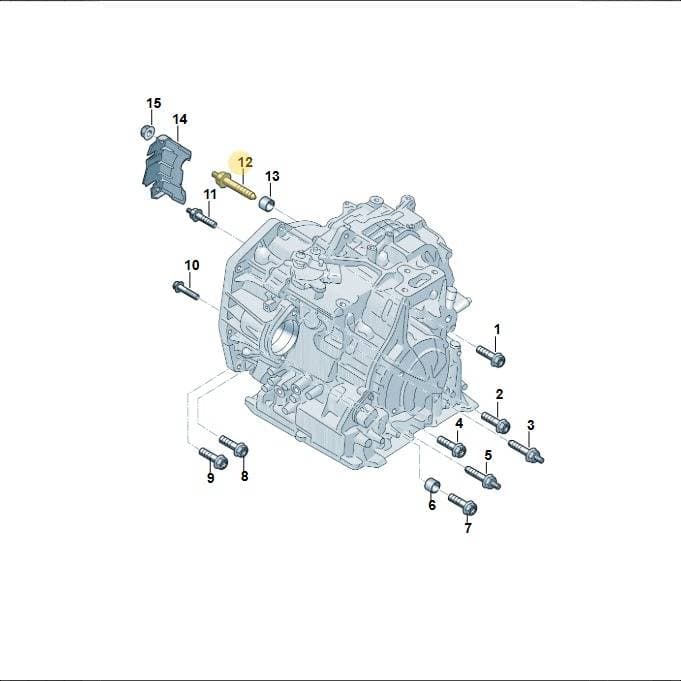

Number 12 marks the part’s position in the exploded view.

Product overview

Genuine OEM Volkswagen Collared Bolt, part number N91269101. This bolt is used to secure mounting parts for the 8-speed automatic gearbox and the fuel rail. It is indicated as item 12 in the diagram. The bolt measures 0.096m in length and weighs 0.082kg. Genuine OEM bolts for fuel and transmission systems are manufactured to strict tolerances for material and thread form, preventing leaks and ensuring the integrity of critical assemblies.

Technical details

Category
Transmission & Drivetrain
Customs (HS) code
73181588
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
9.6 × 2.5 × 2.5 cm
Shipping weight
0.08 kg

Parts diagram & fitment

2 vehicles

Hex Collared Bolt — locate N91269101 Volkswagen Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.

Parts in this assembly(8)

Diagrams & fitment data powered by oemdiagrams.com

N91269101 Volkswagen Collared Bolt | Genuine OEM is fitted on: Atlas Cross Sport 2019-2023; Atlas 2016-2023.
