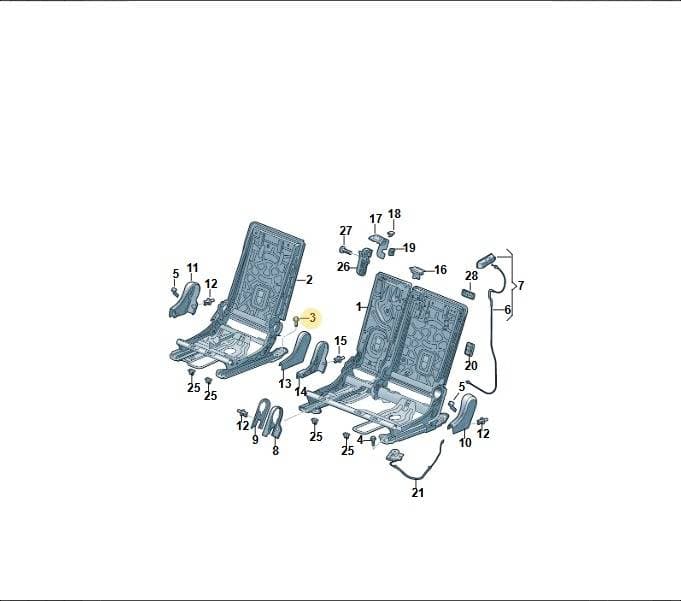

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Self-Locking Bolt, part number N91312801. This bolt is designed with a self-locking feature to resist loosening caused by vibration, ensuring the security of attached components. It is used in seat frames. Genuine OEM self-locking bolts offer reliable locking performance and material strength for long-term safety.
Technical details
- Category
- Seats
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.05 kg
Parts diagram & fitment
1 vehicleBolt Hex Hd (combi ) Self-locking — locate N91312801 Volkswagen Self-Locking Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Frame 83A885061
- 1Frame 83A885061A
- 2Backrest 5Q0885209E
- 2Backrest 5Q0885209G
- 2Backrest 5Q0885209H
- 2Backrest 5Q0885209F
- 3Lock 5Q0885297F
- 3Lock 5Q0885297E
- 4Trim 83A885753A
- 4Trim 83A885753B
- 5Trim 83A885753
- 6Collar Nut N01508210
- 8Bolt N91220301
- 9Buffer 5Q0885620
- 10Bolt N91196402
- 11Bolt N91232302
- 12Grommet 5G0886373
- 13Part 83F885635A
- 14Screw N10653801
- 15Clip 83F885635
- 15Clip 83A885635
- 16Part N10618501
- 17Bolt WHT007146
- 20Part 5NA885934B
- 21Part 5NA885739
- 22Spring Rivet N90536901
- 23Loop 510885093D
- 24Trim 8V0886747
- 26Frame 510886295A
- 27Frame 510885691A
- 28Part 510886896
- 29Part 510886895A
- 30Adhesive D001210M2
- 31Sensor 83A963554
Diagrams & fitment data powered by oemdiagrams.com
N91312801 Volkswagen Self-Locking Bolt | Genuine OEM is fitted on: Audi Q3 quattro 2018-2019.
