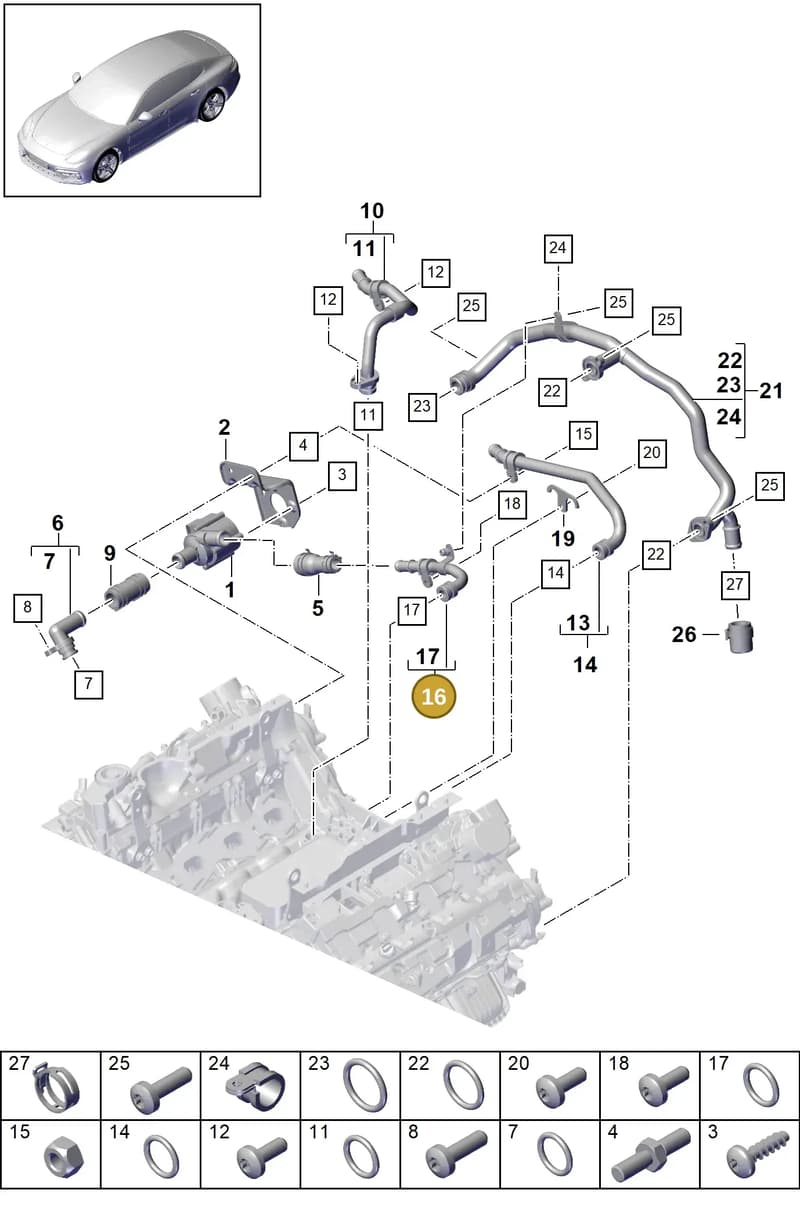

Number 16 marks the part’s position in this exploded view (Porsche Panamera (2023-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Porsche Coolant Pipe, part number PAC121071. Fits Porsche Panamera (2016-2025). Shown as position 16 in the engine diagram P5810511.
Catalogue entry: WATER PIPE.
Technical details
- Category
- Engine
- Diagram sheet
- Porsche p58105110, position 16
- ETKA group
- 1 / 05 (105)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CSZ, CSZA, CSZB, CXT, CXTA, DGP, DGPA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesCoolant Pipe — locate PAC121071 Porsche Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Water Pump 9A712160100
- 2PartLeft9A712109301
- 2PartRight9A712109302
- 2Bracket 9A712109300
- 3Screw 9A700336100
- 3Screw WHT002306
- 4Bolt PAF910448
- 4Bolt N91044801
- 5Hose 9A712105210
- 5Hose 9A712105400
- 6Adapter 9A712108900
- 6Clamp N90687001
- 7Adapter 9A712115900
- 7Seal Ring N90925001
- 8Seal Ring 9A700565200
- 8Bolt N10124306
- 9Bolt N10124309
- 9Hose 9A712105200
- 10Water Pipe 9A712107500
- 11Hose 9A712105410
- 12Clamp 95810651710
- 12Bolt N91126601
- 13Water Pipe PAC121085
- 13Part 9A712108500
- 13Water Pipe 9A712119300
- 14Clamp N10845201
- 14Part N10259903
- 15Ut Hexagon Nut Self-locking Hexagon Nut N02214812
- 15Bolt N10405604
- 16Part 9A712107120
- 16Water Pipe PAB121164
- 16Water Pipe 9A712107110
- 16Water Pipe 9A712116400
- 17Seal Ring N90365302
- 19Seal 9A712107000
- 19Bracket 9A712107700
- 21Water Pipe 9A712107101
- 21Water Pipe 9A712107511
- 21Water Pipe PAB121071
- 21Water Pipe 9A712107100
- 21Water Pipe 9A712107510
- 22Seal Ring 99970751741
- 24Clamp N0206267
- 24Clip PAF020625
- 26Water Pipe 9A712108510
- 26Part 9A712132400
- 28Clamp N02065110
- 30Bungs PAB12141800
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Panamera | 2023- | 16 | 1 | |
| Panamera 4 Hybrid | 2020-2023 | 16 | 1 | |
| Panamera 4 Hybrid | 2016-2020 | 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
PAC121071 Porsche Coolant Pipe is fitted on: Panamera 2023-; Panamera 4 Hybrid 2020-2023; Panamera 4 Hybrid 2016-2020.
