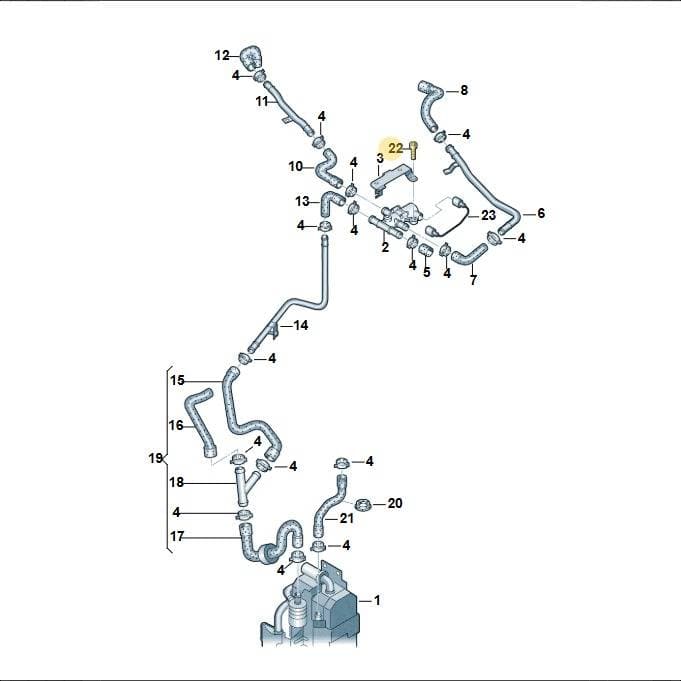

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Socket Head Bolt, part number WHT001136. This bolt has a cylindrical head with an internal hexagonal drive, designed for secure fastening in various automotive applications. It is positioned at point 22 in the diagram. Genuine OEM bolts are manufactured with precise thread pitch and material strength to ensure secure and reliable connections.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.5 × 2 × 2 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
4 vehiclesHex Socket Head Bolt (combi) — locate WHT001136 Volkswagen Hex Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1CPlate 3D2805301
- 2Cross MemberRight3D0805554A
- 2Cross MemberLeft3D0805553A
- 3Cross MemberRight3D2806603A
- 3Cross MemberLeft3D1806603
- 4Clos PlatLeft3D1805088A
- 4Clos PlatRight3D2805087A
- 4Clos PlatRight3D2805088
- 4Clos PlatLeft3D1805087B
- 5Water Box 3D0805277B
- 5BReinforceRight3D2806269B
- 5BReinforceLeft3D1806269F
- 5CReinforceRight3D2806270B
- 5CReinforceLeft3D1806270F
- 6BBolt N90949402
- 7Valve 3D0805271
- 7AClip 4D0805469B
- 8PlateRight3D0805304G
- 8PlateLeft3D0805303G
- 9Estension 3D0806380F
- 10PlateLeft3D1805116
- 10PlateRight3D2805115
- 10PlateRight3D2805116
- 10PlateLeft3D1805115
- 11Wheel HousingLeft3D1806506C
- 11Wheel HousingRight3D2806505
- 11Wheel HousingRight3D2806506
- 11Wheel HousingLeft3D1806505C
- 12ReinforceRight3D0805206B
- 12ReinforceLeft3D0805205B
- 14Clos ElementRight3D0806358A
- 14Clos ElementLeft3D0806357A
- 14ABolt N10063205
- 16Rip PlateRight3D0805812E
- 16Rip PlateLeft3D0805811E
- 17ReinforceRight3D0805454A
- 17ReinforceLeft3D0805453A
- 18SupportRight3D0805678D
- 18SupportLeft3D0805677D
- 20Carrier 3D0805588E
- 21Cover 3D0805983D
- 22APart N90657701
- 23Bolt N90816301
- 25R BracketRight3D5805658A
- 25R BracketLeft3D5805657
- 30SupportRight3D0805072D
- 30SupportLeft3D0805071D
- 35Frame 4D0000294A
Diagrams & fitment data powered by oemdiagrams.com
WHT001136 Volkswagen Hex Socket Head Bolt | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
