WHT001321 Guide Pin
€0.64 excl. VAT
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

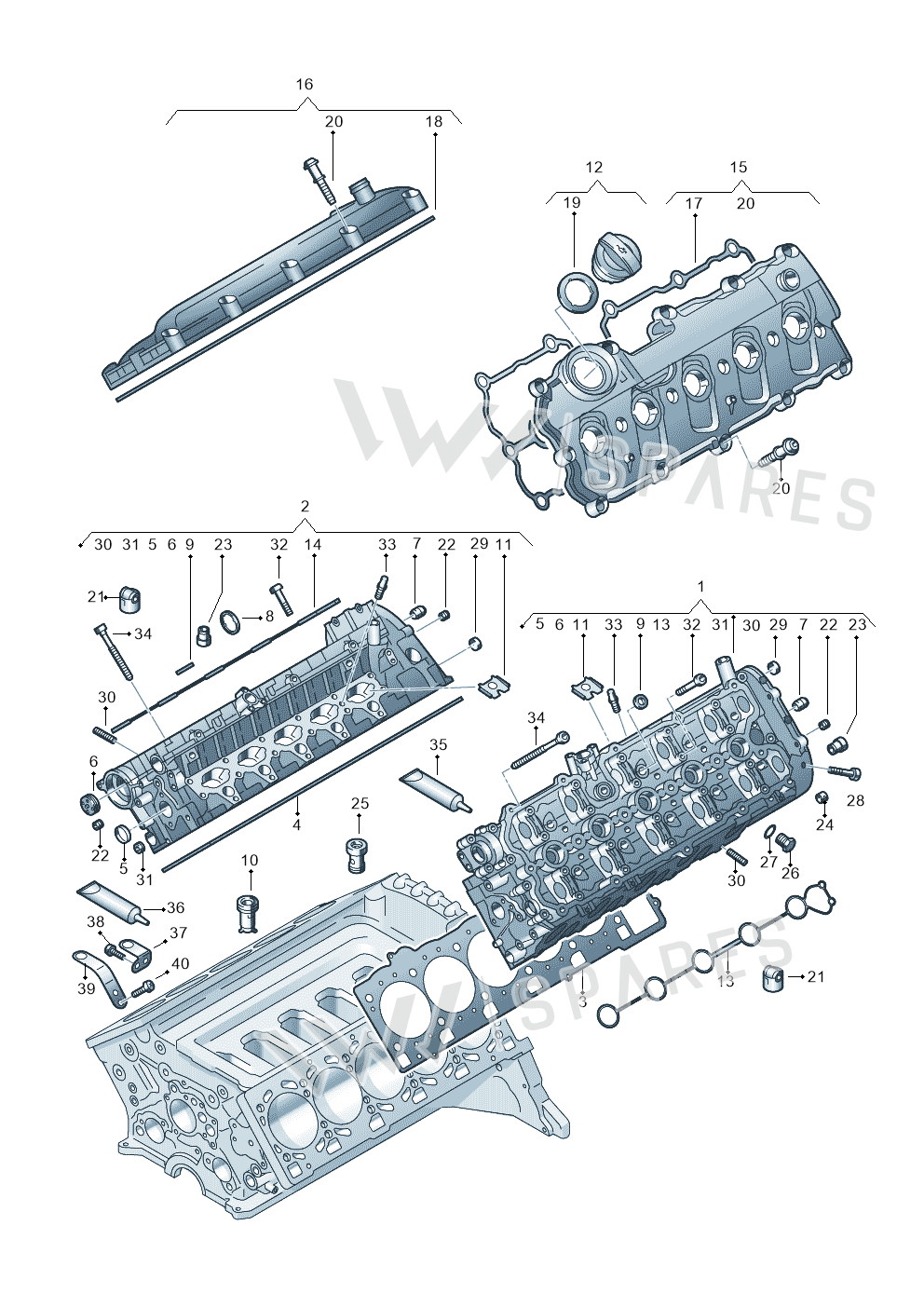

4 vehiclesGuide Pin — locate Guide Pin in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly34
- 1Cylinder HeadLeft07L103903AX
- 2Cylinder HeadRight07L103904AX
- 2Cylinder HeadRight07L103064L
- 3SealLeft07L103383N
- 4SealRight07L103383P
- 5Cover 036103113A
- 6Cover 06B103113C
- 7Valve 06E103175B
- 8Seal Ring 07L103121M
- 9Washer 06D103377
- 10Valve 079103175C
- 11Partition 079103411H
- 12Cover 079103485A
- 13SealLeft07L103649A
- 14SealRight07L103650A
- 15CoverLeft07L103471Q
- 16CoverRight07L103472D
- 17SealLeft07L103483F
- 17SealLeft07L103483J
- 18SealRight07L103484F
- 19Seal 06A103483D
- 20Bolt 06B103831J
- 22Bungs 07L109291
- 25Vent 079115540A
- 26Screw N0160293
- 27Seal Ring N0138326
- 28Screw N10470705
- 29Cover N0119078
- 30Bolt N0145555
- 31Screw N0294542
- 32Bolt N91127602
- 34Screw WHT001017
- 35Seal D176501A1
- 36Locking D154000A1
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6 2.7 TDI | 2008-2011 | 33, 27 | 2 | D75 |
| Audi A8/S8/qu. lang 08> | 2007- | 33, 27 | 2 | D5W |
| Audi A6/S6/Avant/qu. 05> | 2004- | 33, 27 | 2 | D75 |
| Audi A8/S8/qu. lang | 2003-2007 | 33, 27 | 2 | D5W |
Diagrams & fitment data powered by oemdiagrams.com
Guide Pin is fitted on: Audi A6 2.7 TDI 2008-2011; Audi A8/S8/qu. lang 08> 2007-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007.
