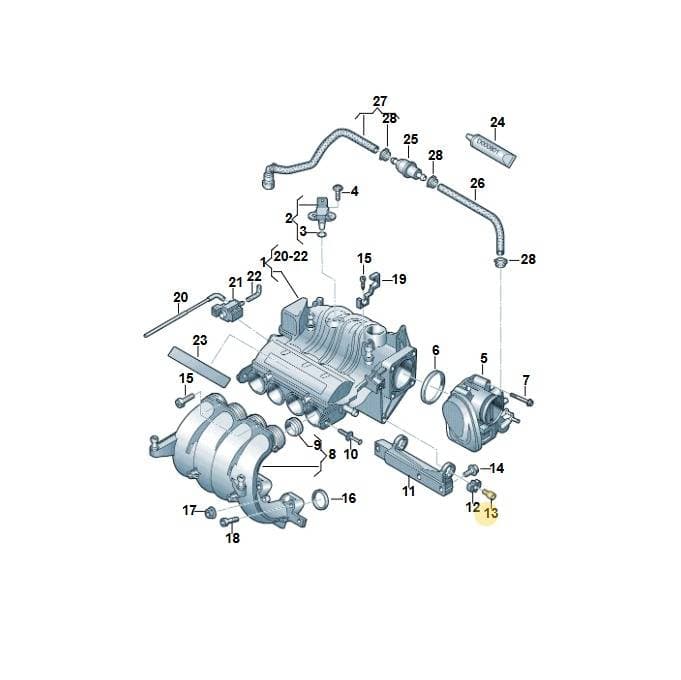

Number 13 marks the part’s position in the exploded view.

Product overview

Genuine OEM Volkswagen locating bolt, part number WHT001817. This bolt is used to precisely position and align components during assembly. It ensures accurate component placement for optimal function. Its precise manufacturing guarantees reliable component alignment.

Catalogue entry: BOLT 8X16,5 ×2.

Fitted with: 06A129723Q SUPPORT, 06A129763 RUBB. BUSH, N10242602 SCREW.

Technical details

Category
Fuel System
Country of origin
Germany
Customs (HS) code
73181588
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
2.8 × 1 × 1 cm
Shipping weight
0.01 kg

Specifications

As recorded in the manufacturer’s parts catalogue for this part number.

Dimensions
8x16.5

Why buy from WW Spares?

  • ✓ Genuine OEM inventory sourced directly from factory networks
  • ✓ Fitment support from workshop-seasoned parts specialists
  • ✓ Global logistics with customs-ready documentation

Need help confirming compatibility? Talk to a specialist

Parts diagram & fitment

42 vehicles

Locating Bolt — locate WHT001817 Volkswagen Locating Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly24
Vehicle fitment table44

Europe (34)

VehicleYearsPos.QtyRemarkPR
Altea XL Reference2013-2013132
Golf Plus2011-2014132
Golf2011-2013132
Caddy Maxi Kombi2010-2015132
Altea XL Reference2010-2013132
Leon Stylance2010-2012132T53
golf estate2009-2013132
Golf Plus 1.62009-2011132
Audi A3 Sportback2008-2013132T53
octavia ambiente2008-2013132
golf 2.02008-2011132
passat estate2008-2011132
caddy panel van2008-2010112
Touran 1.92008-2010132
GOLF VARIANT 07>2007-132MW6
GOLF PLUS 08>2007-132
Passat/4Motion 082007-132
Audi A3/S3/Sportb./qu. 082007-132T53
Audi A3 Cab. 2.0 TDI2007-2013132T53
TOURAN2006-132
ALTEA 07>2006-122T53
GOLF PLUS 05>2005-132
LEON 06>2005-132
Passat/4Motion2005-2007132
Audi A3/S3/quattro2005-200711, 13
TOURAN2005-2006132
CADDY2004-112BSE,BSF
TOLEDO 05>2004-11, 13
OCTAVIA/COMBI/4X4 04>2004-112BSE,BSF,CCSA
ALTEA2004-2006132
Jetta/Wagon2002-20061716,
TOLEDO/LEON/LEON-42001-2006172MW6
OCTAVIA/COMBI/4X4 01>2000-17, 156A
AUDI A3/S3/QUATTRO2000-2003172

Other markets (8)

VehicleYearsPos.QtyRemarkPR
bora2008-2016112TC2
Golf/Rabbit 08>2007-132
BORA-FAW "CN" 06>2005-112
Golf/Rabbit2005-2007132
Golf 'R32' n. "USA"2004-2004176A
POLO CLASSIC "CN"03>062003-200617
POLO CLASSIC (AUS) "CN"03>062003-200617
POLO "CN"02>062002-200617

Listed without a diagram position (2)

VehicleYearsPos.QtyRemarkPR
TOURAN2003-2005X
GOLF2003-2005X
