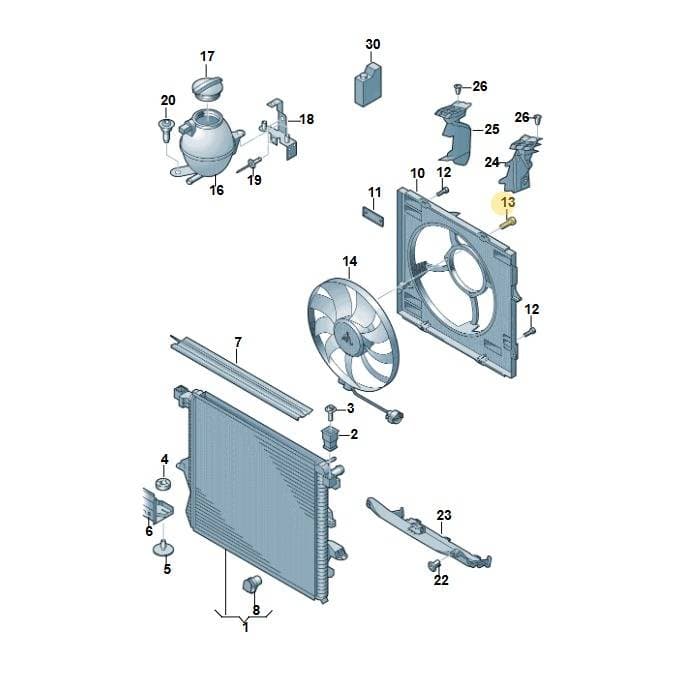

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Flat Head Bolt, part number WHT002435. This bolt is used to fasten components in assemblies such as the bonnet, piston assembly, or door lock mechanisms. It is located at position 13 in the diagram. The flat head design allows for a flush finish when installed. Genuine OEM flat head bolts provide the correct thread pitch and material strength for secure and reliable fastening.
Catalogue entry: BOLT M5X20 ×3.
Fitted with: 2H0121207C FAN RING, 2H0121207G FAN RING, N90840103 BOLT.
Technical details
- Category
- Engine Cooling
- Country of origin
- Germany
- Customs (HS) code
- 73181568
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.3 × 1.1 × 1.1 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M5x20 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
58 vehiclesBolt — locate WHT002435 Volkswagen Flat Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly23
- 1Radiator 2H0121253A
- 2Rubber Bush 7H0121276C
- 3Bolt N90808201
- 4Rubber Bush 7H0121275B
- 5Bolt N91056001
- 7Seal 2H0121345
- 10Fan Ring 2H0121207C
- 10Fan Ring 2H0121207G
- 11Blind 7E0121223
- 12Bolt N90840103
- 16Tank 2H0121407D
- 17Cover 3B0121321
- 18Bracket 2H0121079
- 19Pop Rivet N90812302
- 20Socket 2H0145830A
- 22Clip 701867299
- 23Air Guide 2H0121333C
- 30Coolant G12E050A2
- 30Coolant G12E050A8
- 30Coolant G12E050A9
- 30Coolant G12E100A8
- 30Coolant G12E100A9
- 30Coolant G12E100R2
Vehicle fitment table59
Europe (56)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Amarok twin cab | 2022- | 13 | 3 | ||
| transport. multivan | 2019-2024 | 5 | |||
| Amarok twin cab | 2016-2022 | 13 | 3 | PR | :1D |
| caddy kombi | 2015-2020 | 12 | 3 | ||
| jetta | 2014-2017 | 12 | 3 | 5C0 | |
| Yeti | 2013-2017 | 12 | 1 | 9AA | |
| Altea XL Reference | 2013-2013 | 12, 10 | 1 | ||
| Rapid | 2012-2022 | 12 | 1 | TW0 | |
| Amarok twin cab | 2012-2016 | 13, 2 | 3 | ||
| Toledo Reference | 2012-2015 | 12 | 1 | TW0 | |
| Tiguan 4Motion | 2011-2018 | 12, 8 | 3 | TF0 | |
| new beetle | 2011-2016 | 12 | 1 | 8Z | |
| new beetle cabriolet | 2011-2016 | 12 | 1 | ||
| Golf Cabriolet | 2011-2016 | 12 | 1 | TW0 | |
| transp. caravelle | 2011-2015 | 2 | 3 | ||
| transp. dropside | 2011-2015 | 2 | 3 | ||
| California Camper | 2011-2015 | 2 | 3 | ||
| Golf Plus | 2011-2014 | 12, 6 | |||
| Golf | 2011-2013 | 12, 10 | 1 | ||
| Sharan Blue Motion | 2010-2015 | 4, 5 | 3 | CAVA,CNWB, | |
| Caddy Maxi Kombi | 2010-2015 | 12 | 3 | ||
| Touran 2.0 | 2010-2015 | 12 | 3 | ||
| Roomster | 2010-2015 | 12 | 1 | TW0 | |
| jetta | 2010-2014 | 12 | 3 | 5C0 | |
| Fabia Scout | 2010-2014 | 12 | 1 | TW0 | |
| Altea XL Reference | 2010-2013 | 12, 10 | 1 | TW0 | |
| Alhambra Stylance | 2010-2013 | 4 | 3 | CAVA | |
| Leon Stylance | 2010-2012 | 12, 10 | 1 | TW0 | |
| golf estate | 2009-2013 | 12 | |||
| Yeti | 2009-2013 | 12 | 1 | TW0 | |
| Amarok twin cab | 2009-2012 | 13 | 3 | ||
| Golf Plus 1.6 | 2009-2011 | 12 | |||
| transp. caravelle | 2009-2011 | 2 | 3 | ||
| transp. dropside | 2009-2011 | 2 | 3 | ||
| California Camper | 2009-2011 | 2 | 3 | ||
| Jetta Vagon 08> | 2008- | 12 | 3 | T71 | |
| octavia ambiente | 2008-2013 | 12, 21 | 1 | DB0 | |
| Audi A3 Sportback | 2008-2013 | 12 | 1 | ||
| golf 2.0 | 2008-2011 | 12 | 1 | ||
| passat estate | 2008-2011 | 12, 10 | |||
| jetta | 2008-2011 | 12 | |||
| caddy panel van | 2008-2010 | 12, 6 | |||
| Touran 1.9 | 2008-2010 | 12 | 3 | TN2 | |
| GOLF VARIANT 07> | 2007- | 12 | 1 | BSE,BSF,BUD | D4W |
| GOLF PLUS 08> | 2007- | 12 | |||
| Passat/4Motion 08 | 2007- | 12, 10 | |||
| TIGUAN 08> | 2007- | 12 | 3 | TF0 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 10 | |||
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 12 | 1 | ||
| TOURAN | 2006- | 12 | |||
| ALTEA 07> | 2006- | 12 | 1 | TW0 | |
| GOLF PLUS 05> | 2005- | 12 | |||
| LEON 06> | 2005- | 12 | 1 | TW0 | |
| Audi A3/S3/quattro | 2005-2007 | 10 | |||
| TOURAN | 2005-2006 | 12 | |||
| CADDY | 2004- | 12 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 12, 8 | |||
| Golf/Rabbit | 2005-2007 | 12 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| JETTA 06> | 2006- | 3 |
