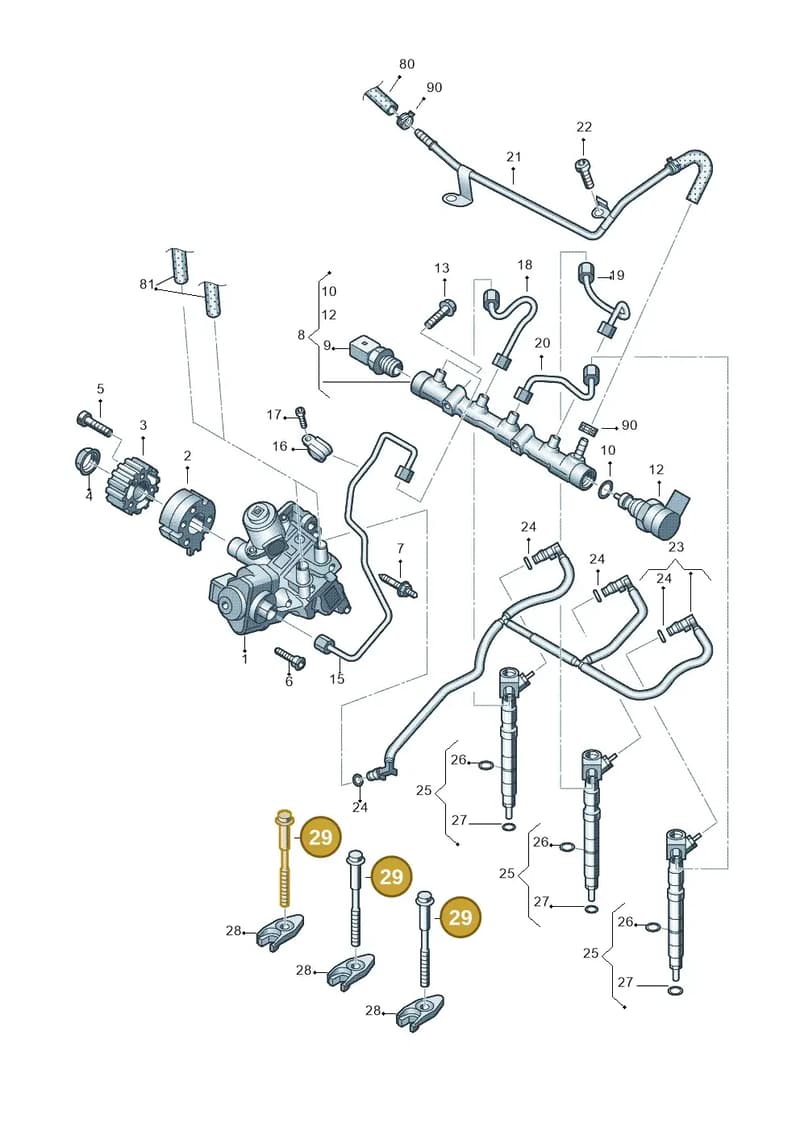

Number 29 marks the part’s position in the exploded view (SEAT Ibiza (2012-)).
Product overview
Genuine OEM Volkswagen Screw, part number WHT004710. Fits SEAT Ibiza (2012). Shown as position 29 in the engine diagram 677130300.
Catalogue entry: SCREW M6X105 ×3.
Fitted with: WHT005299 SEAL. RING, 03P130277 INJECTOR.
Technical details
- Category
- Fuel System
- Diagram sheet
- SEAT 677130300, position 29
- ETKA group
- 1 / 30 (130)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x105 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
11 vehiclesScrew — locate WHT004710 Volkswagen Screw in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly26
- 1Pump 03P130755
- 2Part 03L130238A
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N91176101
- 6Screw WHT002494
- 7Stud N90984401
- 8Rail 03P130089
- 9Sensor 03L906051
- 10Seal Ring N90451902
- 12Valve 057130764AB
- 13Bolt N91003601
- 15Pipe 03P130321
- 16Clamp N91171101
- 17Screw N10170303
- 18Pipe 03P130301
- 19Pipe 03P130302
- 20Pipe 03P130303
- 21Fuel Line 03P201360A
- 23Pipe 03P130235A
- 24Seal Ring WHT005299
- 25Injector 03P130277
- 26Seal Ring WHT000884
- 27Seal Ring 03P130519
- 28Plate 03P130216
- 90Clamp N90986501
Vehicle fitment table11
Europe (9)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Polo | 2012-2014 | 29 | 3 |
| Ibiza Reference | 2012-2012 | 29 | 3 |
| Ibiza Reference | 2011-2012 | 29 | 3 |
| Roomster | 2010-2015 | 29 | 3 |
| Fabia Scout | 2010-2014 | 29 | 3 |
| Polo | 2009-2014 | 29 | 3 |
| Fabia Ambiente | 2009-2013 | 29 | 3 |
| Polo | 2009-2012 | 29 | 3 |
| Ibiza Reference | 2008-2011 | 29 | 3 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Polo | 2014-2022 | 29 | 3 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 6Z3 platform | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
WHT004710 Volkswagen Screw is fitted on: Polo 2012-2014; Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Roomster 2010-2015; Fabia Scout 2010-2014; Polo 2009-2014; Fabia Ambiente 2009-2013; Polo 2009-2012; Ibiza Reference 2008-2011; Polo 2014-2022; 6Z3 platform.
