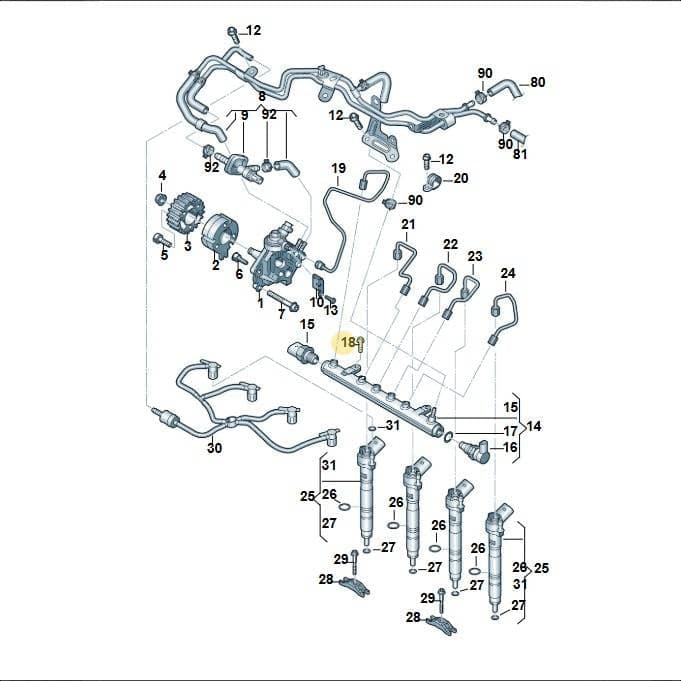

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Double Stud, part number WHT004863. This threaded fastener has two threaded ends, used to connect two components or provide a mounting point. It is located in the fuel system assembly. The part is made of metal. Genuine OEM double studs ensure precise thread engagement and material strength for reliable connections.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.9 × 1.9 × 13.3 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
5 vehiclesDouble Stud With Hexagon Drive — locate WHT004863 Volkswagen Double Stud | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Pump 03L130755J
- 2Part 03L130238A
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N91180301
- 6Screw WHT002494
- 7Screw N10714501
- 8Fuel Line 03L130308C
- 9Sensor 03L919824C
- 10Reinforcmt 03L130169
- 12Screw N10335205
- 13Bolt N01024126
- 14Rail 03L130089
- 15Sensor 03L906051
- 16Valve 057130764H
- 17Seal Ring N90451902
- 18Screw N91131601
- 19Pipe 03L130321L
- 20Clamp N91171101
- 21Pipe 03L130301AP
- 21Pipe 03L130301
- 22Pipe 03L130301R
- 23Pipe 03L130301B
- 24Pipe 03L130301C
- 25Injector 03L130855BX
- 25Injector 03L130277C
- 26Seal Ring WHT000884
- 27Seal Ring 059130519
- 28Clamp Piec 03L130216
- 29Screw WHT003187
- 30Pipe 03L130235D
- 31Seal Ring 059130119
- 90Clamp N90686701
- 92Clamp N90770201
Diagrams & fitment data powered by oemdiagrams.com
WHT004863 Volkswagen Double Stud | Fuel System is fitted on: transp. caravelle 2009-2011; transp. caravelle 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
