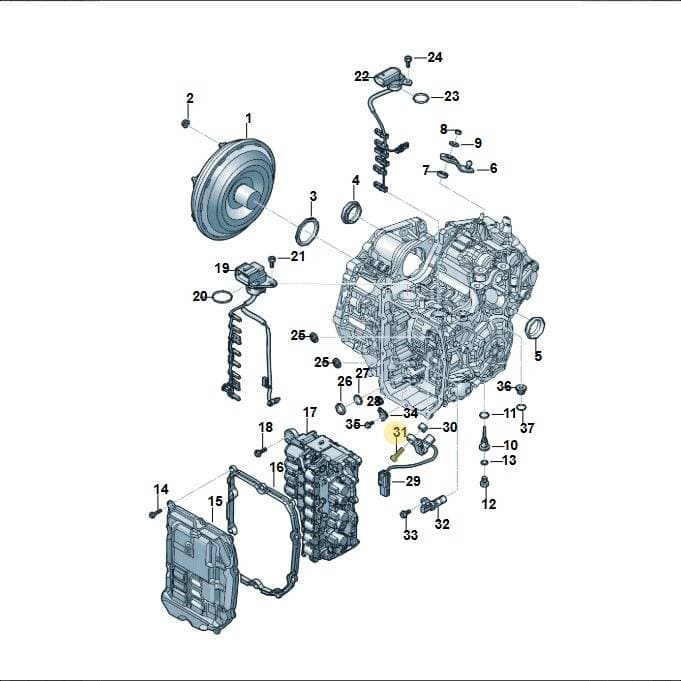

Number 31 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Head Bolt, part number WHT009002. This bolt is commonly used in conjunction with other parts for the 8-speed automatic gearbox or engine oil sump. It has a length of 0.022 meters and a width of 0.01 meters. Genuine OEM bolts provide the correct tensile strength and thread pitch, essential for reliable assembly of critical drivetrain components.
Catalogue entry: BOLT M6X1,0X19,8.
Fitted with: 09S927321A SENSOR.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 1 × 1 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x1.0x19.8 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
12 vehiclesHexagon Head Bolt (combi) — locate WHT009002 Volkswagen Hexagon Head Bolt | Transmission in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly34
- 1Converter 09S323571
- 2Part N10169201
- 3Seal Washer 09S321243
- 4Seal Washer 09S321243A
- 6Lever 09S321171
- 7Seal Washer 09D321199
- 8Part WHT000303
- 9Washer WHT000304
- 10Screw WHT009052
- 11Seal Ring WHT008960
- 12Bolt WHT008996
- 13Seal Ring WHT008961
- 14Bolt WHT009001
- 15Oil Sump 09S321361
- 16Seal 09S321370A
- 17Valve Body 09S325039
- 18Screw WHT008997
- 19Wir Harn 09S927363A
- 20Seal Ring WHT008967
- 21Bolt WHT000314
- 22Wir Harn 09S927363
- 23Seal Ring WHT008968
- 25Seal Ring 09S321381
- 26Seal Ring 09S321798
- 27Ring 09S321181A
- 28Seal Ring 09S321181
- 29Sensor 09S927321A
- 30Support Element 09S321795
- 32Sensor 09S927321
- 33Bolt WHT008568
- 34Clip 09S927421
- 35Screw WHT009000
- 36Screw WHT008998
- 37Seal Ring WHT008969
Vehicle fitment table12
Europe (8)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Leon style | 2019- | 31 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 31 | 1 |
| Octavia | 2019-2024 | 31 | 1 |
| Audi A3 Sportback | 2019-2021 | 31 | 1 |
| T-Roc BlueMotion | 2017-2024 | 31 | 1 |
| Karoq | 2017-2022 | 31 | 1 |
| Ateca Style | 2016- | 31 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 31 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Taos 1.4 | 2021-2023 | 31 | 1 |
| Taos 1.4 | 2020-2024 | 31 | 1 |
| Jetta 1.4 | 2017-2024 | 31 | 1 |
| POLO HATCH "ZA"06> | 2005- | 31 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
WHT009002 Volkswagen Hexagon Head Bolt | Transmission is fitted on: Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; T-Roc BlueMotion 2017-2024; Karoq 2017-2022; Ateca Style 2016-; Audi Q2 2.0 TDI 2016-2018; Taos 1.4 2021-2023; Taos 1.4 2020-2024; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
