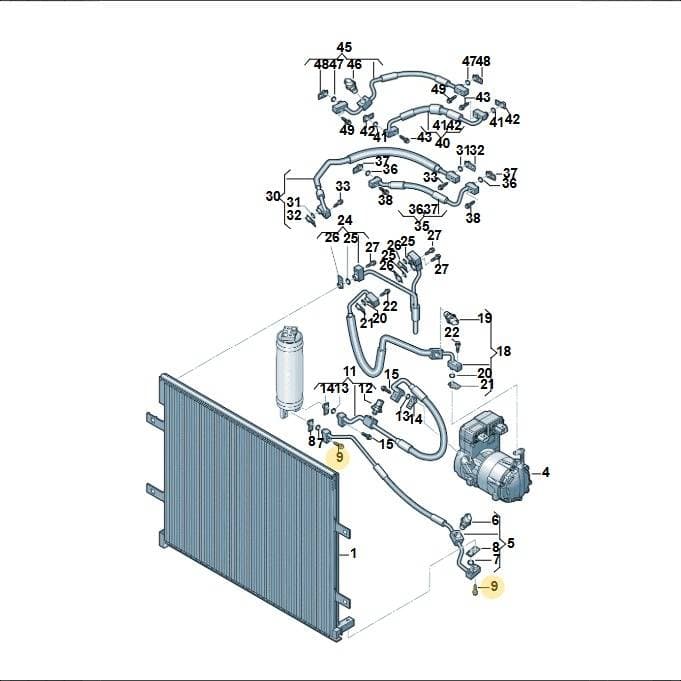

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Flange Screw, part number WHT009534. This fastener features a hexagonal head and an integrated flange, providing a wider bearing surface for secure fastening. It is used in various assembly applications. Genuine OEM screws ensure precise fitment and material integrity, crucial for maintaining the structural integrity of assemblies.
Catalogue entry: SCREW ×12.
Fitted with: 1EA816542 LINE, WHT009366 Bolt.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4 × 1.5 × 1.5 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesHexagon Flange Screw (combi) — locate WHT009534 Volkswagen Hexagon Flange Screw | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly30
- 1Gas Cooler 1EA816515A
- 1Gas Cooler 1EA816515B
- 5Line 1EA816530F
- 5Line 1EA816530J
- 5Line 1EA816530L
- 6Sensor 4N0959126H
- 6Sensor 4N0959126L
- 7Seal 1EA959895
- 8Seal 1EA959895A
- 9Bolt WHT009366
- 11Line 1EA816545G
- 11Line 1EA816545K
- 11Line 1EA816545M
- 12Sensor 4N0959126K
- 18Line 1EA816521F
- 18Line 1EA816521J
- 18Line 1EA816521L
- 19Sensor 4N0959126J
- 24Line 1EA816523F
- 24Line 1EA816523G
- 24Line 1EA816523J
- 30Line 1EA816524D
- 30Line 1EA816524E
- 35Line 1EA816533A
- 35Line 1EA816533C
- 40Line 1EA816541C
- 40Line 1EA816541D
- 45Line 1EA816534D
- 45Line 1EA816534E
- 45Line 1EA816534F
Vehicle fitment table13
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ID.7 Limousine Pro | 2023- | 9 | 2 | KK2 |
| eBoost CUPRA | 2021- | 9 | 2 | |
| Audi Q4 Sportback | 2021-2022 | 9 | 2 | |
| Enyaq | 2020- | 9 | 2 | |
| ID.4 Pro | 2020-2023 | 9 | 2 | |
| ID.3 Pro | 2019-2024 | 9 | 2 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Aero saloon | 2023- | 9 | 2 | |
| Audi Q4 Sportback | 2022- | 9 | 2 | |
| ID.6 X | 2021- | 9 | 2 | |
| ID.3 | 2021- | 9 | 2 | |
| Audi Q5 e-tron | 2021- | 9 | 2 | |
| ID.4 X | 2020- | 9 | 2 | |
| ID.4 | 2020- | 9 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
WHT009534 Volkswagen Hexagon Flange Screw | Genuine OEM is fitted on: ID.7 Limousine Pro 2023-; eBoost CUPRA 2021-; Audi Q4 Sportback 2021-2022; Enyaq 2020-; ID.4 Pro 2020-2023; ID.3 Pro 2019-2024; Aero saloon 2023-; Audi Q4 Sportback 2022-; ID.6 X 2021-; ID.3 2021-; Audi Q5 e-tron 2021-; ID.4 X 2020-; ID.4 2020-.
