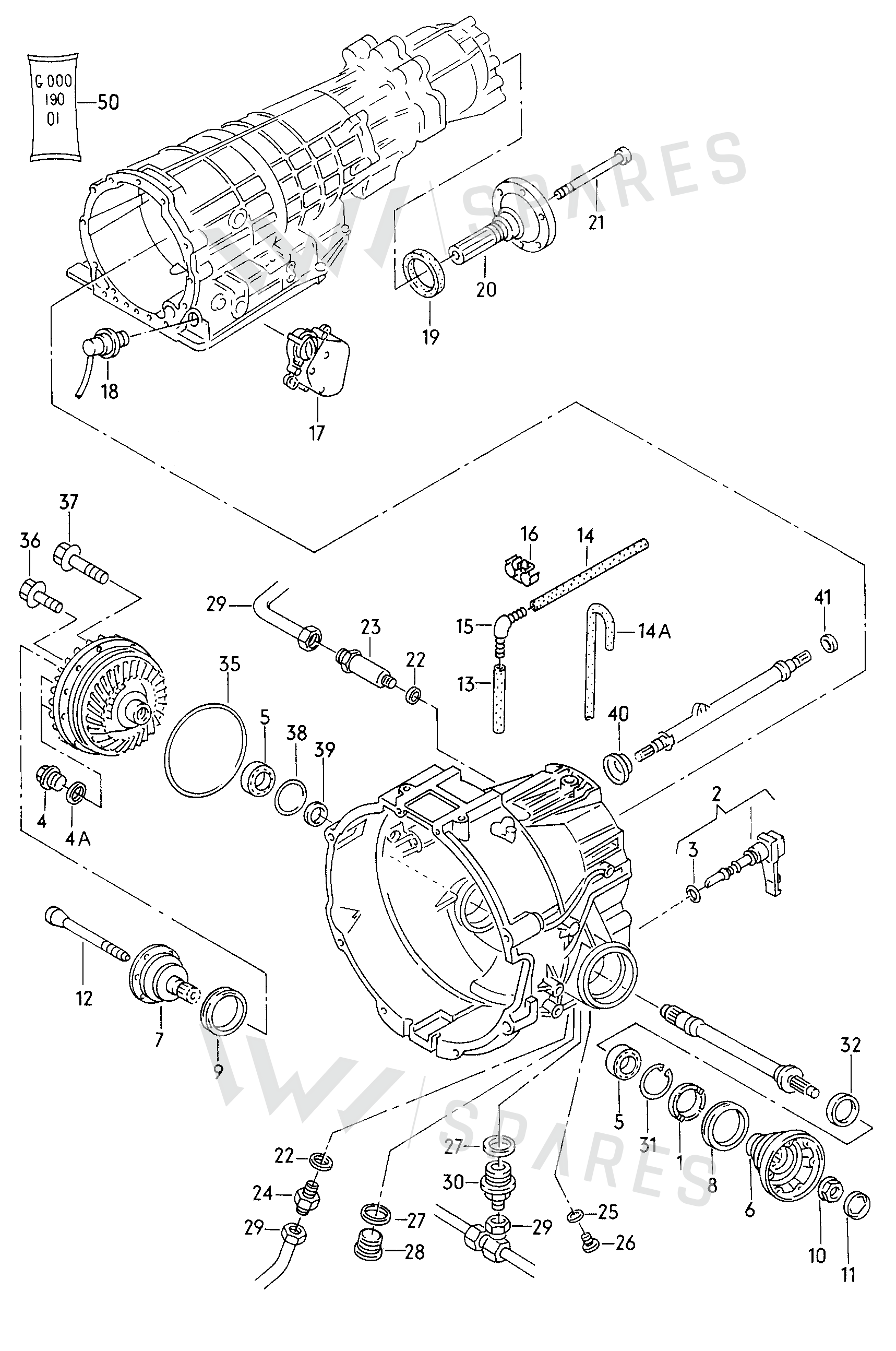

Shaft Oil Seal exploded parts diagram — Audi V8 · 1989-1993, position 8
Exploded view
Audi V8 · 1989-1993 · position 8Full diagram ↓
018409399A

018409399A Shaft Oil Seal

€18.21
incl. 21% VAT

€15.05 excl. VAT

Supersession roadoldest to newest
  1. 018409399AThis pageNot stocked
    Jan 2009
  2. 01L409399Current number
Current part number01L409399What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Shaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.

LThis part is the Left side

Parts in this assembly41
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyRemark
Audi V81989-199381AKD,ATU

Diagrams & fitment data powered by oemdiagrams.com

Shaft Oil Seal is fitted on: Audi V8 1989-1993.
