Product overview
Genuine OEM Volkswagen Exhaust Manifold, part number 028253031AL. This part is the exhaust manifold, which collects exhaust gases from multiple cylinders and directs them into a single pipe. It is located in the engine assembly. This part is made of metal. Genuine OEM exhaust manifolds are manufactured to precise specifications to ensure proper fitment and resistance to extreme heat and vibration.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 9.5 × 16.5 cm
- Shipping weight
- 3.8 kg

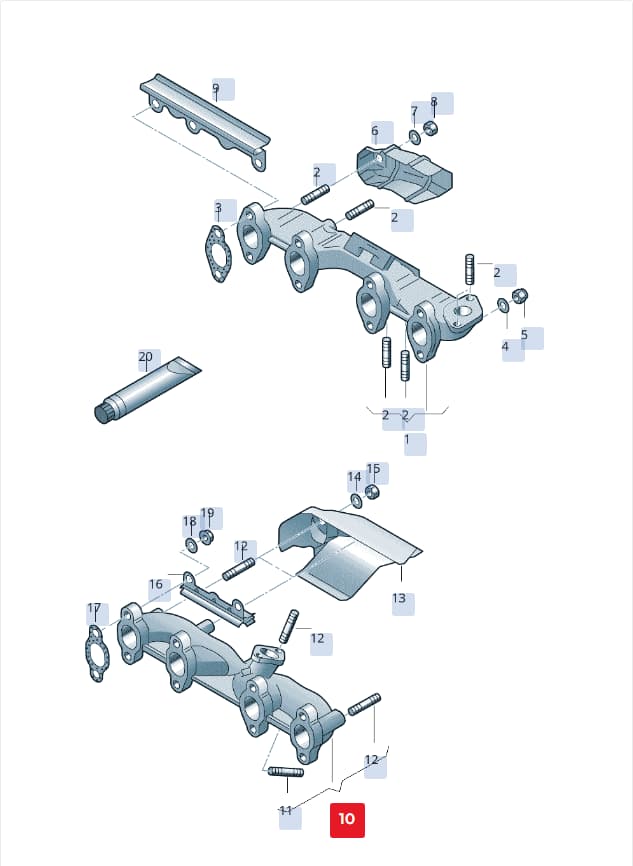

Parts diagram & fitment
2 vehiclesExhaust Manifolds — locate 028253031AL Volkswagen Exhaust Manifold | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 028253031AM — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(15)
- 1Manifold 028253031AE
- 2Bolt N0445093
- 2Bolt N0445113
- 3Seal 028129589B
- 4Washer N90095501
- 5Collar Nut N90200201
- 6Heat Sh 028129969
- 7Washer N01155813
- 8Ut Hexagon Nut Self-locking Hexagon Nut N90085001
- 9Support 044253048A
- 13Heat Sh 028129969C
- 13Heat Sh 038129969A
- 16Bracket 037253047
- 17Seal 037253039D
- 20Paste G052112A3
Diagrams & fitment data powered by oemdiagrams.com
028253031AL Volkswagen Exhaust Manifold | Genuine OEM is fitted on: SHARAN/SYNCRO 1995-2000; ALHAMBRA 1996-2000.
