Product overview

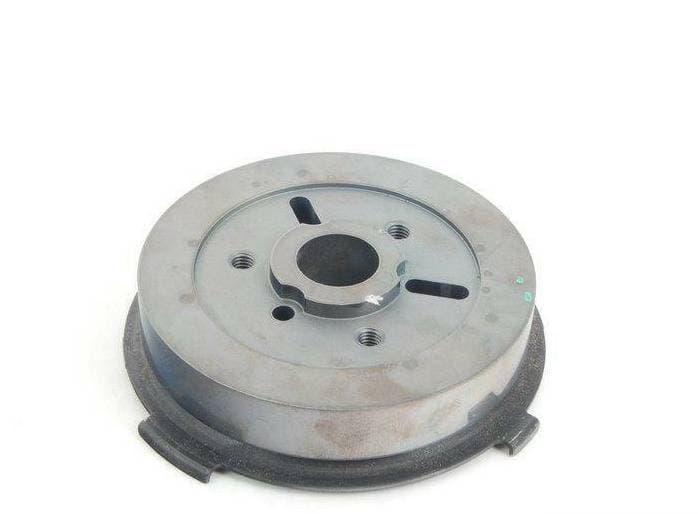

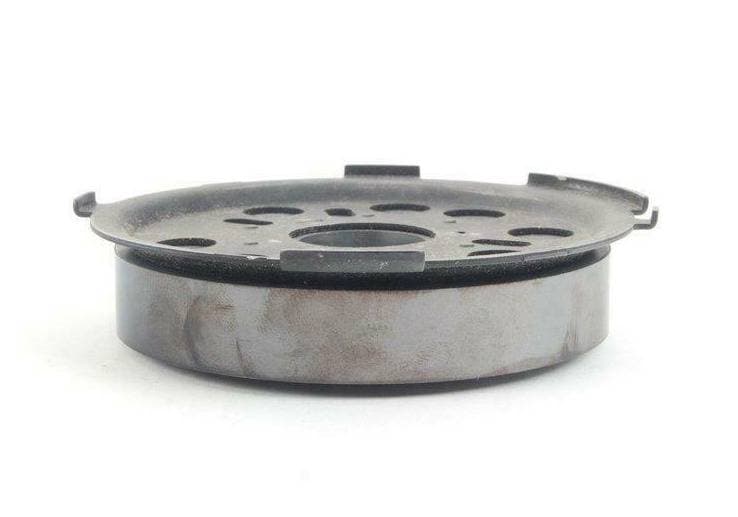

Genuine OEM Audi Camshaft Belt Disc Hub, part number 038109239L. This precision-engineered hub is a vital component in the engine's timing system, responsible for connecting the camshaft to the timing belt. It ensures the precise synchronization of camshaft rotation with the crankshaft. Weighing 1.474 kg and with a diameter of 0.135 m, this metal hub is manufactured to exact tolerances, which is critical for maintaining accurate engine timing and preventing severe engine damage.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84835080
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 13.5 × 13.5 × 3.3 cm
- Shipping weight
- 1.47 kg

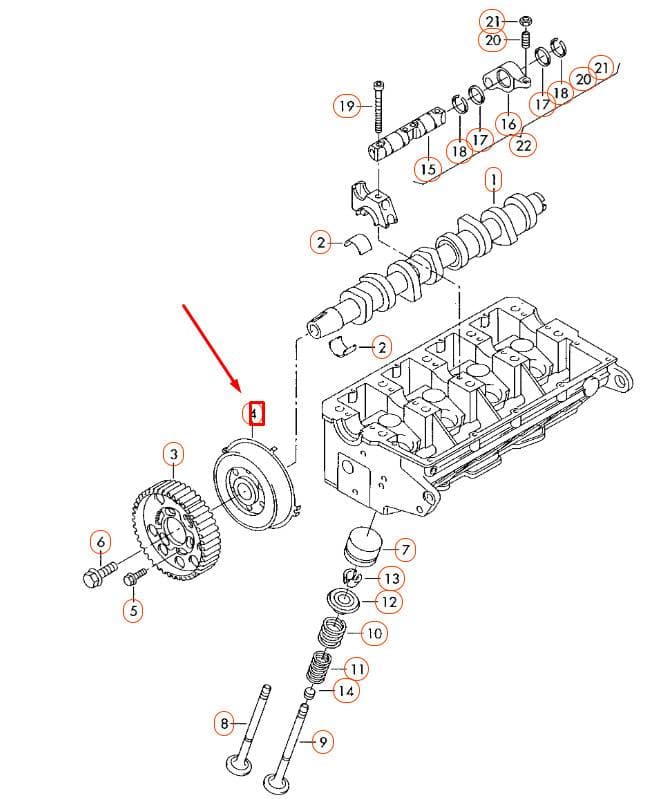

Parts diagram & fitment
56 vehiclesHub — locate 038109239L Audi Camshaft Belt Disc Hub | Timing Component in the official exploded view and explore the surrounding assembly.
Parts in this assembly(17)
- 1Camshaft 038109101AH
- 2Bearing 038103673B
- 3Pulley 038109111E
- 5Bolt N10109210
- 6Bolt N90502103
- 7Tappets 038109309C
- 8Valve 038109601E
- 9Valve 038109611E
- 10Spring 038109623F
- 11Spring 038109633
- 12Springseat 021109641C
- 13Cotter Pin 021109651
- 14Seal 027109675
- 19Bolt 038103714A
- 20Screw WHT000530
- 21Part N10412901
- 22Shaft 038109527AF
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
038109239L Audi Camshaft Belt Disc Hub | Timing Component is fitted on: DIES.-IND.-MOT.1,9>2,0 1990-2007; DIES.-IND.-MOT.1,9>2,0 08> 2007-; CADDY 2004-; Jetta "USA"05> 2005-; CAMPMOBILE(T5) 2004-2006; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; POLO 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; SHARAN/4MOTION 2005-; TOURAN 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; GOLF VARIANT 07> 2007-; TOURAN 2006-; Jetta Vagon 08> 2008-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; caddy panel van 2008-2010; Sharan 2008-2010; passat estate 2008-2011; Polo 2008-2009; Touran 1.9 2008-2010; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; jetta 2008-2011; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; ALHAMBRA/4MOTION 2005-; ALTEA 07> 2006-; Ibiza Reference 2008-2011; Alhambra 2006-2010; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; OCTAVIA/COMBI/4X4 04> 2004-; ROOMSTER 06> 2006-; superb comfort 2008-2013; octavia ambiente 2008-2013.
