Product overview

Genuine OEM Audi timing chain guide rail, part number 05A109517B. This rail is a vital component of the timing drive system, designed to guide the timing chain and maintain proper tension to prevent chain slap or skipping. It is manufactured from high-wear-resistant polymer to minimize friction and noise during high-speed engine operation. Genuine OEM guide rails are essential to ensure the correct material composition and structural integrity required to prevent catastrophic engine timing failure.

Technical details

Category
Belts, Chains & Tensioners
Customs (HS) code
87089997
Manufacturer
Audi
Product Type
Genuine new auto parts
Shipping size (L × W × H)
12.5 × 3.8 × 1.8 cm
Shipping weight
0.07 kg

Parts diagram & fitment

2 vehicles

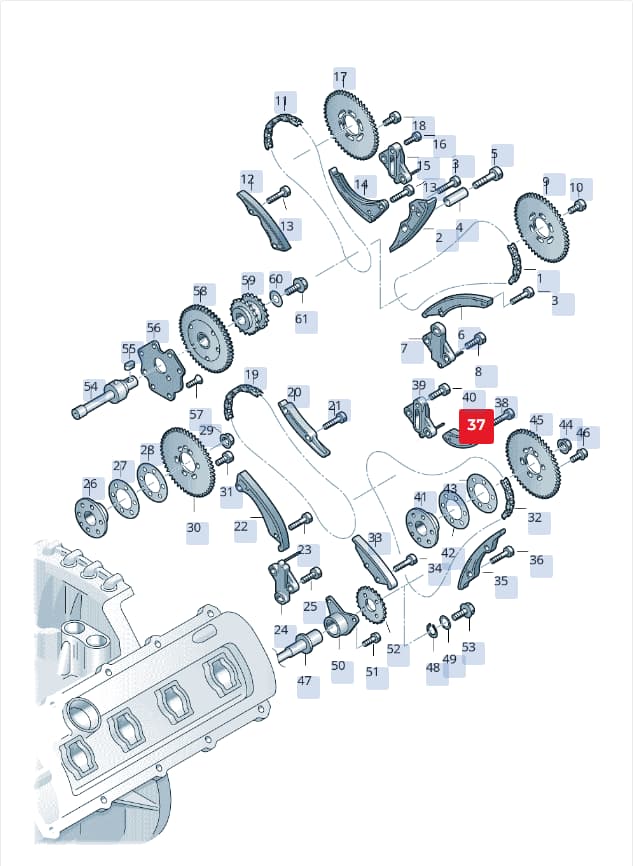

Guide Rail — locate 05A109517B Audi Timing Chain Guide Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.

Parts in this assembly(38)
  • 1Timing Cha 05A109229
  • 2Seatrunner 05A109201A
  • 3Screw WHT000265
  • 4Sleeve 05A103826
  • 5Screw N91162001
  • 6Rail 05A109508B
  • 7Tensioner 05A109217A
  • 8Bolt N91071701
  • 9Chn Sprckt 05A109571
  • 10Screw N91052201
  • 12Seatrunner 05A109203A
  • 14Rail 05A109509B
  • 15Tensioner 05A109255A
  • 19Timing Cha 05A109229A
  • 20Rail 05A109469A
  • 22Rail 05A109510B
  • 26Flange 05A130141A
  • 27Plate 05A127419
  • 28Plate 05A127419A
  • 29Collar Nut WHT002244
  • 30Chn Sprckt 05A109116
  • 33Seatrunner 05A109513A
  • 35Seatrunner 05A109514A
  • 47Shaft 05A109341
  • 48Press Spring 059109481
  • 49Ring N90015401
  • 50Bush 05A109226
  • 51Bolt N10124306
  • 52Chn Sprckt 05A109570
  • 53Bolt N10573001
  • 53Bolt N90893202
  • 54Shaft 05A109296
  • 55Part N10582801
  • 56Cover 05A109167A
  • 57Bolt N10456004
  • 58Wheel 05A109564B
  • 59Chn Sprckt 05A109077
  • 60Washer N90179704
Compatible / alternative parts(12)
  • Part 05A109229
  • Part 05A109201A
  • Part 05A109514A
  • Part 05A109203A
  • Part 05A109229A
  • Part 05A109255A
  • Part 05A109469A
  • Part 05A109510B
  • Part 05A109513A
  • Part 05A109217A
  • Part 05A109508B
  • Part 05A109509B

Diagrams & fitment data powered by oemdiagrams.com

05A109517B Audi Timing Chain Guide Rail | Genuine OEM is fitted on: Audi Q7 07> 2006-; Audi Q7 qu. 3.0 TDI 2009-2015.
