Product overview

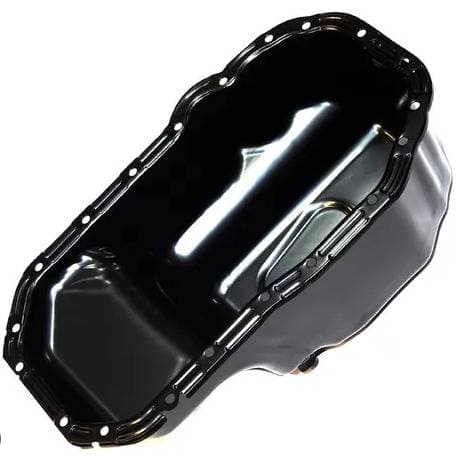

Genuine OEM Volkswagen Engine Oil Pan Sump, part number 03C103601BP. This essential component is located at the bottom of the engine, serving as a reservoir to collect and hold engine oil for the lubrication system. Weighing approximately 2.101 kg and measuring 0.42m in length, it is designed to withstand engine vibrations and temperature fluctuations. Using a genuine OEM oil pan ensures a perfect seal, preventing oil leaks and maintaining the engine's vital oil pressure and supply, which is crucial for engine health and longevity.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 24.5 × 15 cm
- Shipping weight
- 2.1 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

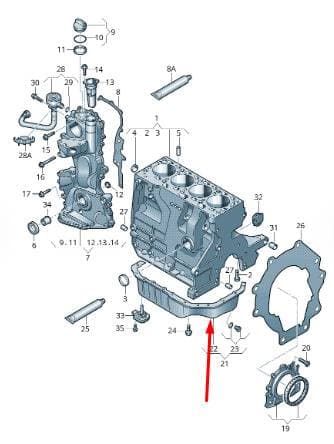

8 vehiclesEngine Oil Sump — locate 03C103601BP Volkswagen Engine Oil Pan Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Part 03C103011CD
- 2Bolt N91107801
- 3Cover 03C103113
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210BT
- 8Seal 03C109287G
- 9Cover 04E103485A
- 9Cover 04E103485B
- 10Seal 06A103483D
- 12Seal 03C109293
- 13Separator 03C103464D
- 14Bolt N10653201
- 15Screw N91096901
- 16Bolt N10655802
- 17Screw N90338204
- 19Flange 036103171B
- 20Screw N91099101
- 23Bolt N90813202
- 24Screw N10248003
- 25Seal D176600M1
- 26Spacer Pl 03C103551A
- 26Spacer Pl 03C103551L
- 27Part N0432072
- 28Valve 03C103201K
- 29Seal Ring N90613201
- 30Bolt N91089601
- 31Sleeve 022103139B
- 32Bracket 03C103733A
- 33Seal D176501A1
- 34Bush 03C105159H
Vehicle fitment table8
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Polo | 2012-2014 | 21 | 1 | CLPA,CLSA | |
| Fabia Ambiente | 2009-2013 | 21 | 1 | D3H |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Polo Vivo | 2017- | 21 | 1 | ||
| Polo 1.6 | 2015-2020 | 21 | 1 | ||
| Polo | 2014-2022 | 21 | 1 | ||
| Polo Vivo | 2014-2017 | 21 | 1 | ||
| Polo 1.6 | 2013-2022 | 21 | 1 | D3H | |
| Rapid Ambition | 2011-2021 | 21 | 1 | D3H |
Diagrams & fitment data powered by oemdiagrams.com
03C103601BP Volkswagen Engine Oil Pan Sump | Genuine OEM is fitted on: Polo 2012-2014; Fabia Ambiente 2009-2013; Polo Vivo 2017-; Polo 1.6 2015-2020; Polo 2014-2022; Polo Vivo 2014-2017; Polo 1.6 2013-2022; Rapid Ambition 2011-2021.
