Product overview

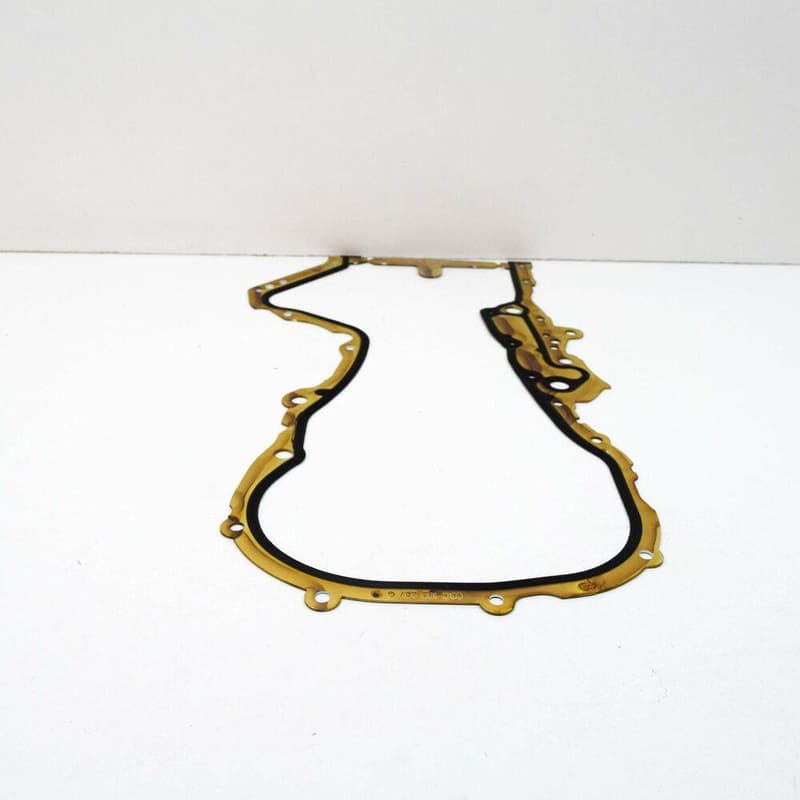

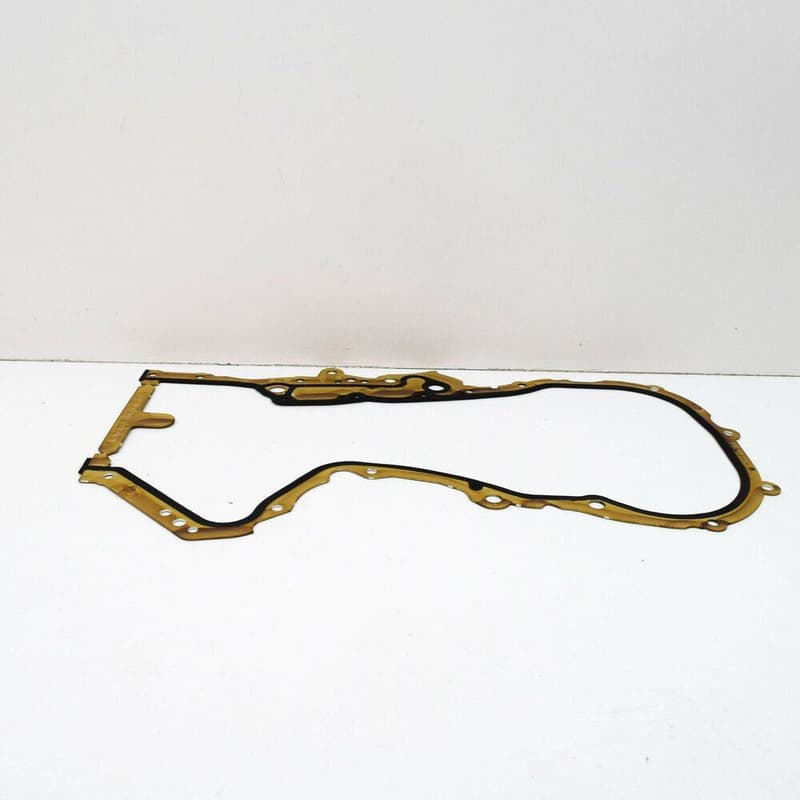

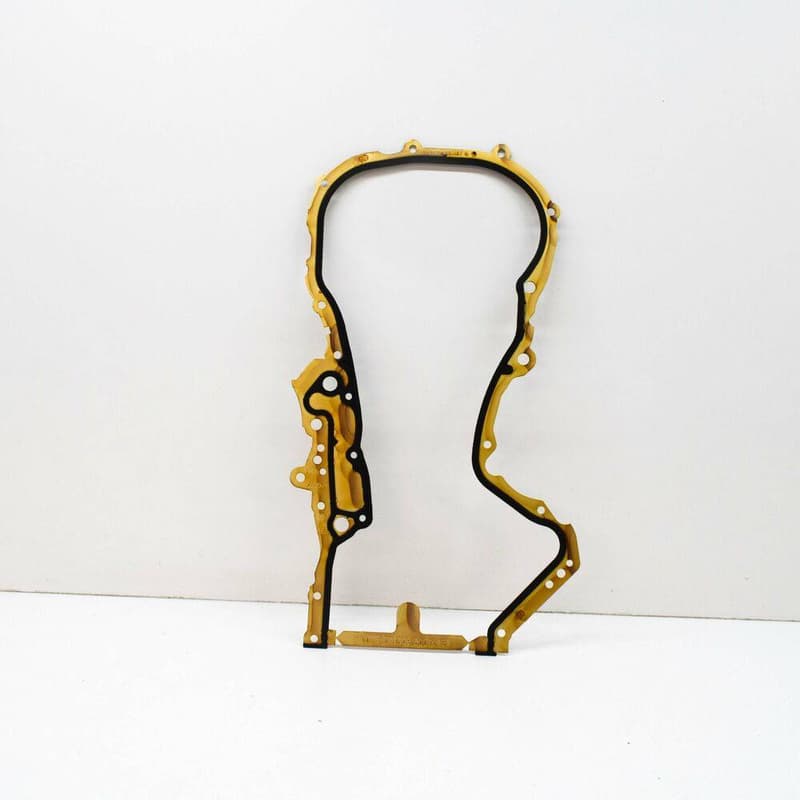

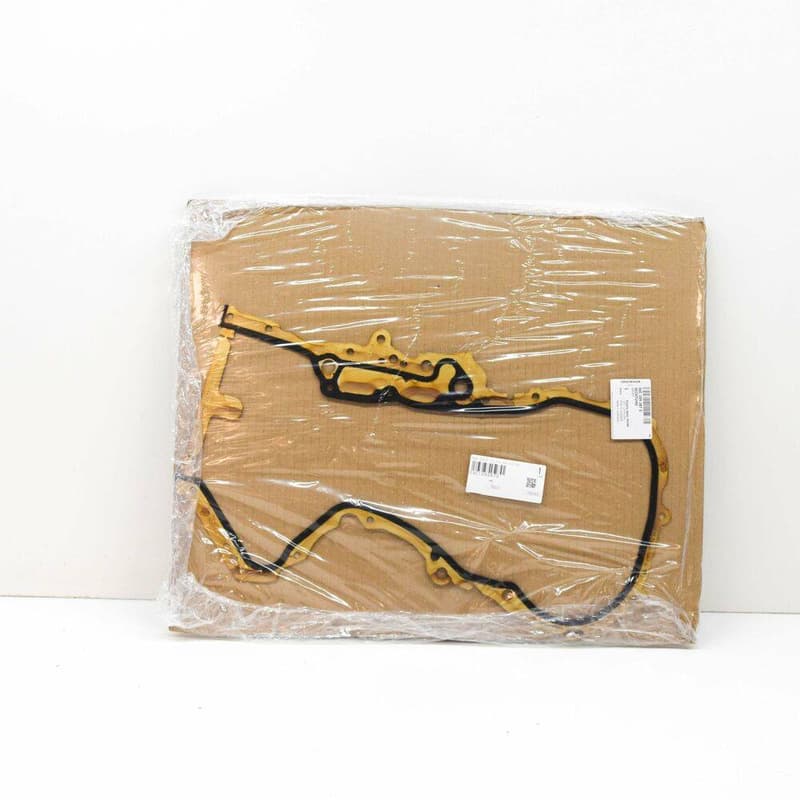

Genuine OEM Audi Control Housing Gasket Seal, part number 03C109287G. This precisely engineered gasket is designed to provide a tight, leak-free seal for a control housing, such as a timing chain cover or camshaft housing, within the engine assembly. Its complex shape ensures a perfect fit to prevent oil or fluid leaks and maintain internal pressure. Weighing 0.277 kg and measuring 0.485m x 0.285m x 0.002m, it is made from durable sealing material. Using a genuine OEM gasket ensures exact dimensions, material compatibility, and long-term sealing integrity, crucial for engine reliability.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Hungary
- Customs (HS) code
- 84841000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48.5 × 28.5 × 0.2 cm
- Shipping weight
- 0.28 kg
Parts diagram & fitment
70 vehiclesSeal — locate 03C109287G Audi Control Housing Gasket Seal | Engine in the official exploded view and explore the surrounding assembly.
Superseded by 034115147A — the later replacement part.
Parts in this assembly(29)
- 1Part 03C103101G
- 3Cover 036103113A
- 4Cover 03C103113
- 5Sleeve N90505001
- 6Seal 038103085E
- 7Case 03C109210R
- 8ASeal D176501A1
- 9Cover 06B103485C
- 10Seal 06A103483D
- 11Seal Ring 03C133287A
- 12Seal 03C109293
- 13Separator 03C103464A
- 14Bolt N90440701
- 15Screw N90500605
- 16Bolt N90712403
- 17Screw N10300804
- 19Flange 030103171L
- 20Bolt N90842402
- 22Oil Sump 03C103603S
- 22Oil Sump 03C103601SA
- 23Bolt N90813202
- 25Seal D176404A2
- 26Spacer Pl 036103551R
- 27Part N0432072
- 28Valve 03C103201D
- 29Seal Ring N90613201
- 30Screw N10423901
- 31Sleeve 022103139
- 32Bungs 030103037E
Compatible / alternative parts(12)
- Part 038103085
- Part 038103085E
- Part 038103085G
- Part 038103085Q
- Part 054115147B
- Part N91048601
- Part 058103598D
- Part N91048602
- Part 03C109282C
- Part AMV17400401
- Part AMV176501
- Part D174003A2
Diagrams & fitment data powered by oemdiagrams.com
03C109287G Audi Control Housing Gasket Seal | Engine is fitted on: POLO 2001-2005; JETTA 06> 2005-; EOS-Cabriolet-Coupe 2006-; Polo Vivo 2017-; POLO CLASSIC "ZA"05> 2005-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; TIGUAN 08> 2007-; Lavida 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; EOS 2.0 2008-2010; jetta 2008-2011; Polo 2009-2012; Polo 2009-2014; Polo 2010-2015; golf estate 2009-2013; Sharan Blue Motion 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; Polo Vivo 2010-2014; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Tiguan 4Motion 2011-2018; Golf 2011-2013; Golf Plus 2011-2014; Passat CC 2011-2016; Sagitar 2011-; Polo 2012-2014; Polo 1.6 2013-2022; jetta 2013-2014; Jetta 1.4 2013-2015; Polo Vivo 2014-2017; Scirocco 2.0 2014-2017; jetta 2014-2017; Polo 2014-2022; Beetle 2016-2019; new beetle cabriolet 2016-2019; Jetta 1.6 2014-2018; Polo 1.6 2015-2020; OCTAVIA/COMBI/4X4 04> 2004-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Fabia Scout 2010-2014; Roomster 2010-2015; Fabia Ambiente 2009-2013; Rapid Ambition 2011-2021; Rapid 2012-2022; superb 2013-2015; Yeti 2013-2017; Ibiza Reference 2008-2011; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013; Ibiza Reference 2011-2012; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Altea XL Reference 2013-2013; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; Audi A1 Sportback 2010-2015.
