Product overview
Genuine OEM Audi Bracket, part number 03H103777B. This bracket is designed to secure and position components within the engine assembly, specifically near the cylinder head area. It ensures that attached parts remain correctly oriented and vibration-free during engine operation. Genuine OEM parts are critical for engine assemblies to maintain the precise clearances and mounting geometry specified by the manufacturer.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 22 × 16 × 5 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment

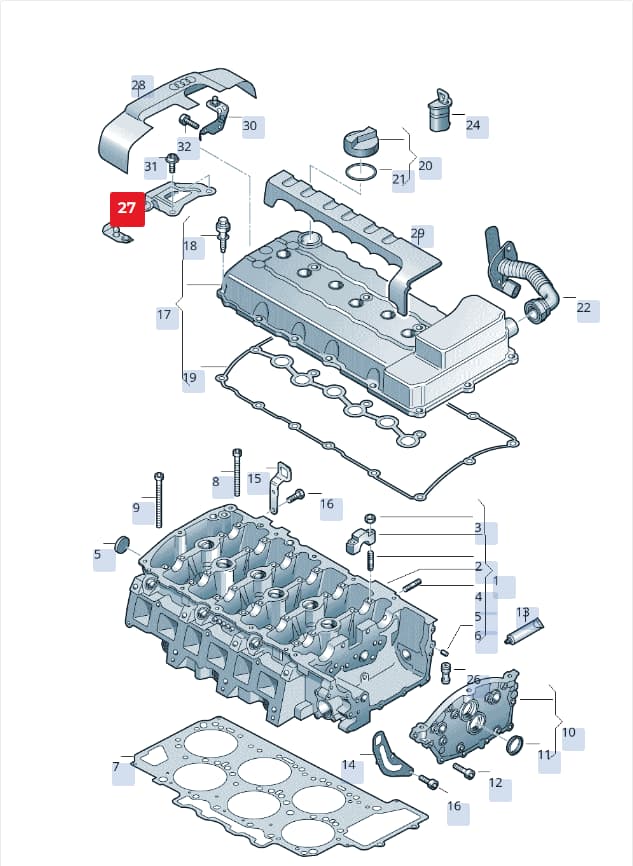

1 vehicleBracket — locate 03H103777B Audi Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(31)
- 1Cylinder Head 03H103063EX
- 1Cylinder Head 03H103063J
- 1Cylinder Head 03H103351A
- 2Bolt 030103397A
- 3Collar Nut N90279006
- 4Bolt N0444087
- 5Cover N90898202
- 6Part N90332701
- 7Seal 03H103383K
- 8Screw WHT000497A
- 9Screw WHT000789A
- 10Cover 03H109122G
- 11Seal 03H109091
- 12Bolt N10124408
- 13Seal D176501A1
- 14Retainer 03H103390E
- 15Retainer 022103392
- 16Screw N10638901
- 17Cover 03H103429D
- 18Bolt 03H103831
- 19Seal 03H103483E
- 20Cover 06B103485C
- 21Seal 06A103483D
- 22Hose 03H103202D
- 24Part 022103534A
- 26Bungs 07D103035E
- 28Cover 03H103925D
- 29Cover 03H103935A
- 30Bracket 03H103777A
- 31Bolt N91084402
- 32Bolt N91096701
Diagrams & fitment data powered by oemdiagrams.com
03H103777B Audi Bracket | Genuine OEM is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015.
