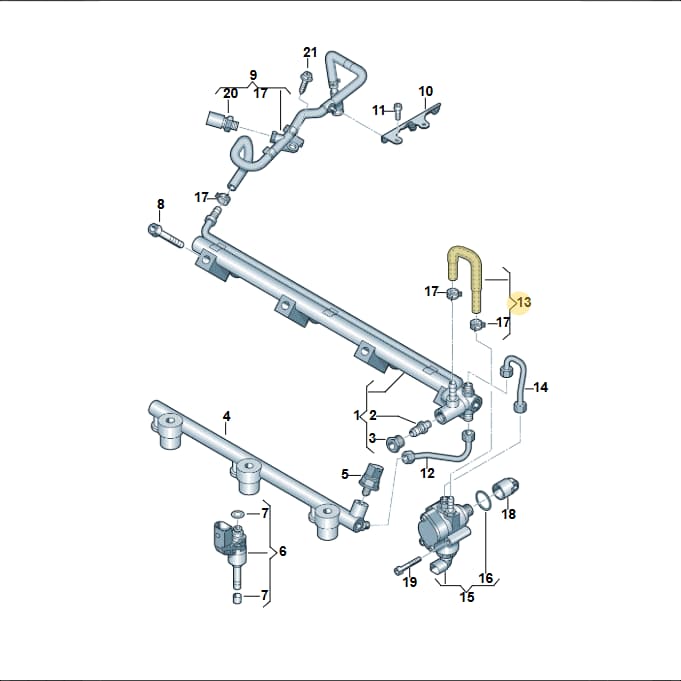

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Hose, part number 03H133322H. This hose is a critical component in the fuel system, ensuring proper fuel delivery. It is located within the fuel rail assembly. Made with high-quality materials for durability. Genuine OEM parts guarantee exact fit and performance, maintaining the integrity of the fuel system.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 13 × 7.5 × 2.5 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
2 vehiclesFuel Hose — locate 03H133322H Volkswagen Fuel Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Rail 03H133316AB
- 2Valve 03C103363H
- 3Screw WHT000435A
- 4Rail 03H133317S
- 5Sensor 06J906051C
- 5Sensor 06J906054L
- 6Valve 03H906036F
- 6Valve 03H906036Q
- 6Valve 03H906036R
- 6Valve 03H906036E
- 7Gask Set 03H198149A
- 7Gask Set 03H198149
- 8Screw N10741801
- 9Fuel Line 3QF133987C
- 9Fuel Line 3Q0133986J
- 10Bracket 03H133340D
- 11Bolt N91084402
- 12Fuel Line 03H133321J
- 14Fuel Line 03H133321L
- 14Fuel Line 03H133321G
- 15Pump 03H127025S
- 16Seal Ring WHT005184
- 17Clamp N90986501
- 17Clamp N91208604
- 18Tappets 03H127307A
- 19Bolt N10622101
- 20Sensor 06H906051K
- 21Bolt N10653201
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03H133322H Volkswagen Fuel Hose | Genuine OEM is fitted on: Atlas Cross Sport 2019-2023; Atlas 2016-2023.
