Target · Diagram
Find this reference above

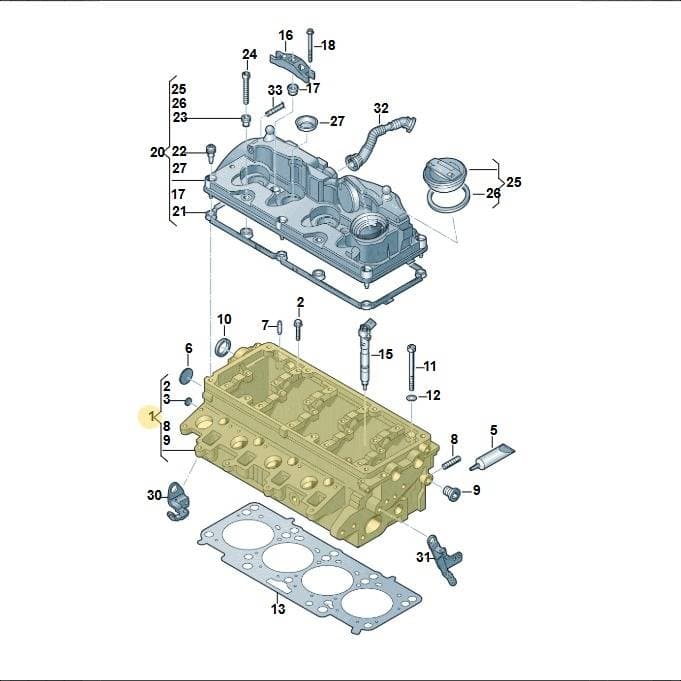

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Complete Cylinder Head, part number 03L103064. This cylinder head houses the valves, camshaft, and is critical for the combustion process. It is a key component for engine operation. This part weighs 22.315 kg. Genuine OEM cylinder heads are precision machined to ensure proper valve sealing, optimal combustion chamber volume, and correct camshaft alignment for reliable engine performance.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 47 × 26 × 22 cm
- Shipping weight
- 22.32 kg
Parts diagram & fitment
3 vehiclesComplete Cylinder Head — locate 03L103064 Volkswagen Complete Cylinder Head | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 2Bolt N10205604
- 3Cover N01191410
- 5Locking D000600A2
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131
- 12Washer N90115701
- 13Seal 03L103383CR
- 13Seal 03L103383CS
- 13Seal 03L103383DA
- 13Seal 03L103383DB
- 13Seal 03L103383CT
- 17Part 03L103487A
- 17Part 03L103487
- 20Cover 03L103469R
- 21Part 03L103483H
- 21Part 03L103483C
- 22Bolt 03L103831
- 23Sleeve 057103826
- 25Cover 06C103485P
- 27Part 03L103070A
- 27Part 04L103070B
- 32Pipe 03L103493AF
Diagrams & fitment data powered by oemdiagrams.com
03L103064 Volkswagen Complete Cylinder Head | Genuine OEM is fitted on: Polo 2014-2022; Ameo 1,0 2016-2020; Rapid Ambition 2011-2021.
