Product overview

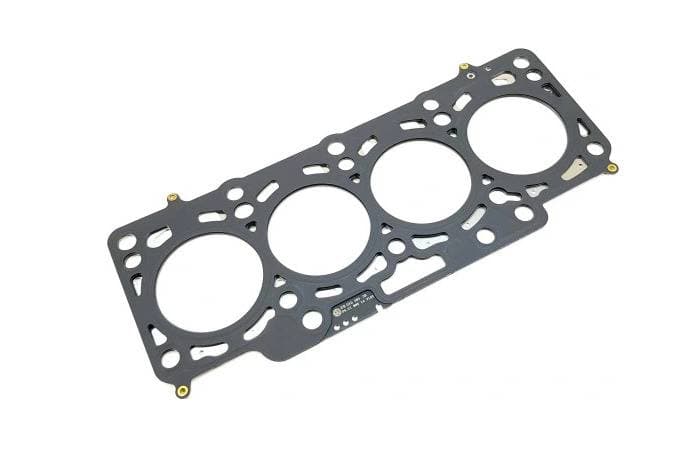

Genuine OEM Volkswagen Cylinder Head Gasket, part number 03L103383DB. This multi-layered steel (MLS) gasket is crucial for sealing the combustion chambers, coolant passages, and oil passages between the cylinder head and engine block. It measures approximately 0.38 meters in length and weighs 0.479 kg. Using a genuine OEM gasket ensures precise sealing, optimal compression, and resistance to high temperatures and pressures, which is fundamental for engine reliability and preventing fluid leaks.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38 × 16.5 × 0.5 cm
- Shipping weight
- 0.48 kg

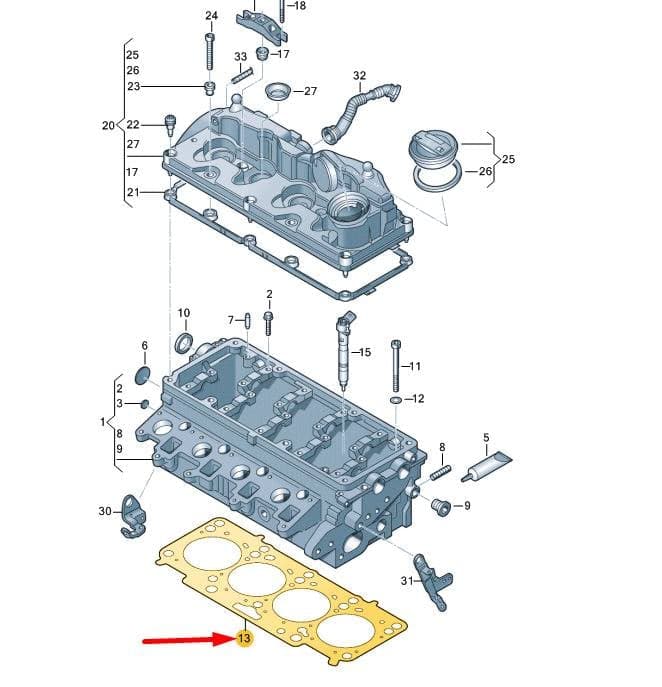

Parts diagram & fitment
3 vehiclesCylinder Head Gasket — locate 03L103383DB Volkswagen Cylinder Head Gasket | Engine Sealing in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Cylinder Head 03L103064
- 2Bolt N10205604
- 3Cover N01191410
- 5Locking D000600A2
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131
- 12Washer N90115701
- 13Seal 03L103383CR
- 13Seal 03L103383CS
- 13Seal 03L103383DA
- 13Seal 03L103383CT
- 17Part 03L103487A
- 17Part 03L103487
- 20Cover 03L103469R
- 21Part 03L103483H
- 21Part 03L103483C
- 22Bolt 03L103831
- 23Sleeve 057103826
- 25Cover 06C103485P
- 27Part 03L103070A
- 27Part 04L103070B
- 32Pipe 03L103493AF
Diagrams & fitment data powered by oemdiagrams.com
03L103383DB Volkswagen Cylinder Head Gasket | Engine Sealing is fitted on: Polo 2014-2022; Ameo 1,0 2016-2020; Rapid Ambition 2011-2021.
