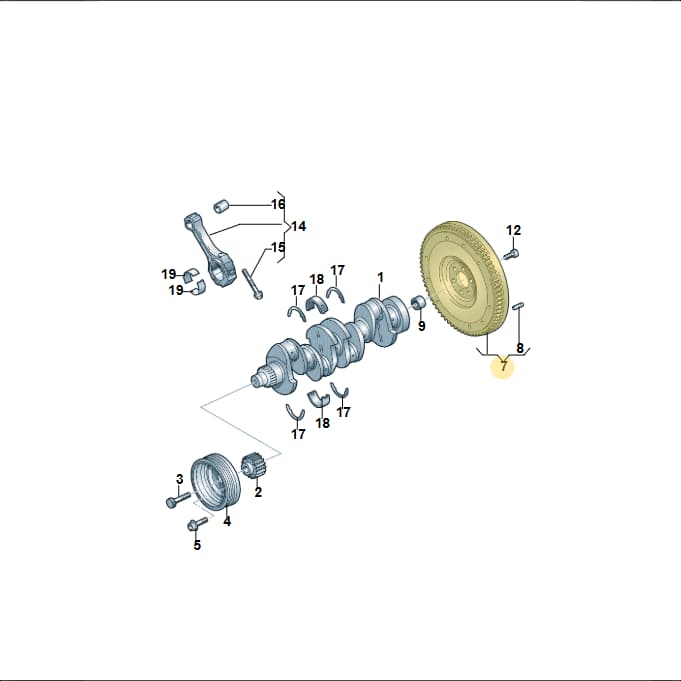

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Flywheel, part number 03L105269C. This flywheel connects the crankshaft to the transmission, providing a surface for the clutch to engage and helping to dampen engine vibrations. It is located at the rear of the crankshaft. This flywheel weighs 9.647 kg and has a diameter of 0.283 m. Genuine OEM flywheels are manufactured to exact specifications for proper balance and smooth operation, ensuring a reliable connection to the drivetrain.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84835020
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 28.3 × 28.3 × 5.5 cm
- Shipping weight
- 9.65 kg
Parts diagram & fitment
3 vehiclesFlywheel — locate 03L105269C Volkswagen Flywheel | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Crankshaft 03L105021A
- 1Crankshaft 03L105021F
- 2Pulley 03P105263A
- 3Bolt WHT005322
- 4Damper 038105243M
- 5Screw N91048804
- 7Flywheel 03L105266DP
- 7Flywheel 028105269B
- 8Part N10105801
- 9Bearing 06B105313D
- 12Bolt N90501402
- 12Bolt WHT009656
- 14Con Rod 03L105401A
- 14Con Rod 03L105401B
- 15Bolt 045105425
- 17Thrust Pla 026198421
- 18Brg Shell 038105591AC
- 18Brg Shell 03L105561
- 18Brg Shell 03L105591
- 18Brg Shell 038105561AB
- 19Bearing 03L105701E
- 19Bearing 04L105701
- 19Bearing 04L105701A
- 19Bearing 03L105701D
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L105269C Volkswagen Flywheel | Genuine OEM is fitted on: Polo 2014-2022; Ameo 1,0 2016-2020; Rapid Ambition 2011-2021.
