Product overview
Genuine OEM Volkswagen Fuel Rail, part number 03L130089AA. This component is responsible for distributing fuel under pressure to the engine's fuel injectors. It is a critical part of the fuel delivery system, ensuring each cylinder receives the correct amount of fuel. Manufactured to strict OEM standards for precise fuel metering and engine performance. Genuine OEM fuel rails are engineered for exact fitment and optimal fuel flow, ensuring reliable engine operation and longevity.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42.5 × 6.5 × 5 cm
- Shipping weight
- 2.3 kg
Parts diagram & fitment

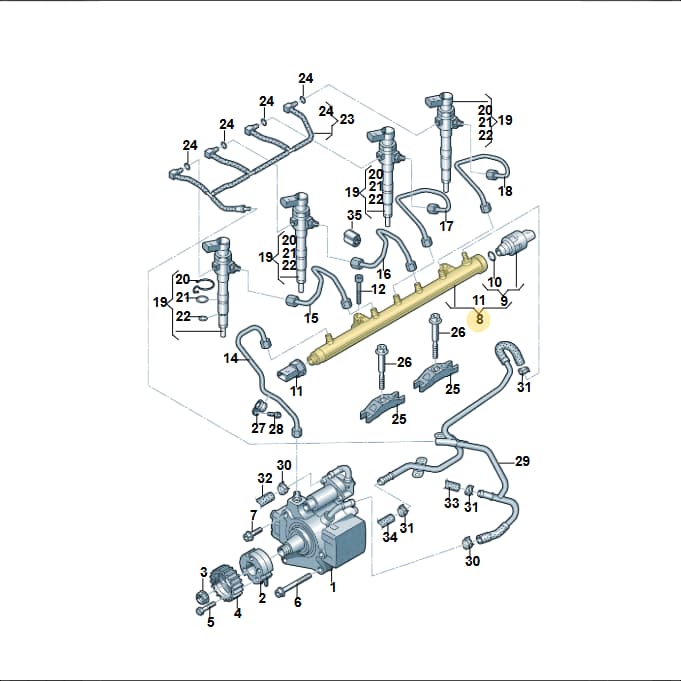

6 vehiclesFuel Rail — locate 03L130089AA Volkswagen Fuel Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Pump 03L130755AN
- 2Part 03L130238A
- 3Collar Nut WHT002244
- 4Pulley 03L130111E
- 5Screw N91180301
- 6Screw N10714501
- 7Screw WHT002494
- 9Valve 03L130764C
- 10Seal Ring WHT004740
- 11Sensor 03L906054A
- 12Screw N91131601
- 14Pipe 03L130321F
- 15Pipe 03L130301AM
- 17Pipe 03L130301F
- 19Injector 03L130277S
- 19Injector 03L130277SX
- 20Clip 03L130447
- 21Seal Ring WHT000884
- 22Seal Ring 03L130519
- 23Part 03L130235AG
- 24Part WHT006492
- 24Part WHT005301
- 25Clamp Piec 03L130216
- 26Screw WHT003187
- 27Clamp N91171101
- 28Screw N10170303
- 29Fuel Line 03L201360AB
- 30Clamp 4B0422379
- 31Clamp N90986501
- 35Damper 03L130118
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L130089AA Volkswagen Fuel Rail | Genuine OEM is fitted on: Polo 2009-2014; Passat saloon 2010-2015; Polo 2014-2022; Ameo 1,0 2016-2020; Audi A1 Sportback 2010-2015; Rapid Ambition 2011-2021.
